UWB 30m Detection Distance Life Detector 100m Wireless Transmission
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
|Minimum Order Quantity :||１ｓｅｔ||Price :||USD４０00/unit|
|Packaging Details :||ｓｕｉｔｃａｓｅ + carton box||Delivery Time :||30days|
|Payment Terms :||T/T||Supply Ability :||100sets/month|
|Place of Origin:||China||Brand Name:||TOPSKY|
|ｐｒｏｂｅ:||１||ＣＭＡＥＲＡ ａｎｇｌｅ:||３６０ ｄｅｇｒｅｅ|
|ｔｒａｎｓｍｉｔ ｄｉｓｔａｎｃｅ:||１００Ｍ||Ｆｒｅｑｕｅｎｃｙ ｒａｎｇｅ:||１－３０００ｈｚ|
|ｖｉｓｉｏｎ ｄｉｓｔａｎｃｅ:||６Ｍ||ＩＰ ｌｅｖｅｌ:||ＩＰ６７|
life sign detector,
life detector machine
V5 video life detector allows rescuers to see the trapped persons who were buried under the rubble, and interact with them.It has one rotating camera and an infrared camera and it can also be used even in dark environment.
V5 Video Life Detector is welcomed by rescue teams around the world.It can provide clear conversations and video. And the images and sound can be simultaneously transmitted to the rear of the command structure through the wireless receiver.
V5 is suitable for the rescue work ,especially in explosion by the earthquake, and the bombing of buildings (caused by gas or other accidence.)
1. It has passed the the National Fire Product Quality Supervision and Inspection Center.
2. Proprietary technology: The wireless data transmission technology can transmit the disaster scene images to relief headquarters .The wireless audio receiver ,16GB, can store and search the video.
3. The special camera can be rotated laterally seamless 360 °, detection perspective 360 °, vertical 270 °, effectively increasing the search range and accuracy (proprietary technology)
4. Equipped with two-way conversation function, the system can access third-party call and go on more people conversation.
5. Between probes (camera) and display (host) ,there is an flexible connection, so that it can make it move and rotate more convenient. It can increase the flexibility of the rescue work greatly.
6. Individually equipped with an IR waterproof camera (IP67),can be used in dark and water environment. The visual distance reaches to 6m.
7. 7 inch large LCD screen is the biggest size in the current video display device and rescue equipment. TFT technology ensures the clearest video display. Resolution: 768 × 512 pixels

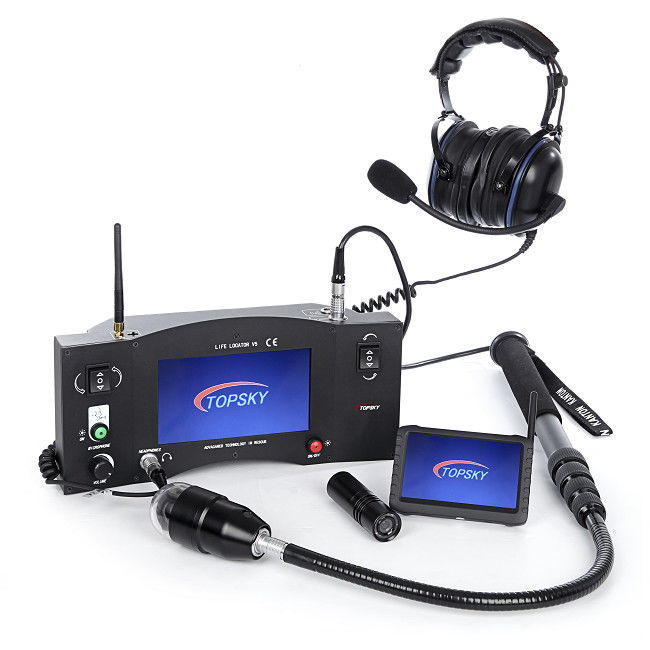

Host (Control Panel)
Transverse 360-degree rotating lens
Vertical 270-degree rotating lens
Waterproof infrared camera
Talk earphone, can talk with the rescue personnel
Wireless audio and video receiver, built-in 8G memory card can store search for videos.
|Screen size||7” large LCD ,TFT|
|Resolution||768 × 512 pixels|
|Battery life||More than 3h|
|Charging time||About 4h|
|AC voltage charger||220V|
|Operating Temperature||-30℃-- +60℃|
|Wireless video transmission receiver|
|Size||5” LCD Screen|
|Transmission distance||More than 50m|
|Battery||Rechargeable lithium batteries|
|Battery life one time||More than 3h|
|Colorful rotating camera|
|Size of screen||1/4“CCD,0.5 lux|
|Lens||f-2.0 mm, F-2.0|
|Light||8 infrared lights|
|Waterproof stage||IP 64|
|Waterproof infrared camera|
|Waterproof stage||IP 67|
|Rope||5m(20m,30m available )|
LED infrared camera *1
Waterproof IR Camera *1
Wireless audio and video receiver *1
Configuration waterproof and shockproof equipment box*1
