Ip68 Large Robot Chassis Max Payload 1500kg Explosion Proof Crawler
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
|Screen:||12inch High Light LCD Screen||Size:||967*646*750mm(inc PTZ)|
|Weight:||150KG||Image System:||360°panorama Image System|
|Wireless Control Distance:||500m||Wire Control Distance:||1000m|
counter surveillance equipment,
anti surveillance equipment

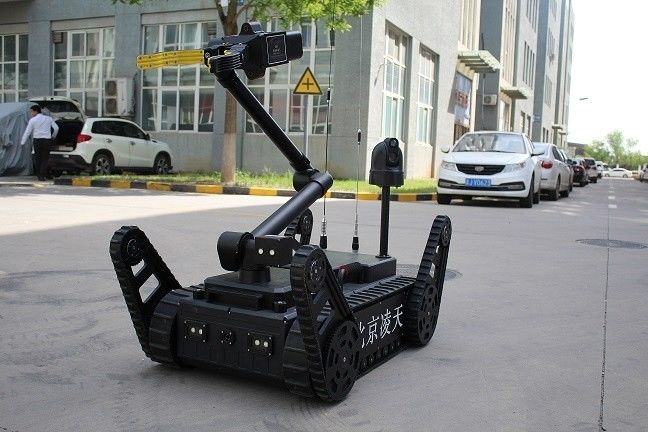

ER3-A EOD robot is used to deal with explosive related works, also can be used to reconnoiter
ER3-A EOD robot is mainly used to deal with explosive related works, also can be used to reconnoiter difficult to reach for human. High torque 6 DOF can achieve any angle of rotation, can snatch 20KG weight, arm load explosives destroyer, can operate field destruction of explosives; chassis with all terrain structure, can adapt to a variety of terrain rapid combat deployment.
ER3-A EOD robots can be used with a variety of accessories, including disruptor (eg22/ 27mm), X-rays (such as LT-Xi), remote detonation control systems for explosives etc
1,The manipulator can achieve 6 degrees of freedom rotation.
2. Equipped with an image system, 360 degrees of monitoring without dead angle, can observe the surrounding situation from time to time for the operator to control the robot;

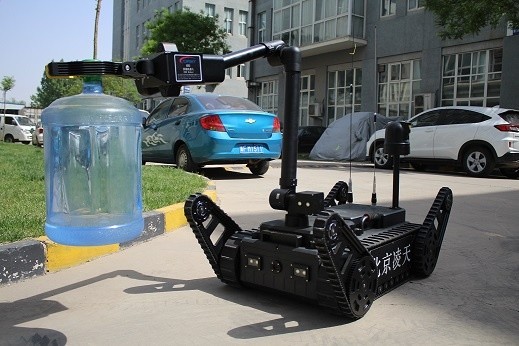

3, the mechanical arm adopts motor could support to snatch 20KG heavy objects and complete various difficult tasks.
4, the robot arm is equipped with explosives disruptor and aiming device to destroy explosives at the scene.
5. Adopting the structure of front and rear 4-swing arm + crawler, crawler and swing arm are suitable for complex terrain and can improve obstacle-crossing performance.
6, Applicable to carry portable X-ray machine and adapter bar
7, Wired and wireless control, in the interference environment using wired control
8. The vehicle and remote control box are simple to operate, adapt to all kinds of complex environment, and can quickly complete the site deployment.
9, the use of large capacity battery pack, working time up to 6 hours
|Front arm: 0-360°||Middle arm: 0-150°||Big arm: 0-180°||Chassis:±90°|
|Crawler:360°(continuous)||Open range:0-200mm||Snatch force:Max 20kg, horizontal ≥10KG|
|Radius of turning circle:autochthonous rotation||Speed:0-2m/s,CVT|
|Height of obstacle crossing: 350mm||Climbing ability: ≥30°|
|Cameras: front view, manipulator *2, and PTZ||Pixel:1080P|
|Lighting: front view high brightness LED, PTZ laser night vision|
|Wire control distance:100m ★wireless control distance:500m|
|Size:967*646*750mm(inc PTZ)||Weight:150KG Load capacity:≥150KG|
|Protection level: IP54, all weather||Working time: 12 hours; 3-6hrs continuous|
|Explosive Disruptor (Optional)|
|★ Exploder OD:22/27mm||Breakdown ability:wood 80mm；steel 1mm|
|X-ray & operation bar (Optional)|
|★ Image plate thickness:less than 15mm||Breakdown ability:50mm AL plate|
