Counter Terrorism Equipment Handheld Raman Spectrometer for Diverse Applications

Contact Now

Counter Terrorism Equipment Handheld Raman Spectrometer for Diverse Applications

Minimum Order Quantity :	1set	Price :	USD12600/unit
Packaging Details :	Aluminium case	Delivery Time :	30days
Payment Terms :	T/T	Supply Ability :	50sets/month

Place of Origin:	China	Brand Name:	TOPSKY
Model Number:	785nm

Detail Information
Laser Wavelength:	785nm±0.5nm	Spectral Range:	200-2500cm-1
Resolution:	12cm-1	CCD Pixel:	2048×64
Working Environment Temperature:	0℃ -40℃	Humidity Of Working Environment:	≤93%
Highlight:	anti terrorism equipment , counter surveillance equipment

Product Description

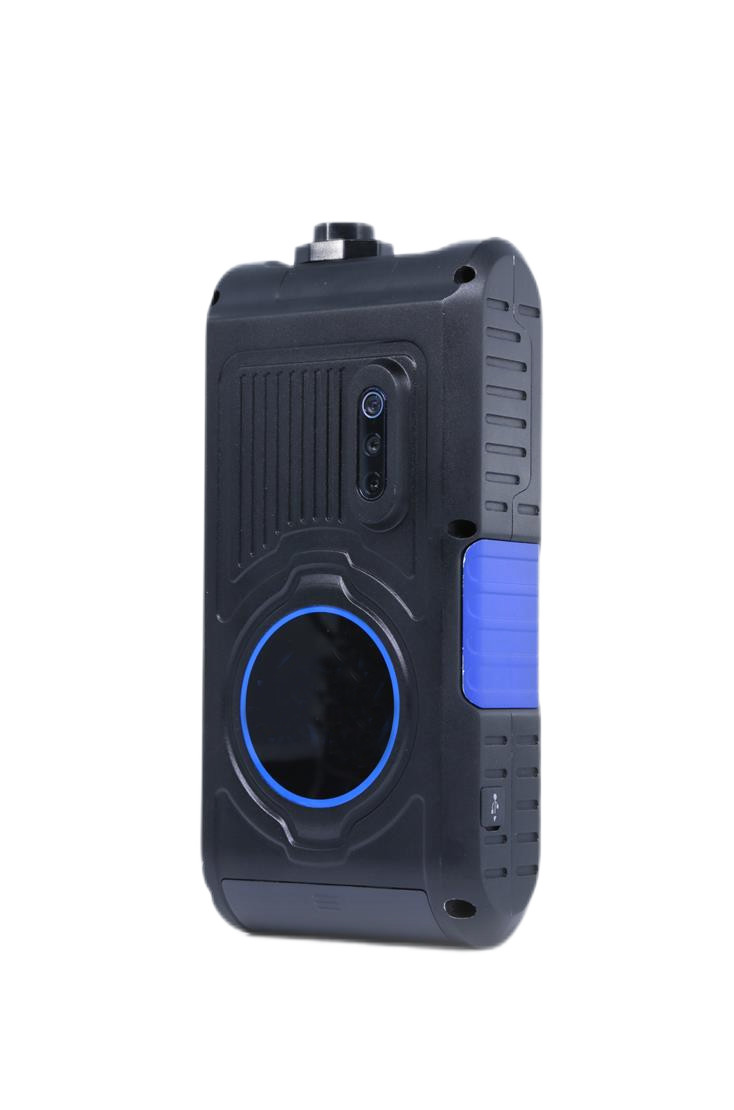

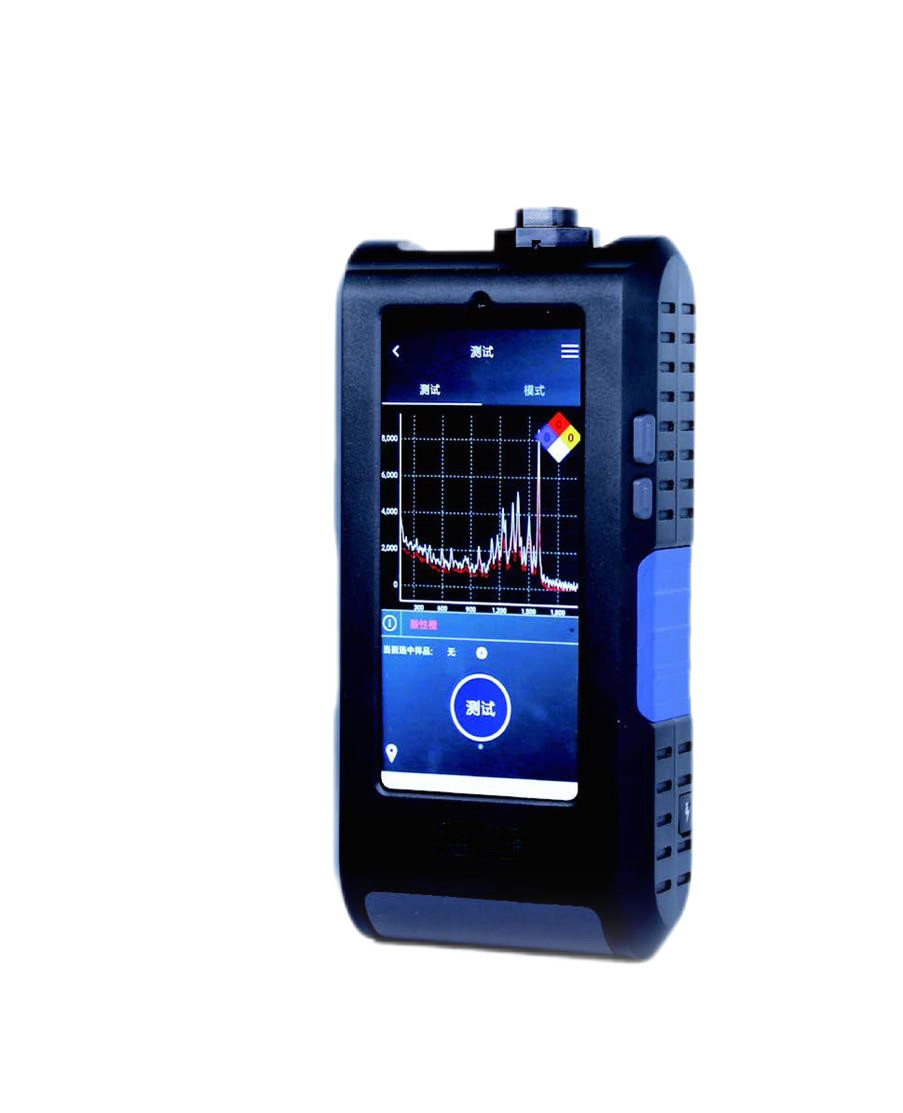

Handheld Raman Spectrometer

Finder Edge ( FE ) is fast and compact Raman Spectrometer, ensure efficient processing; It can be used by non-technical users to rapidly identify samples in the lab, warehouse etc. The non-contact analysis can be performed through transparent containers by Raman technology;

Solve diverse application-side requirements

Inspection filed

Food Safety Gems&Minerals Petro & Chemical industry

Illegal additives, residues of Judgment of jewelry authenticity, Oil adulteration, oil quality analysis,

agricultural and veterinary drugs, dyeing identification, inclusion chemical raw materials, intermediate

food additives, etc. analysis, etc. and finished products testing

Pharmaceutical Industry Others

Identification of raw materials and accessories, additives of Scientific Archeology, Narcotics Analysis, Security,

traditional Chinese medicine, detection of API active ingredients, Biomedical Diagnostics,, Environment Portection, Process

qualitative identification and counterfeiting of drugs, etc. Monitoring, LED lighting, Geology/Mineralogy etc.

Various types of sample testing

Solid Powder Liquid Colloid

Technical Information

1)Laser wavelength: 785nm±0.5nm;

Power: 0-100mW( adjustable);

Line width: <0.1nm

2)Spectral range: 200-2500cm^-1 ;

3)Grating: 1200g/750nm

4)Slit size: 50um×1mm

5)Resolution: 12cm^-1 (@912.297nm)

6)Dispersion: 6nm/mm @871.66nm

7)CCD pixel: 2048×64;

CCD pixel size: 14×14um;

CCD size: 28×0.9mm;

8)Signal of Noise: >3:1

9)System deviation＜3%;

10)Relative intensity deviation＜10%

11)Spectrum repeatability ＜2.5cm^-1

12)Raman shift accuracy:＜5cm^-1
