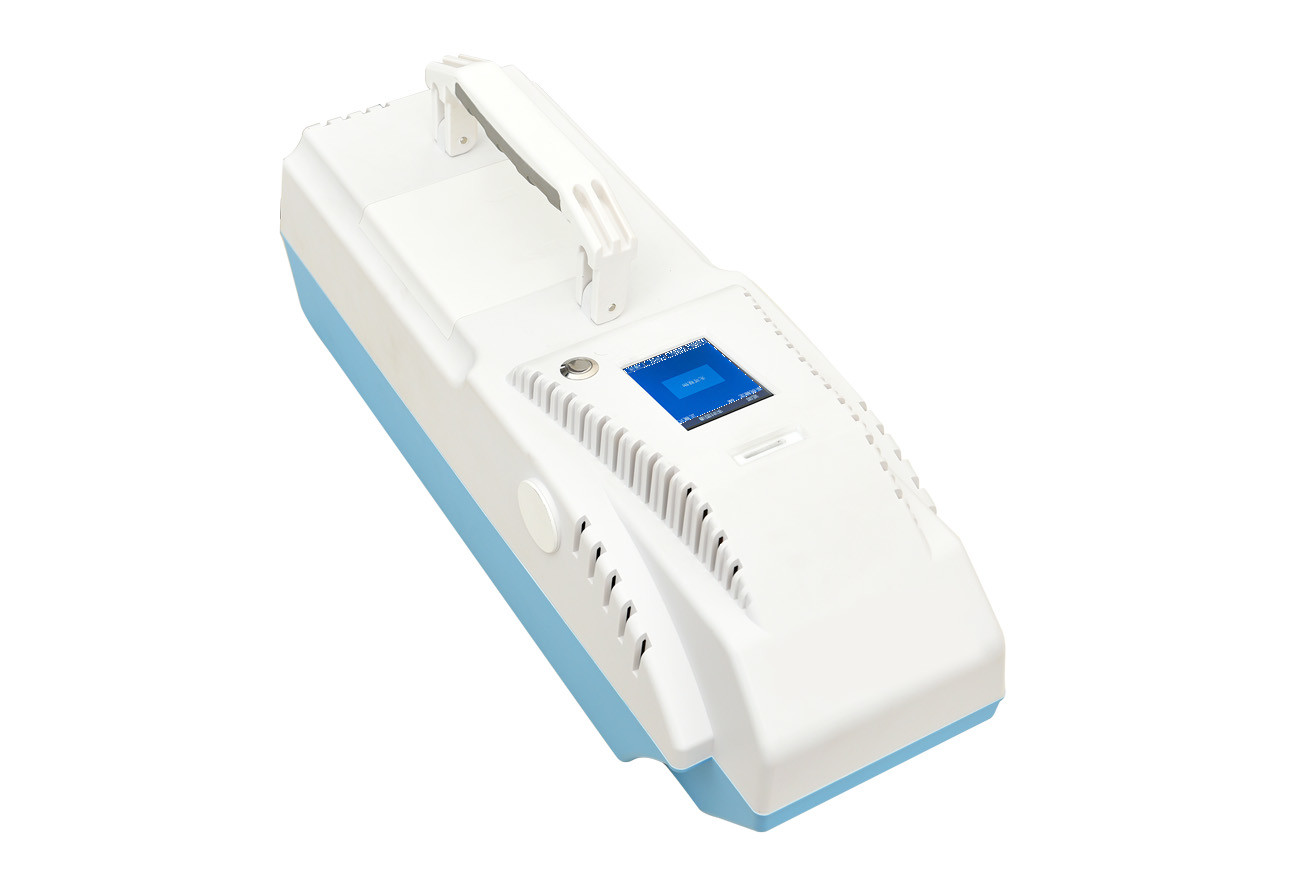

3.95kg Counter Terrorism Equipment Dual Mode Explosive Narcotic Detector Ts-200

Product Description

3.95kg Counter Terrorism Equipment Dual Mode Explosive Narcotic Detector Ts-200

Principle introduction: Different sample molecules . after thermallydesorbed under high temperature in the sample inlet system, enter theionization zone of the IMS ion migration tube from the sample inlet forionization by the ionization source, thus neutral molecules can becomeions; Then. these ions enter the ion migration zone via the ion gate openedperiodically and reach the Faraday receiving disc for converting into currentsignals, which, after being amplified by the operational amplifier, will be sentto the data collecting and processing system. These signals are so called IMSdetected signals.

Different sample molecules form different ratio of ion mass to chargenumber (mass charge ratio) and therefore the motion velocities are differentin the ion migration zone (constant electric field zone) and the time values forreaching the receiving disc are different, too. The IMS can be used to identifythe samples based on this migration time difference.

Features:

Accurate detection: using high-resolution ion mobility spectroscopy technology, in actual work, it is not necessary to align the dangerous goods in the package, only need to wipe the inspection package with test paper to detect whether it carries dangerous goods, convenient operation and accurate detection;

One machine dual mode: using positive and negative dual mode, one machine can detect explosives and narcotics;

One-button detection: one-button detection, easy to operate;

Accurate identification: The type of the dangerous goods can be accurately identified, and the name of the dangerous goods to be inspected can be reported;

Extreme speed analysis: detection and analysis speed is faster than similar products, results within 3 seconds;

Automatic calibration: With automatic calibration function, it can adapt to various environmental changes;

Automatic cleaning: self-cleaning function, which can be cleaned quickly and conveniently after excessive detection;

Automatic diagnosis: It has automatic fault diagnosis function, and can promptly issue a warning. The user can judge whether the instrument can operate normally according to the warning;

Real-time update: Open database, sample library information can be upgraded at any time;

Display: equipped with 2.8-inch TFT color touch screen;

Real-time storage: with real-time data storage, retrieval, derive and other functions, the storage capacity is not less than 0.8 million;

Cheap consumables: molecular sieve-based desiccant, low cost, easy to replace;

Sturdy packaging: safety box with lining, carton packaging;

Technical indicators:

Basic parameters

Weight: dual mode 5.2 kg

Dimensions :470mm (L) × 170mm (W) × 165mm (H)

Battery working time: > 2 hours, standby time > 12 hours

Power / Adapter Adapter: AC110V/220V AC, 50-60Hz Output 19 V

Charger: AC110V/220V AC, 50-60Hz

Performance parameter

Explosives TNT, Hessian, Taian, Nitroglycerin, Black Powder, Dinitrotoluene, Tetra, Okto, Jina, Entropic Explosives TATP, Hexamethylol HMTD, C4, Sam Ting and other military, civilian and earth explosives, etc., and can add new samples as needed.

Narcotics: cocaine hydrochloride, heroin hydrochloride, tetrahydrocannabinol, methamphetamine (ice), ketamine hydrochloride (K powder), morphine hydrochloride, papaverine, ecstasy, dulantin, etc., and can be used as needed. Add a new sample.

Sensitivity: NG level

Analysis time: ≤ 3 seconds

Start time: < 5min

False alarm rate: ≤ 1%

The detection rate ≥ 99%

System functions

Language: Chinese and English

Database: Open database, ready to update

Sampling method: Trace particle adsorption sampling, test paper wiping sampling

Detecting type: can achieve full detection of explosives and narcotics detection

Mixture detection: enables the selection of principal component detection and mixture component detection

Alarm mode: With sound, light, character light alarm display, alarm mode selection switch, optional sound and light alarm, or hidden alarm mode without causing panic

Environmental parameters

Working / storage temperature: -20°C ~ 60 °C

Work / storage humidity: <95%

Working air pressure: 60kPa~106kPa
