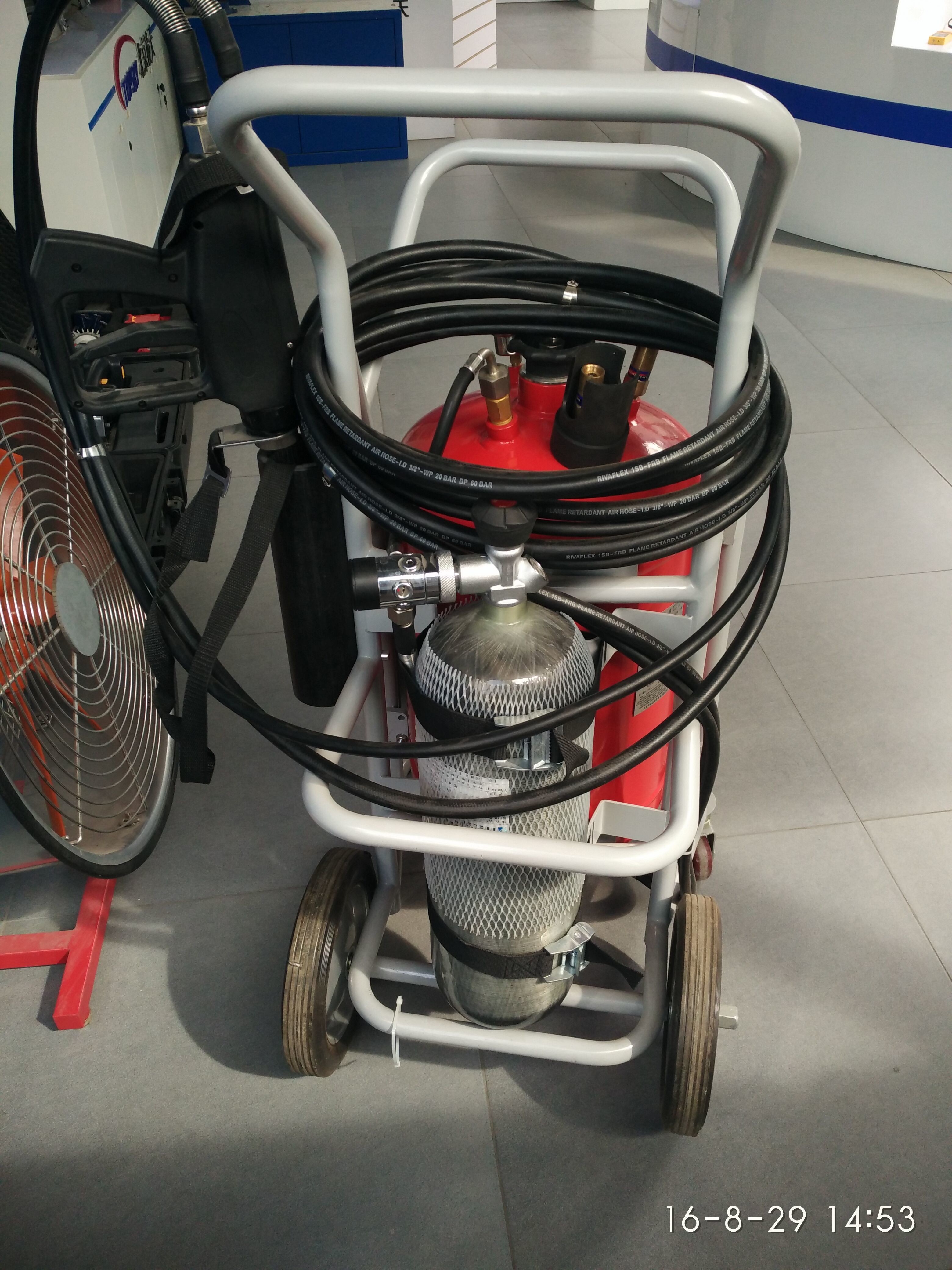

Fire Fighting Trolley Water Mist Extinguisher Stainless Steel Casing

Product Details:
Place of Origin: China
Brand Name: TOPSKY
Model Number: QXWT35
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Packaging Details: Export standard
Supply Ability: 200 Sets/Month

Detail Information

Name: Water Mist Fire Extinguisher Fire Fighting Equipment QXWT50 Water Mist Fire Extinguisher (trolley Type) Filling Capacity: 35 Litres
Material: Stainless Steel Working Pressure: 6.0 Bar
Operating Time: Appr. 25 Sec. Flow Rate: 24 Litres/min
Operating Temperature: Tmin +5°C; Tmax +60°C
High Light:

Fire Fighting water mist extinguisher

,

Trolley water mist extinguisher

,

Stainless Casing water mist extinguisher

Product Description

Water Mist Fire Extinguisher Fire Fighting Equipment QXWT50 water mist fire extinguisher (trolley type)

Applications:

It has applied advanced aerodynamics technology from flow engineering applications involving liquid/gas mixtures to create QXW series water mist systems.

Trolley

The combination of the highly sophisticated Guns and a trolley supply system make the QXW series trolley the safest and ideal choice for handling medium size fires. The QXW series trolleys are ideal fire fighting solutions for coal mine , warehouses, workshops and construction sites where flameable materials are stored or processed.











Technical specification:



Extinguishing agent tank
Filling capacity 35 litres
Material Stainless steel
Working pressure
Pressure 6.0 bar
Propellant gas bottle
Medium Compressed air
Pressure cylinder Filling pressure: 300bar
Volume: 6.8 litres
Technical parameters
Operating time Appr. 25 sec.
Flow rate 24 litres/min
Operating temperature Tmin +5°C; Tmax +60°C
Carrying device Ergonomically shaped
Extinguishing gun
Changeover time Appr. 3 sec. (jet to spray mode)
Lancing distance Appr. 10 m jet mode
Ratings (extinguishing performance)
A Fire Class 55 A (as per EN3)
B Fire Class 233 B (as per EN3)
IIB (EN 1866) (e.g.: with exting. agent Moussel C)
Dimensions
Weight empty(with the gas bottle and valve ) 74.5 kg
Dimensions (LxWxH) Appr. 490x 527x 982mm
