Product Description

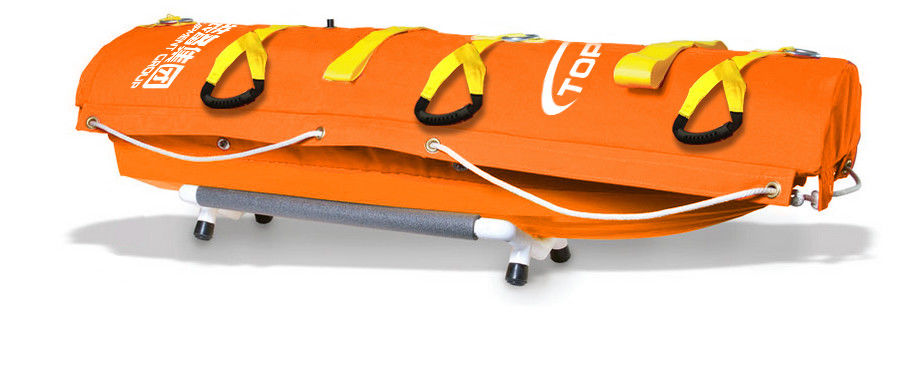

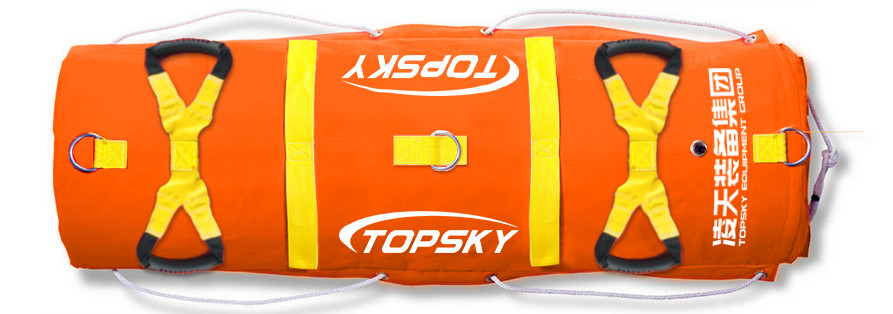

ROV-48 Water rescue remote control robot

Overview

The ROV-48 Water rescue remote control robot is a small remote-control shallow water search and rescue robot for firefighting, which is specially used in the rescue of water area in scenarios such as reservoirs, rivers, beaches, ferries, and floods.

In the traditional rescue operations, rescuers drove the submarine boat or personally go into the water drop point for rescue. The main rescue equipment used was submarine boat, safety rope, life jacket, life buoy, etc. The traditional water rescue method tests the courage and technology of firefighters, and the rescue water environment is complex and harsh: ① Low water temperature: In many water-cooled situations, if the rescuer does not warm up before fully launching, it is easy to occur in the water Leg cramps and other phenomena, but the rescue time is not waiting for others; ②Night: Especially at night, when encountering whirlpools, reefs, obstacles and other unknown conditions, it is a great threat to the life of rescuers.

The ROV-48 Water rescue remote control robot can solve similar problems well. When a water accident occurs, a power life buoy can be dispatched to reach the person who fell to the water for rescue at the first time, which has won precious time for rescue and greatly improved The survival rate of personnel.

2.Technical specs

2.1 ★Hull weight 18.5kg

2.2 ★Maximum load 100kg

2.3 Dimensions 1350*600*330mm

2.4 ★Maximum communication distance 1000m

2.5 Motor torque 3N*M

2.6 Motor speed 8000rpm

2.7 ★ Maximum propulsion 300N

2.8 ★Maximum forward speed 20 knots

2.9 Working time 30min

3. Accessory

3.1 One set of hull

3.2 Remote control 1

3.3 battery 4

3.4 fixed bracket 1

3.5 Reel 1

3.6 Buoyancy rope 600 meters

4. Intelligent auxilliary function

4.1 ★Shouting function (optional): It is convenient for the command staff to do emergency operation command to the rescue site

4.2 ★Video recording (optional): equipped with waterproof camera, recording rescue situation throughout

4.3 ★Internet function (optional): You can use the Internet to upload image data, equipped with GPS positioning function
