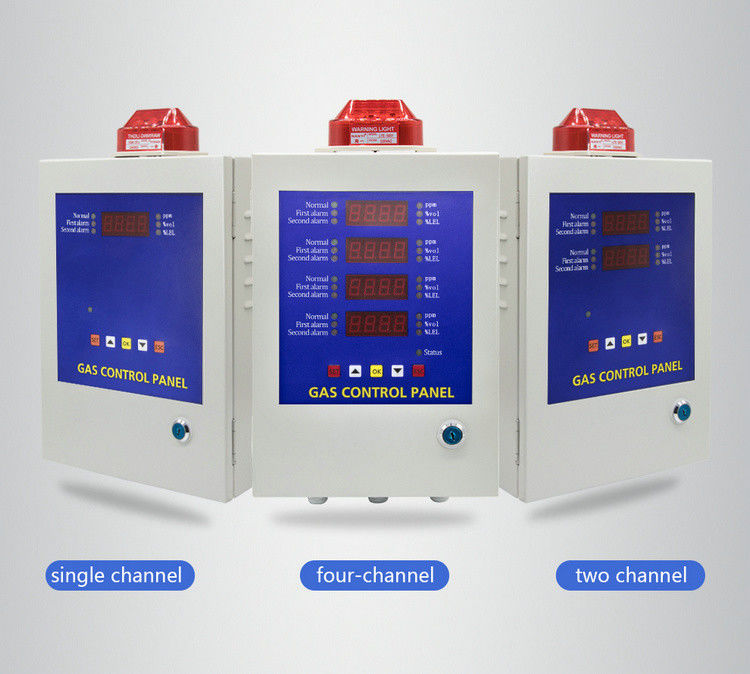

1000m Distance Led Multichannels Fixed Gas Monitor

Minimum Order Quantity : 1set Price : USD800-820/set
Packaging Details : Aluminium case Delivery Time : 10days
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: LT-BH-50

Detail Information

size: 230*380*100mm weight: 2kg
Connection Of Detector And Panel: ≥ RVVP 4 ×2.5 Mm2 RVVP, 3-line, ≥1.5 Mm2 Consumption:: ≤5W
Passive Contact Consumption:: ≤2W Distance: Distance: ≤1000m
High Light:

multichannels fixed gas monitor


led fixed gas monitor


1000m fixed gas monitor

Product Description

To avoid personal safety injury, Instrument damage and potential
dangerous accident; do not use the gas detector before reading this
Brief description
LT-BH-50 Gas Monitor System is a multipoint controller system. It is used
for detecting gas concentration in the air. The system could connect
to detectors for different gases in the same time. The system adopts
MCU as control unit, with large LCD touch screen, excellent gas
sensor with high sensitivity and fast response. It will give visual and
audible alarm when the gas concentration reach or exceed the
presetting alarm level to remind you to take effective actions in time
and it could also start the ventilation fan and other equipment to
prevent from accident and explosions.
1. Features
MCU with functions: data real time check, fault detecting, power
management, alarm display, alarm indication, relay outputs etc;
8 or 16 or 32 simulate channels for 4-20mA detectors;
1 signal for Modbus RS-485 with capacity of 48pcs digital detectors;
Simulate channel and digital channel together. maximum detectors is
Manage different gas detectors, different level and different digital unit
Intelligent system: easy zero calibration; free relay output;
2 passive relay contact output, linkage programmer;
2. Specifications
IInstallation method: wall-mounted
Detector model: LT-BH-60, LT-BH-60S.
Response time: <10s
Indication method:
Large LCD display real time data and system state
1BH-50 Gas Control Panel Operation Manual
Visual and audio indication for alarm and fault
Contact output: passive contact max consumption ≤2KW
Working method: continuous work
Working temperature: -10℃~50℃
Working humidity: <95%RH
Main power: AC220V±10%
Consumption: ≤5W
Detector power supply:DC24V±25%
Overall size: 230mm×380mm×100mm
Connection of detector and panel: ≥ RVVP 4 ×2.5 mm2 RVVP,
3-line, ≥1.5 mm2
Distance: ≤1000m
3. System operation
System composing
The system consists of one control panel, Modbus detectors (48pcs in
maximum), and 4-20mA detector (8pcs or 16pcs or 32pcs)
