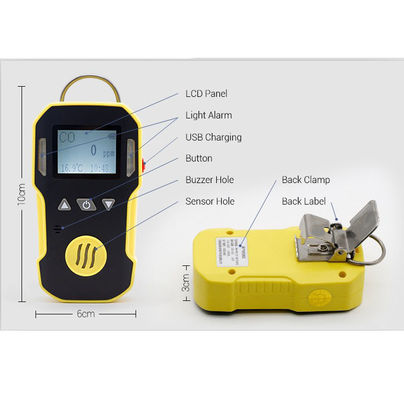

ATEX Portable IP 65 Advanced MCU Single Gas Detector
ATEX Portable IP 65 Advanced MCU Single Gas Detector
ATEX Portable IP 65 Advanced MCU Single Gas Detector ATEX Portable IP 65 Advanced MCU Single Gas Detector ATEX Portable IP 65 Advanced MCU Single Gas Detector ATEX Portable IP 65 Advanced MCU Single Gas Detector
Contact Now

ATEX Portable IP 65 Advanced MCU Single Gas Detector

Minimum Order Quantity : 1set Price : ＵＳＤ100-350／ｓｅｔ
Packaging Details : Aluminium case Delivery Time : 10days
Payment Terms : T/T Supply Ability : 100sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: LT-BH-90A

Detail Information
Method Of Detection: Disfusion Ingress Protection: IP65
Dimensions: 100*58*30mm Weight: 130g
Packing Size: 163*105*70mm Packing Weight: 880g
Highlight:

IP 65 Single Gas Detector

,

Advanced MCU Single Gas Detector

,

ATEX Single Gas Detector

Product Description

Portable Single Gas Detector for CO, CO2, H2S, O2,Combustible gas O3, NH3, SO2, CL2,PH3 and formaldehyde etc.

FEATURES
● Advanced MCU for Low-Power Consumption
● LCD display
● Self-Test Function
● Adjustable alarms
● Two Instant Alarm Points
● TWA and STEL for toxic gas
● Audio, Visual LED and Vibratory Indicators
● Password Protection
● Strong, Durable Rubber Casing Provides
Anti-Slip Handleability
● Available for CO, CO2, H2S, O2,Combustible gas
O3, NH3, SO2, CL2,PH3 and formaldehyde etc.
● Rechargeable
● Comply with ATEX
SPECIFICATIONS
Method of Detection: Diffusion
Sensor: Electrochemical; Infrared
Sensor life: Electrochemical: 2 years; Infrared: 5 years
Display: LCD
Temperature: -20℃~50℃
Humidity: 5 to 95% RH, non-condensing
Power: 3.7VDC rechargeable lithium battery
Operating time: Approx.8 hours for LEL unit
Approximately 300 hours for CO, H2S, O3 and O2 units,
Continuous, non-alarm conditions
Charge Time: Approximately 4-6 hours
Dimensions: 100mm*58mm*30mm
Sound: 85 dB at 1m
Weight: 130g
Ingress Protection: IP65
Gas Range L-alarm H-alarm
CH4 0-100%LEL 20%LEL 50%LEL
C3H8 0-100%LEL 20%LEL 50%LEL
H2 0-100%LEL 20%LEL 50%LEL
H2 0-1000ppm 35ppm 250 ppm
H2S 0-100ppm 10ppm 15ppm
H2S 0-100ppm 10ppm 20ppm
CO 0-1000ppm 35ppm 200ppm
CO 0-1000ppm 30ppm 60ppm
C2H4O 0-20ppm 10ppm 15ppm
C2H4 0-100%LEL 20%LEL 50%LEL
C2H4 0-20ppm 5ppm 10ppm
O2 0-30%vol 19.5%vol 23.5%vol
C2H5OH 0-100%LEL 20%LEL 50%LEL
NH3 0-100ppm 25ppm 50ppm
CL2 0-20ppm 5ppm 10ppm
O3 0-20ppm 5ppm 10ppm
SO2 0-20ppm 2ppm 5ppm
SO2 0-100ppm 2ppm 5ppm
PH3 0-20ppm 0.3ppm 5ppm
PH3 0-5ppm 0.3ppm 2ppm
NO 0-250ppm 20ppm 50ppm
NO2 0-20ppm 5ppm 10ppm
HCN 0-500ppm 10ppm 20ppm
HCN 0-50ppm 10ppm 20ppm
HCL 0-50ppm 10ppm 20ppm
CH2O 0-10ppm 2ppm 5ppm
VOC 0-100ppm 20ppm 50ppm
C6H6 0-100ppm 20ppm 50ppm
CO2 0-5000ppm 1000ppm 2000ppm
CO2 0-50000ppm 1000ppm 2000ppm
