Counter Terrorism Uav Surveillance Radar 1.2km Maximum Detection Distance
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
| Minimum Order Quantity : | 1 set | Price : | USD27000-USD35000 |
|---|---|---|---|
| Packaging Details : | Export package | Delivery Time : | 30 days |
| Payment Terms : | T/T | Supply Ability : | 200 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | SR215 |
|
Detail Information |
|||
| Name: | Counter Terrorism Equipment XW/SR215 Security Surveillance Radar With 5km Detection | Work System: | Phased Array System (azimuth Phase Scan) |
|---|---|---|---|
| Operating Mode: | Pulse Doppler | Working Frequency: | C Band (5 Working Frequency Points) |
| Maximum Detection: | ≥2.5km（pedestrian） ≥5.0km（vehicle/ship） | ||
| High Light: | 5km detection counter terrorism equipment,5km portable ground surveillance radar |
||
Product Description

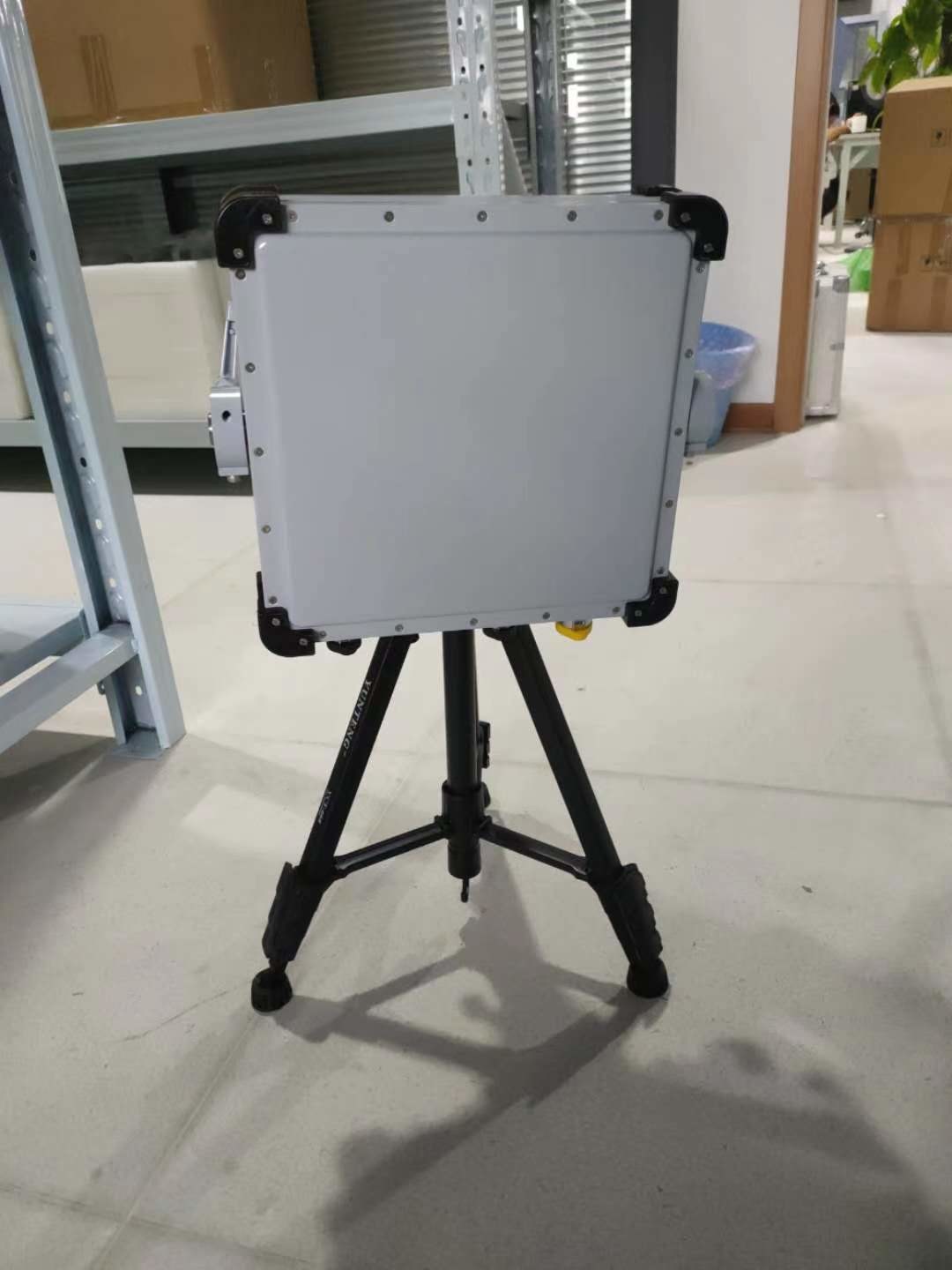

XW/SR215 Security Surveillance Radar
1.Product function and use
The XW/SR215 radar is mainly composed of radar array and 1 power distribution control box. It is used for the detection, alert and target indication of pedestrians, vehicles or ships in key areas such as borders, airports, and military bases. It can accurately give Track information such as the target's position, distance and speed.
2.Main specifications
| ITEM | Performance parameters |
| Work system | Phased array system (azimuth phase scan) |
| Operating mode | Pulse Doppler |
| Working frequency | C band (5 working frequency points) |
|
Maximum detection distance |
≥2.5km(pedestrian) ≥5.0km(vehicle/ship) |
| Minimum detection distance | ≤ 100m |
| Azimuth coverage | 360° |
| Elevation coverage | 9° |
| Detection speed | 0.5m/s～30m/s |
| Distance accuracy | ≤ 10m |
| Bearing accuracy | ≤ 1.0° |
| Speed accuracy | ≤ 0.2m/s(Radial velocity) |
| Data rate | ≥ 1 times/s |
| Data interface | RJ45 / 1 100M Ethernet (UDP protocol) |
|
Power and power consumption |
Power consumption:≤ 160W Operating Voltage:AC200V～240V |
|
working environment |
Operating temperature:-40℃～55℃；Storage temperature:-45℃～65℃；With measures to prevent rain, dust and sand and moisture-proof, salt-fog and mildew-proof
|
| Outside size | 550mm×550mm×1100mm |
| Weight | ≤ 50kg |
|
Note: Detection distance conditions: activities with a radial velocity of not less than 0.5m/s, false alarm probability 10-6, detection probability 0.8. |
|
