Counter Terrorism Uav Surveillance Radar 1.2km Maximum Detection Distance
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
| Minimum Order Quantity : | 1set | Price : | USD22000/set |
|---|---|---|---|
| Packaging Details : | carton box | Delivery Time : | 30days |
| Payment Terms : | T/T | Supply Ability : | 10sets/month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | YSR |
|
Detail Information |
|||
| Technology: | Radar | Detect Distance: | More Than 1.5km |
|---|---|---|---|
| Vehicle Distance: | More Than 2.5km | Frequency: | C Band |
| Weight: | 4kgs | Size: | 33*30*12cm |
| High Light: | ASR Air Surveillance Radar,Counter Terrorism Air Surveillance Radar |
||
Product Description

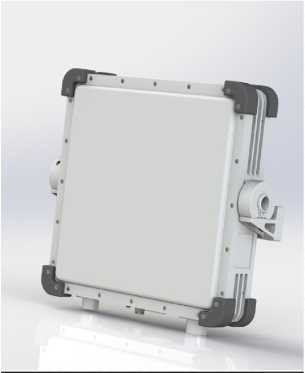

XW/RB101 Security Surveillance Radar
1. Product function and use
XW/RB101 security surveillance radar is mainly composed of a radar array and a power adapter. It is used for the detection, alert and target indication of pedestrians and vehicles in key areas such as borders, airports, and military bases. It can accurately give the target's position, distance and Track information such as speed.
| ITEM | Performance parameters |
| Work system | Phased array system (azimuth phase scan) |
| Operating mode | Pulse Doppler |
| Working frequency | C band (5 working frequency points) |
|
Maximum detection distance |
≥1.5km(pedestrian) ≥2.5km(vehicle) |
| Minimum detection distance | ≤ 100m |
| Detection range |
Azimuth coverage:30°/ 45°/90°(Configurable) Elevation coverage:18° |
| Detection speed | 0.5m/s～30m/s |
|
measurement accuracy |
Distance accuracy:≤ 10m Bearing accuracy:≤ 1.0° Speed accuracy:≤ 0.2m/s |
| Data rate | ≥1 times /s (30°) |
| Peak output power | 4W/2W/1W(Configurable) |
| Data interface | RJ45,UDP |
| Power and power consumption |
Power consumption:≤35W power supply:AC 220V(Power adapter) |
|
working environment |
Operating temperature:-40℃～60℃； Storage temperature:-45℃～65℃； |
| Outside size | 324mm×295mm×120mm |
| Weight | ≤4.0kg |
|
1) Note: 2) 1) There are many options for azimuth coverage, and different azimuth coverage has different data rates. 3) The peak output power can be configured online, and the maximum output is 4W. |
|
