15km Ground Surveillance Radar Composed Of Radar Array And Power Distribution Control Box

Minimum Order Quantity : 1set Price : USD55000/set
Packaging Details : carton box Delivery Time : 30days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: TOPSKY
Model Number: YSR

Detail Information

Technology: Radar Detect Distance: More Than8km
Vehicle Distance: More Than 15km Frequency: C Band
Weight: 20kgs Size: 68*47*23cm
High Light:

15km ground surveillance radar


S band ground surveillance radar

Product Description

XW/SR216 Security Surveillance Radar




1.Product function and use

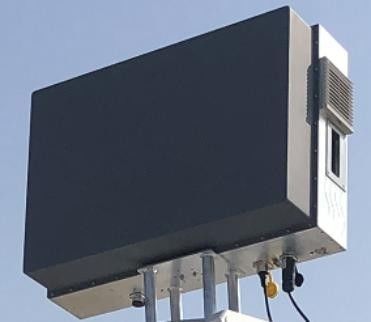

The XW/SR216 security surveillance radar is mainly composed of a radar array and a power distribution control box. It is used for the detection, alert and target indication of pedestrians, vehicles or ships in key areas such as borders, airports, and military bases. It can accurately give the target Track information such as bearing, distance and speed.


2. Main specifications


Item Performance parameters
Work system Phased array system (azimuth phase scan)
Operating mode Pulse Doppler
Working frequency S band (5 working frequency points)


Maximum detection distance

≥ 8km(pedestrian)

≥ 15km(Vehicle/vessel)

≥ 5km(Drone)

Minimum detection distance ≤ 100m


Detection range

Azimuth coverage:≥90°

Elevation coverage:≥18°(Adjustable range of center point -12°~12°)

Detection speed 0.5m/s~45m/s


measurement accuracy

Distance accuracy:≤ 8m

Bearing accuracy:≤ 0.8°

Speed accuracy:≤ 0.5m/s

Data rate ≥ 0.5 times/s
Data interface RJ45, UDP
Power and power consumption

Power consumption:≤200W

power supply:AC220V


working environment

Operating temperature:-40℃~+55℃; Storage temperature:-45℃~+65℃; Waterproof grade is not lower than IP66.
Outside size 682mm×474mm×232mm
Weight ≤20.0kg

1) Note:

2) 1) Detection distance conditions: pedestrians, vehicles (ships) or drones with a radial velocity of not less than 0.5m/s, the probability of false alarm is 10-6, and the probability of detection is 0.8;

3) 2) The typical target of the drone is DJI "Elf 3";

4) With the corresponding power distribution control box, up to 4 arrays can be spliced together to achieve 360° azimuth coverage.
