Unmanned off-road platform 6X6 differential wheeled robot chassis with 500kg maximum load capacity 35° climbing angle and 13km/h speed

Place of Origin:	CHINA	Brand Name:	TOPSKY

Detail Information
Rotating:	Front Arm 360°	Max Torque:	50NM
Body Weight:	16kg	Rotate:	0-120RPM
Foot Protector:	450m/s	Dimensions:	Varies By Equipment Type, Compact Design Preferred
Blowing Time:	2.5seconds	Measurement Time:	Less Than 10 Seconds
False Alarm Rate:	≤1%	Life:	100 Shootings
Storage Temperature:	-45℃～65℃;	Hearing Device Size:	210100100mm
Launcher Diameter:	38mm	Arms:	567.7m/s
Weight Of Suit:	Approx 29kg With Armored Blast Plates
Highlight:	500kg maximum load capacity unmanned off-road platform , 35° maximum climbing angle rescue escort transportation robot , 13km/h maximum driving speed 6X6 differential wheeled robot chassis

Product Description

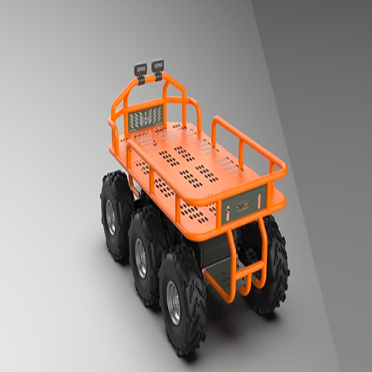

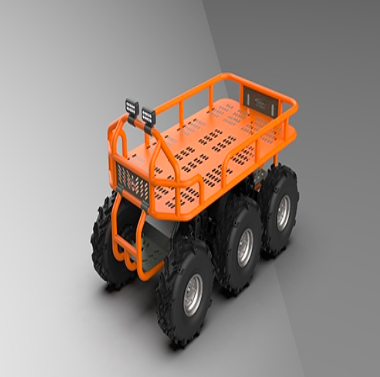

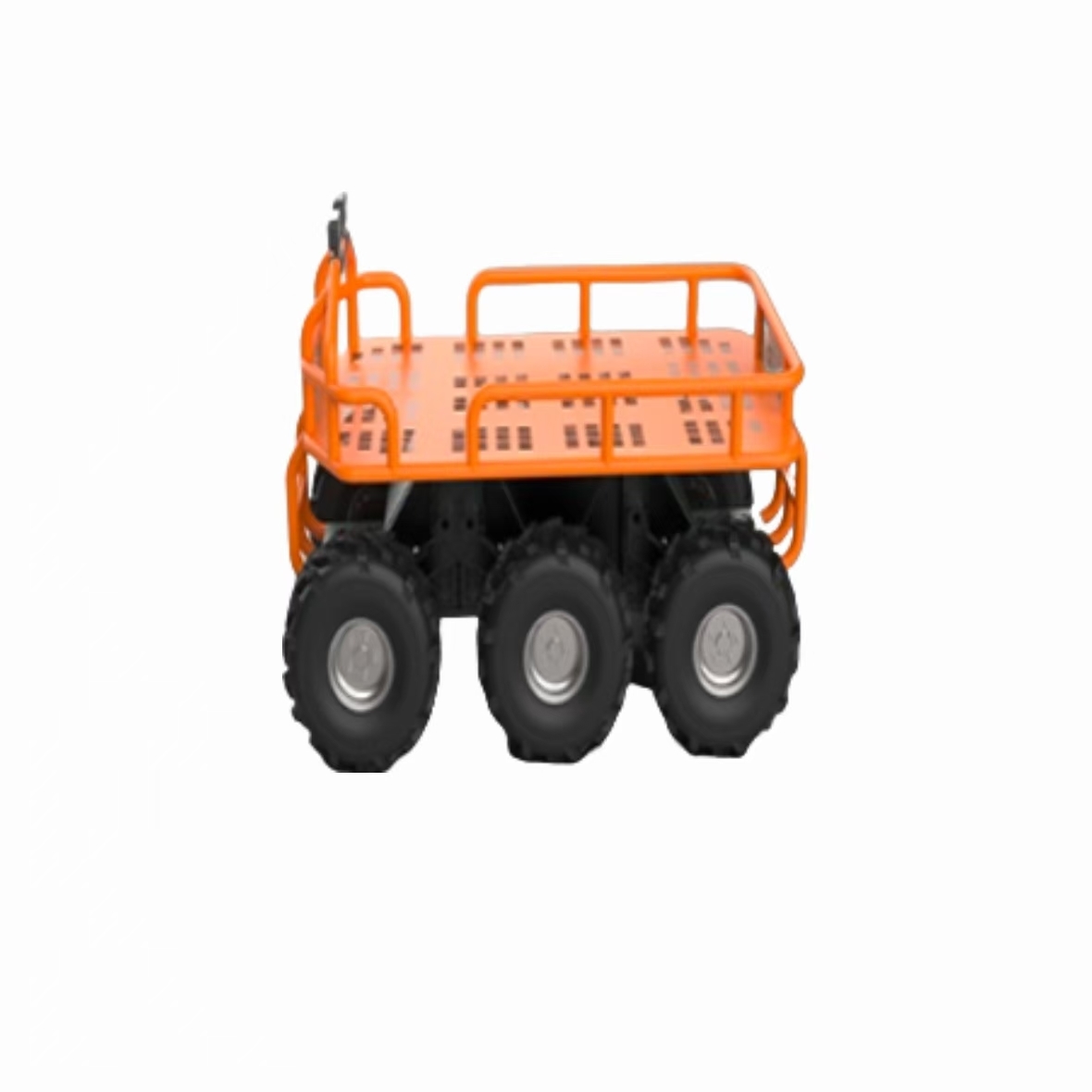

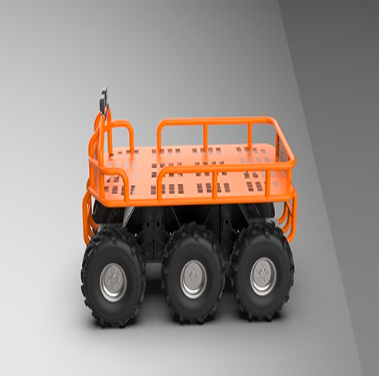

Unmanned Off-Road Platform (Rescue Escort Transportation Robot)

Overview

The 6X6 differential wheeled robot chassis is a high-performance mobile platform engineered to excel in complex outdoor environments and diverse operational requirements. Featuring a unique six-wheel configuration and advanced differential drive technology, this platform serves as an ideal foundation for specialized operation robots, scientific research and exploration robots, and industrial application robots. It delivers a robust and reliable mobility solution for demanding robotic applications.

Application Scenarios

Rescue operations for large-scale fires in petroleum and chemical enterprises
Firefighting and rescue in collapse-prone areas including tunnels and subways
Emergency response in environments with potential explosive gas or liquid leaks
Rescue missions in smoke-filled or toxic gas environments
Close-proximity firefighting operations where personnel safety is at risk

Technical Specifications

Product Name	6X6 Differential Wheel Robot Chassis
Model	TIGER-03
Power System	Electric, Lithium Battery
Chassis Dimensions	≤ 2270mm (L) × 1250mm (W) × 845mm (H)
Cabin Dimensions	≤ 1350mm (L) × 350mm (W) × 528mm (H)
Weight	550kg
Maximum Load Capacity	500kg
Motor Power	3kW × 6
Motor Selection	96V High-Precision DC Wheel Hub Motor
Steering Method	Differential In-Place Steering
Maximum Driving Speed	13km/h
Maximum Obstacle Height	300mm
Maximum Obstacle Width	≤ 400mm
Ground Clearance	280mm
Maximum Climbing Angle	35°
Surface Treatment	Whole Machine Baking Paint
Main Materials	Alloy Steel / Carbon Steel Square Tube / Aluminum Alloy
Tire Options	Regular Radial Tires / Low-Pressure Tires (Customizable)
