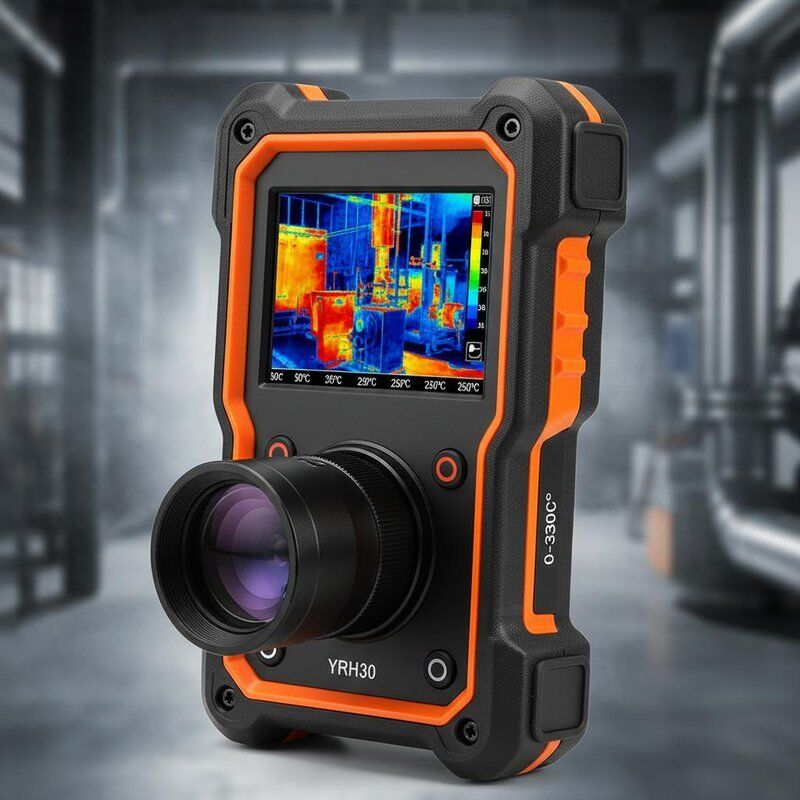

Infrared Thermal Imager YRH30 with 7 inch color TFT display, weather-resistant and shockproof design, and 0-300ºC temperature range for precise thermal imaging

Contact Now

Infrared Thermal Imager YRH30 with 7 inch color TFT display, weather-resistant and shockproof design, and 0-300ºC temperature range for precise thermal imaging

Place of Origin:	china	Brand Name:	topsky

Detail Information
Measure Range:	0-2.5 Mg/L	Film Size:	32x22CM(Usually)
Magnify:	16times	Display:	7 Inch Color TFT
Frequency:	600-1800mhz	Durability:	Weather-resistant And Shockproof
Distance Accuracy:	≤ 10m	Launcher:	49mm
Clothing Burst Surface:	≥600m/s	Use Angle:	0 ° -360 °
Remote Weight:	1.4kg	Working Time Battery:	2hrs
Drill Length:	0-400 Mm Adjustable	Purple Light Power:	700mW
View Angle:	≥170 Degrees
Highlight:	7 inch color TFT display Infrared Thermal Imager , Weather-resistant and shockproof Thermal Imaging Equipment , 0-300ºC temperature range Infrared Imaging Device

Product Description

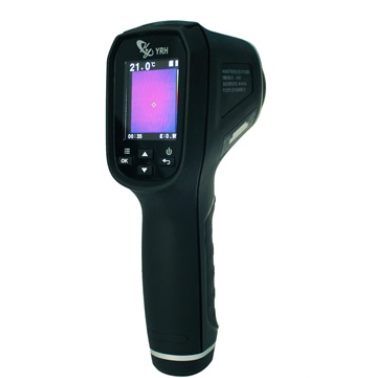

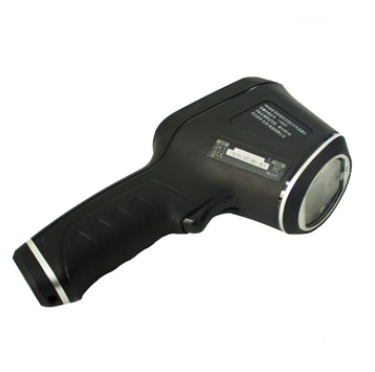

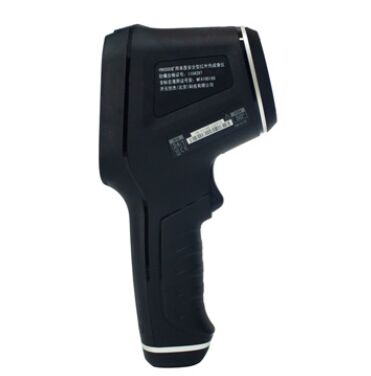

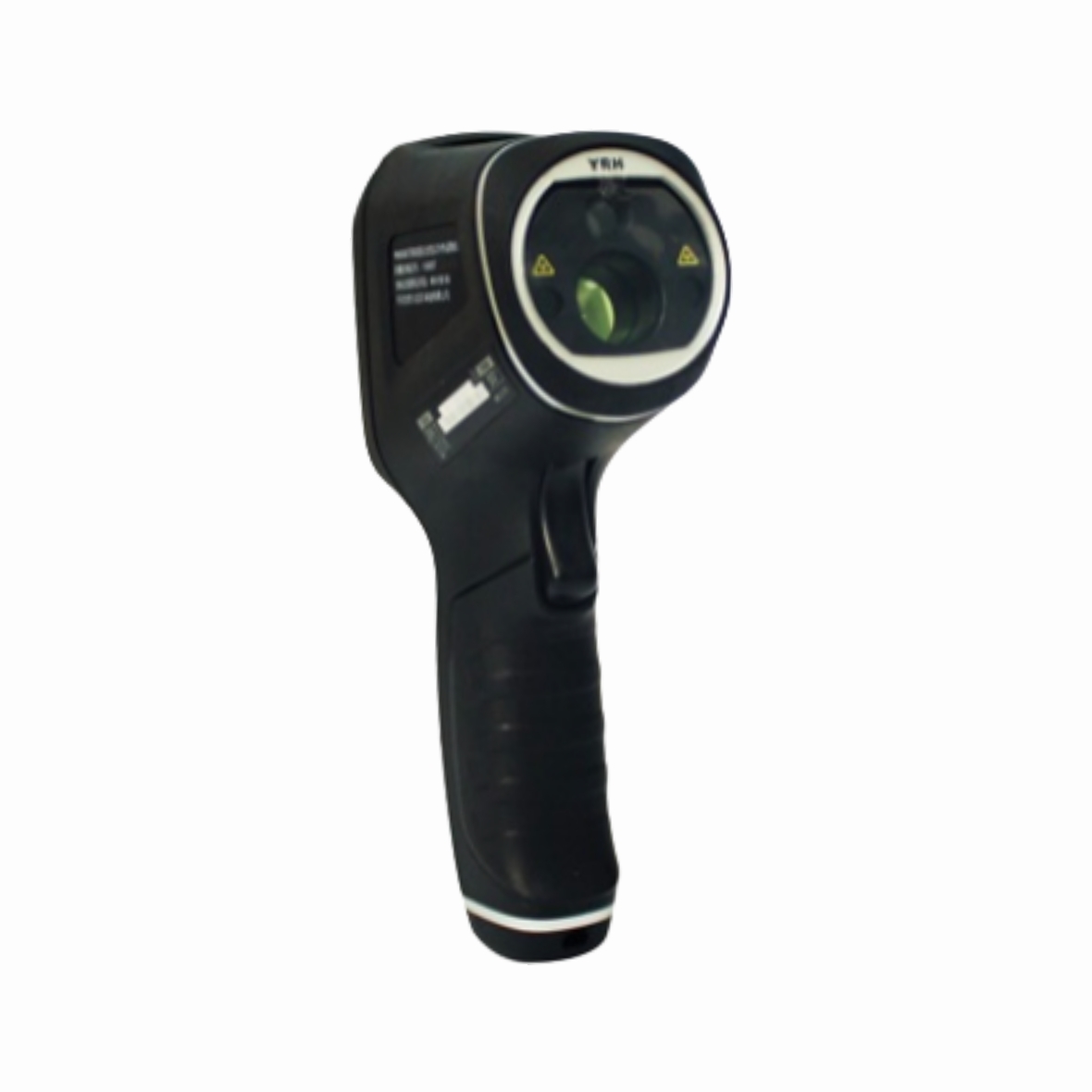

Infrared Thermal Imager YRH30

Product Overview

Infrared imaging equipment designed for thermal imaging and temperature measurement in explosive environments. Identifies high-temperature areas, provides real-time temperature difference imaging, and is suitable for locating coal seam spontaneous combustion and fire in ventilation work areas. Also used by rescue teams to search for trapped personnel in dark conditions.

Operating Specifications

Operating Conditions

Working temperature: -1°C to +45°C
Relative humidity: ≤ 95% (at 25°C)
Atmospheric pressure: 80 kPa to 110 kPa
Designed for use in coal mines with methane and coal dust explosive gas mixtures

Storage & Transportation Conditions

High temperature: +60°C
Low temperature: -40°C
Average relative humidity: 95% (±25°C)
Vibration: Acceleration 50 m/s²
Impact: Peak acceleration 500 m/s²
Fall: Height of 2 meters, conducted 4 times

Technical Functions & Specifications

Parameter	Specification
Basic Accuracy	±1.5% or 1.5°C, whichever is greater
Temperature Range	0°C to 300°C (Maximum: -25°C to 380°C, -13°F to 716°F)
Emission Rate	4 preset value levels, customizable adjustment 0.1 to 0.99
Distance Ratio Coefficient (D:S)	24:1
Measurement Resolution	0.1°C / °F
Response Time	150ms
Wavelength Range	8 μm - 14 μm
Laser Indicator	Dual laser beams for temperature measurement area locking
Thermal Imaging Detector	Imported micro-thermal radiation sensor focal plane array (FPA)
Shutter	Integrated automatic shutter
Image Resolution	4800 pixels (80 x 60)
Field of View	50° x 38.6° (height x width)
Thermal Imaging Sensitivity	150mk
Frame Rate	9Hz
Palette	2 colors (gray-white, iron red)
Image Format	Bitmap (BMP) with temperature and emissivity information
Display Type	2.0" TFT LCD
Display Resolution	38720 pixels (176x220)
Screen Size	80 x 60mm
