Detail Information

Highlight:

Lightweight EOD Robot

,

7-Degree-of-Freedom Bomb Disposal Robot

,

45° Slope Climbing Explosive Ordnance Disposal Robot

Product Description

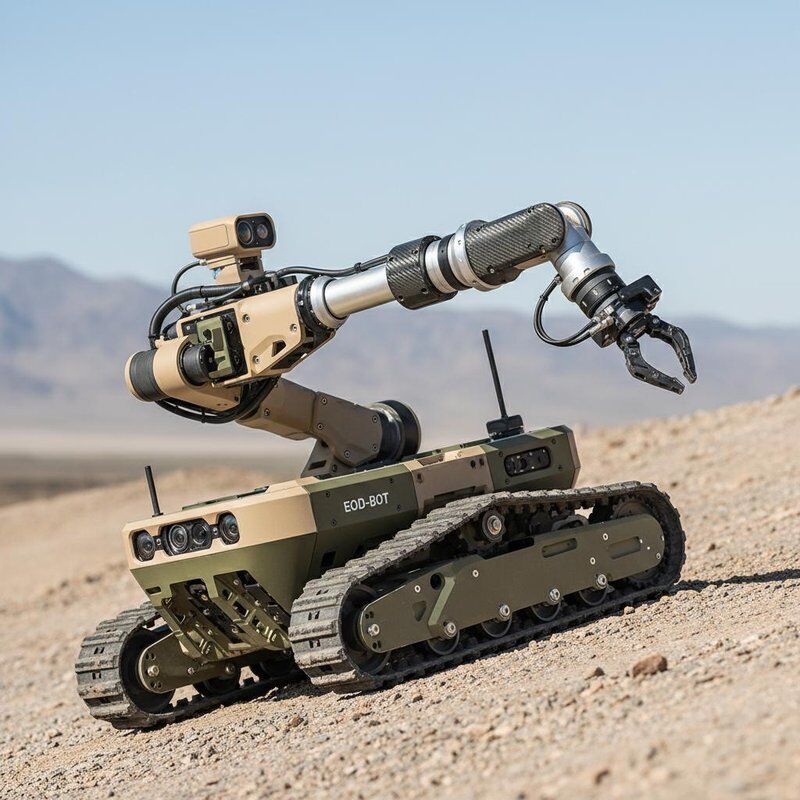

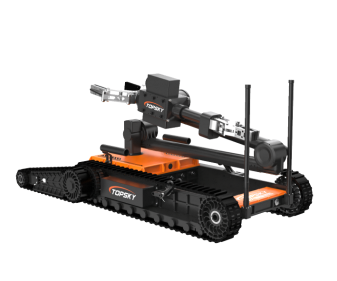

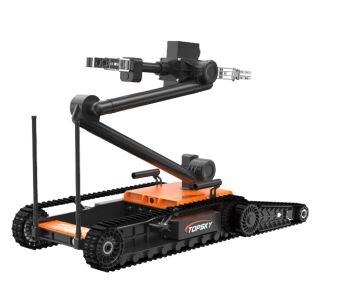

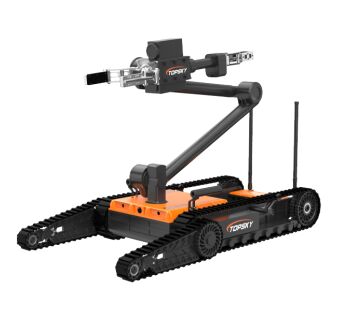

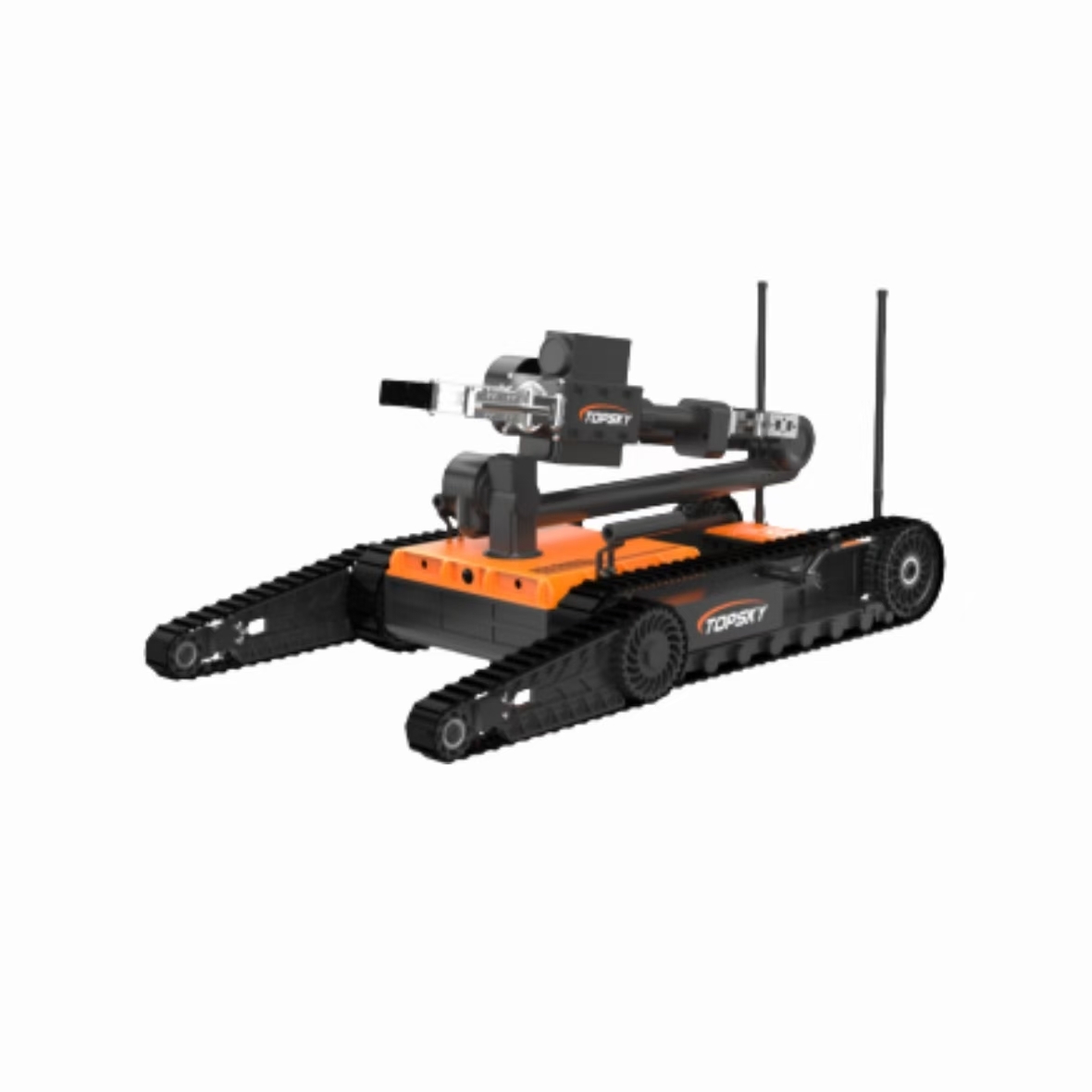

Lightweight Explosive Ordnance Disposal Robot
Overview

Explosive ordnance disposal robots are designed for handling explosive-related operations and reconnaissance in terrain inaccessible to humans. The 7-degree-of-freedom bomb disposal robotic arm provides multi-angle rotation capability with a maximum weight capacity of 16kg at the proximal end and 3kg at the small gripper. The robotic arm can be equipped with explosive destruction devices for on-site neutralization. The chassis features a track + single swing arm structure for superior terrain adaptation and rapid combat deployment. The robot includes wired control capability for remote operation during network interference scenarios.

Compatible accessories include destroyers (such as 29mm) and remote detonation control systems for explosives.

Key Features
  • Mechanical Arm Preset Functions: 15 preset shortcut functions with one-click reset capability
  • Multi-Degree Freedom Robotic Arm: 7 degrees of freedom for enhanced maneuverability
  • Superior Mobility: Capable of climbing 45° slopes, 43° stairs, overcoming 30cm vertical obstacles, and crossing 40cm wide trenches
  • Robust Gripping Capacity: Maximum 16kg at proximal end
  • Advanced Video System: Expandable 3-point communication (1km range), 4 high-definition cameras, 1 high-definition pan-tilt-zoom camera
  • Modular Design: Modular robotic arm, battery, and control box for maintenance and customization
Technical Specifications
Specification Details
Product Name Lightweight Explosive Disposal Robot
Model ER3 Generation 9
Basic Functions Explosive Disposal, Video Reconnaissance
Compliance Standard GA/T 142-1996 General Technical Conditions for Explosive Disposal Robots
Protection Level IP65
Power Source Electric, Lithium Polymer Battery
Dimensions (Transport) ≤ 830mm × 600mm × 450mm
Turning Diameter Rotates on the spot
Weight ≤ 37kg
Maximum Speed ≥ 1.8m/s, continuously variable
Straight Running Deviation ≤ 3%
Braking Distance ≤ 0.1m
Slope Climbing ≥ 45°
Stair Climbing ≥ 43°
Trench Crossing ≥ 400mm
Obstacle Clearance ≥ 300mm
Water Crossing Depth 200mm
Operating Time ≥ 4 hours
Wireless Control Range ≥ 500m (Visual)
Wireless Video Range ≥ 500m (Visual) Two-point Communication
Wired Control Range 100m (Optional)
Wired Video Range 100m (Optional)
Load Capacity Rated 6kg, Maximum 16kg at proximal end
Operating Temperature -25℃ to +50℃
Track Specifications Flame-retardant, anti-static, low-temperature-resistant rubber with Kevlar fiber pull wires and anti-derailment design
