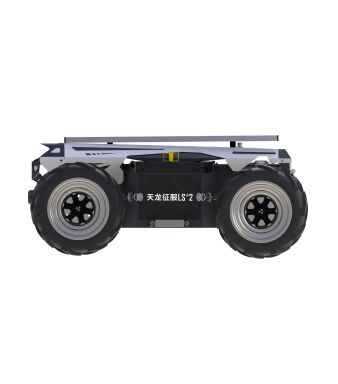

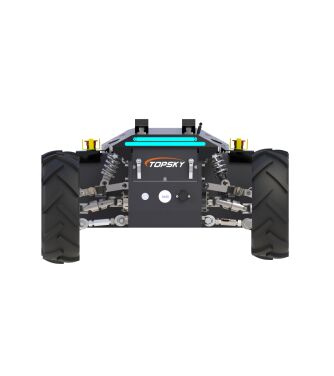

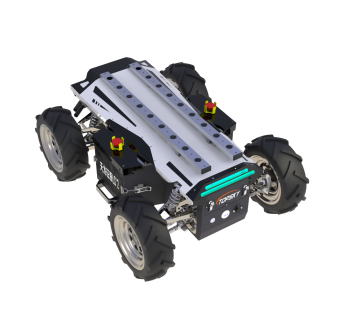

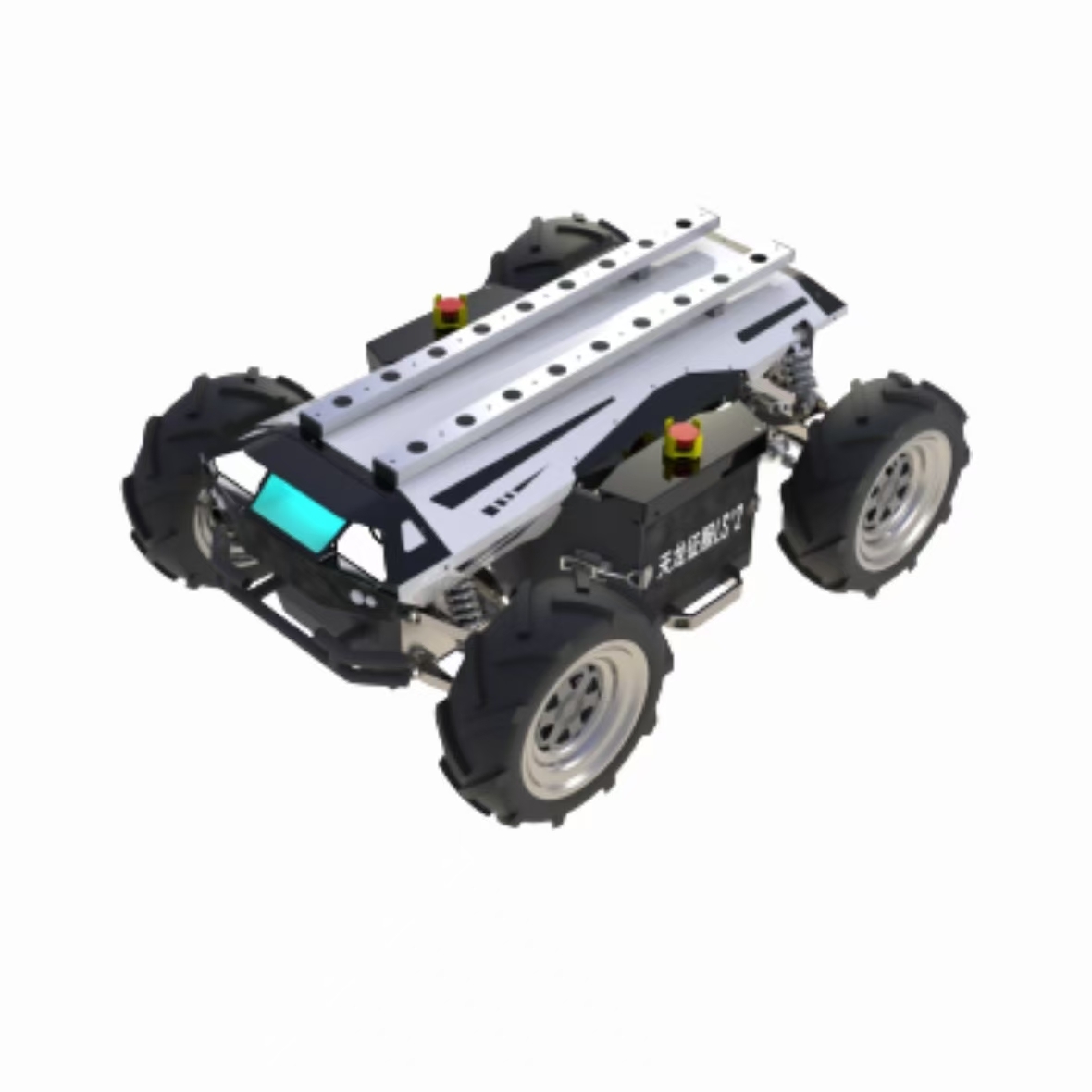

Ackermann Wheeled Robot Chassis with IP65 Dustproof Waterproof Modular Design and 120kg Load Capacity for Counter Terrorism

The Ackermann wheeled robot chassis utilizes lithium battery power as its energy source and is remotely controlled via wireless technology. Complex operation modes can be customized, with the main control providing serial port and standard CAN bus communication interfaces. The machine features Ackermann steering and front/rear double wishbone independent suspension structure with IP65 dust and water resistance, enabling operation in various complex environments. The modular design allows for quick disassembly, maintenance, and replacement of four independent suspensions, left/right electrical control boxes, and batteries. This chassis can carry multiple devices to replace humans for efficient operations.

• High Load Capacity: Maximum load capacity of 120kg
• Environmental Protection: IP65 dustproof and waterproof rating suitable for variable climate environments
• Superior Climbing Performance: Can climb 35-degree slopes
• Fast Maneuvering Speed: Maximum speed of 2.0 m/s
• Modular Design: Four independent suspensions, left/right electrical control boxes, and batteries can be quickly disassembled

• 10-inch Touch Screen: High-definition anti-glare display with photography, video recording, storage, and playback capabilities
• Wireless Transmission: WiFi, hotspots, and 4G transmission support
• Thermal Imaging: Temperature measurement with false color switching, optional resolution, and selectable lenses for different usage distances and detection targets
• Multi-Gas Detection:

  Gas Type	Detection Range
  Methane	0-100% VOL
  Carbon Dioxide	0-5% VOL
  Carbon Monoxide	0-5000 ppm
  Nitrogen Dioxide	0-50 ppm
  Ammonia	0-100 ppm
  Oxygen	0-30% O2
  Humidity	0-100% RH
  Temperature	-20 to 100°C
