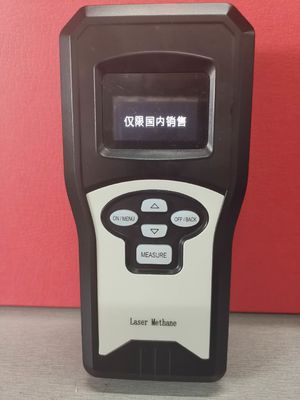

60m Portable Gas Detector Hand Held Remote Ch4 Analyzer

Minimum Order Quantity : 1set Price : USD8000-USD10000
Packaging Details : Aluminium case Delivery Time : 30days
Payment Terms : T/T Supply Ability : 200sets/month
Place of Origin: China Brand Name: TOPSKY
Certification: CE Model Number: JJB30-3

Detail Information

Name: 60m Test Distance Light Weight Small Size Hand-Held Remote Methane CH4 Gas Leak Detector Size: 132mm × 74mm × 36.5mm
Housing Material: ABS + PC Gas Type: Methane
Concentration Measurement Range: (0~99,999)ppm·m
High Light:

Remote Ch4 Analyzer

,

60m Ch4 Analyzer

,

hand held Ch4 Analyzer

Product Description

60m Test Distance Light weight small size Hand-Held Remote methane CH4 Gas Leak Detector

Overview

It uses tunable laser spectroscopy (TDLS) to quickly detect gas leaks up to 60 meters away.People can effectively detect hard-to-reach or inaccessible areas within safe areas, such as busy roads, dangling pipelines, tall towers, long haul pipelines, unattended rooms and more. Its use is not only effectively improve the efficiency and quality of walking inspection, but also makes easy which can not reach or difficult to reach the place of inspection possible.

60m Portable Gas Detector Hand Held Remote Ch4 Analyzer 0

60m Portable Gas Detector Hand Held Remote Ch4 Analyzer 1





Features:



1.Intrinsically safe products;

2. The gas (methane) is selective, free from other gases, water vapor, dust interference;

3. Detection distance: detection of methane and methane-containing gas leakage at a distance of 60 meters;

4. Small size, light weight, easy to carry;

5. Low power consumption, can work for a long time;

7. Superior shockproof, waterproof and dustproof performance;

8. Fast response, large measuring range and high measuring accuracy;

9. It can realize data recording and Bluetooth transmission function.

10.Detection method :harmonic laser spectrum theory

11.Detection of gas :CH4 (NH3 / HCL / C2H6 / C3H8 / C4-C6 optional)

12.Sensor type :infrared laser

13.Self-test function comes with self-test and calibration functions, without the need for daily calibration.




Technical Parametere

2.1 Basic parameters Concentration measurement range (0~99,999)ppm·m
Sensitivity detection distance

0-30m, 5ppm-m

30-60m, 10ppm-m%



Response time ≤0.1s
effective distance 0~60m
Distance measurement range ---
Concentration display resolution 1ppm·m
Distance meter m

Measurement accuracy:



± 10% @ 100 ppm-m (2m)
Display method LCD
2.2 Dimensions and weight Host size 132mm × 74mm × 36.5mm
Host weight About 360g
Housing material ABS + PC
outer covering protection rate IP65
2.3 Explosion-proof form Intrinsically safe Ex ib II C T4
2.4 Laser protection class Laser protection class

Class IIIR



2.5 Applicable environment Operating temperature -20~50℃
