3.2 Inch Touchscreen 8h Remote Methane Leak Detector

Minimum Order Quantity : 1set Price : USD9000-USD12000
Packaging Details : Aluminium case Delivery Time : 30days
Payment Terms : T/T Supply Ability : 200sets/month
Place of Origin: China Brand Name: TOPSKY
Certification: CE Model Number: JJB30-2

Detail Information

Name: 30m Test Distance 200-100,000 Ppm.m Measuring Range 3.2 Inch Touch Screen Hand-Held Remote Methane Laser Telemeter Detection Time: 0.1s
Screen: ◆3.2 Inch Screen/Touch Screen Mode Gas Type: Methane
Working Time: 8h Measuring Range: 0-100,000ppm.m
High Light:

touchscreen remote methane leak detector

,

3.2 inch methane leak detector

,

8h remote methane leak detector

Product Description

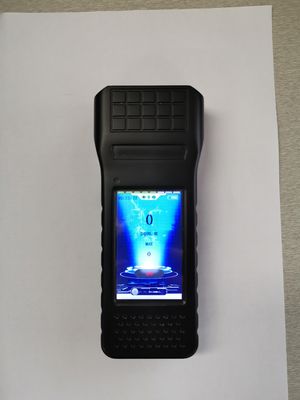

30m Test Distance 200-100,000 ppm.m measuring range 3.2 inch touch screen Hand-Held Remote Methane Laser Telemeter















1. Overview

The Hand-held laser remote methane gas leak detector uses tunable laser spectroscopy (TDLAS) technology to quickly and accurately detect gas leaks within a distance of 30 meters. Workers can effectively detect hard-to-reach or even unreachable areas in safe areas, such as busy roads, suspended pipelines, high-rise risers, long-distance transmission pipes, and unmanned rooms. The use not only effectively improves the efficiency and quality of walking inspections, but also enables inspections that were previously inaccessible or difficult to reach.

This product is suitable for overhead pipelines, risers or pipelines distributed in narrow spaces are difficult to reach, and become potential safety hazards; it is difficult to quickly sell leaks during emergency repairs, increasing on-site crisis, and daily pipeline inspections consume a lot of time And manpower, inefficiency, conventional detectors need to be recurring or periodic, and the process is cumbersome and unsuitable.

2. Features

◆ Safety level: intrinsically safe explosion-proof design;

◆ Detection distance: detection of methane and methane-containing gas leakage at a distance of 30 meters;

◆ Fast detection: the detection time is only 0.1 seconds;

◆ High accuracy: specific laser detection, only reacting to methane gas, not affected by environmental conditions

◆ Easy to use: automatic detection at startup, no need for periodic calibration, basic maintenance free

◆ Easy to carry: the design is in line with human-computer function, small size and easy to carry

◆ Friendly interface: system-based operation interface, closer to users;

◆ Ranging function: integrated distance measurement function;

◆ Excessive work: more than 10 hours of testing can be achieved in standard mode;

◆ Removable battery for easy replacement and extended working hours;

◆ 3.2 inch screen/Touch screen mode



3.2 Inch Touchscreen 8h Remote Methane Leak Detector 0



2.Technical indicators and performance

2.1 Basic parameters Concentration measurement range (0~100000)ppm·m
Accuracy

±100ppm @1000ppm·m

Value±10% @1000~100000ppm.m

Response time ≤0.05s
effective distance 0~30m
Distance measurement range ---
Concentration display resolution 1ppm·m
Distance meter m
Distance display resolution 0.01m
Display method LCD
2.2 Dimensions and weight Host size 178mm×75mm×33mm
Host weight About 400g(including battery)
Charging base size 89mm×64mm×12mm
Housing material PC material
outer covering protection rate IP54
2.3 Explosion-proof form Intrinsically safe Ex ib IIA T4 Gb
2.4 Optical parameter Gas measurement light Near Infrared (1650nm) Laser Safety Class ClassI
Ranging light Red (632nm) Laser Safety Class ClassI
Indicator light Green (532nm) Laser Safety Class Class IIIB
Optical power Meet the requirements of Article 6.6.2 of GB3836.1
2.5 Applicable environment Operating temperature -20~50℃
Working humidity ≤98%
Work pressure 68kPa~115kPa
Storage temperature -40~70℃
2.6 Power parameter Operating Voltage 3.5~4.2VDC
Working time ≥6h
type of battery Polymer lithium ion 4000mAh
Battery sealing material 6302 epoxy potting compound
Number of batteries 2pcs
Battery Life >2years
Charger input voltage 100~240VAC 50Hz/60Hz 0.2A
Charging output voltage 9VDC
Charging stand function With charging indicator and anti-overcharge function
