Hanging Track Patrol Inspection Robot LT-ZXD12 200W
Contact Person : Tina Yu
Phone Number : 86-10-57621296
WhatsApp : +8613683015302
| Minimum Order Quantity : | 1 set | Packaging Details : | Wooden case |
|---|---|---|---|
| Delivery Time : | 10 working days | Payment Terms : | T/T, Western Union |
| Supply Ability : | 100 Sets/Month |
| Place of Origin: | China | Brand Name: | TOPSKY |
|---|---|---|---|
| Model Number: | RLSDP-Ex100 |
|
Detail Information |
|||
| Name: | Explosion-proof Wheeled Patrol Robot Chassis | Protection Grade: | IP67 |
|---|---|---|---|
| Size: | 5.≤ Length 1150 Mm× Width 920 Mm× Height 430 | Load Capacity: | 100 Kg |
| Line Maximum Speed: | ≥1.5 M/s, Remote Control Continuously Variable Speed | Climbing Capacity: | 30° |
| High Light: | IP67 robot chassis,100Kg load capacity robot chassis,IP67 robot car chassis |
||
Product Description

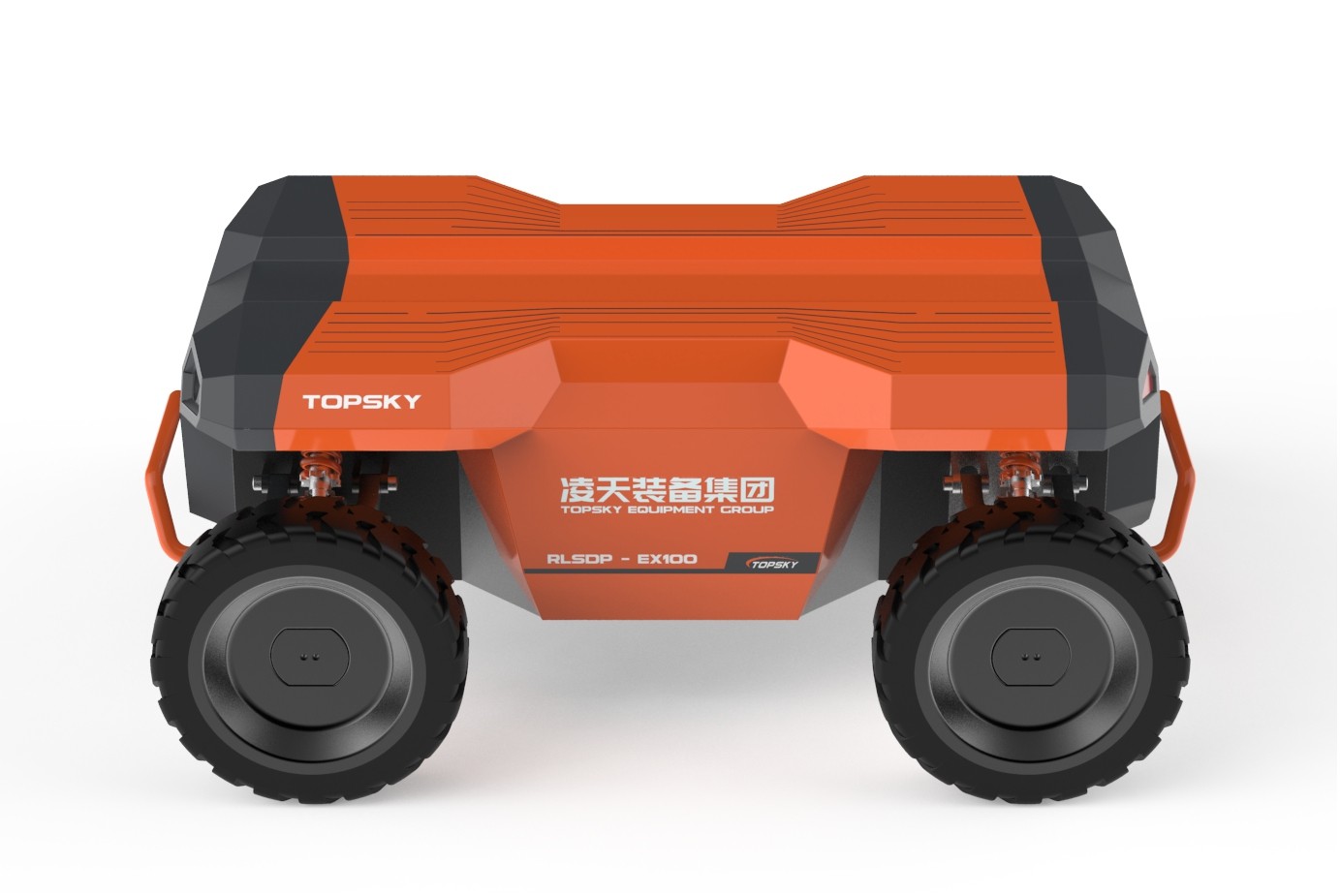

Explosion-proof wheeled patrol robot chassis
| I. Product overview |
| The wheel type explosion-proof chassis uses lithium battery power supply as the power source, can carry various forms, the original rotation design can make the transportation more flexible, the whole machine explosion-proof can be used in various large petrochemical enterprises; |
| II. Scope of application |
| ● large-scale petrochemical enterprises, tank areas, open-pit mines and other areas. |
| III. Product characteristics |
|
1. load capacity is large, can carry a variety of flexible equipment; 2. differential independent suspension structure, make the operation more stable, turn more flexible, can adapt to complex and changeable environment; |
| IV. Key technical indicators |
|
4.1 Robots: 1. Name: wheeled patrol robot chassis 2. Model: RLSDP-Ex100 3. ★ protection grade: IP67 of chassis body protection grade 4. Power: Electric, ternary lithium battery 5. ★ size :≤ length 1150 mm× width 920 mm× height 430 6. Weight :≤200 Kg 7. ★ load capacity :100 Kg 8. ★ line maximum speed :≥1.5 m/s, remote control continuously variable speed 9. ★ running deviation :≤2 per cent 10. Brake distance :≤10 mm 11. ★ climbing capacity :≥58 per cent (or 30°) 12. Altitude :90 mm, 13. Lateral stabilization angle :≥30° 14. ★ wading depth :300 mm 15. Capability :4 h 16. Distance :1000 m 4.2 Remote terminal configuration parameters 1. Dimensions :410*310*70 mm( No rocker height) 2. Full weight: kg 6.5 3. Display screen: not less than 10 inches high brightness LCD screen 4. Hours of work :8 h 5. Walking control function: there is a three-axis industrial rocker, a rocker to realize the robot forward, backward, left turn, right turn flexible operation 6. Lighting control function: yes, self-reset point switch, PC self-locking response 7. Auxiliary tools: Handheld remote control terminal shoulder strap, mobile tripod 4.7 Other: ★ emergency transportation scheme (optional): robot special transport trailer or robot special transport vehicle |
| V. PRODUCT APPLICATION |
| VI. Product configuration |
|
1. wheeled patrol robot chassis ×1 2. Handheld remote control terminal ×1 3. Car body charger (54.6 V)×1 set 4. Remote control charger (19.6 V)×1 set 5. Antenna ×2 6. Robot emergency transport vehicle ×1(optional) |
