Four Axis Eight Rotor Fire Fighting Equipment Drones In The Fire Service

Minimum Order Quantity : 1 set Delivery Time : 10 working days
Payment Terms : T/T, Western Union Supply Ability : 50 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: LT-UAVFW

Detail Information

Name: 16m/S Hose Mooring Type Tethered Drone Uav UAV Type: Four-axis Eight-rotor
Overall Dimensions: 1850mmx1850mmx800mm No-load Flight Time: 30-40 Min
Hovering Accuracy: Horizontal ±0.5m Safety Function: One-key Automatic Return To Home, Out Of Control Return Home, Low Voltage Alarm
High Light:

eight rotor fire fighting equipment

,

four axis fire fighting equipment

,

four axis eight rotor firefighting drone

Product Description



16m/S Hose Mooring Type Tethered drone Uav

The LT-UAVFW type water hose tethered fire extinguishing UAV is the latest self-designed by our company in response to the needs of high-rise urban firefighting. This drone can fully realize the long distance between the operator and the fire site through the high-altitude water spray fire extinguishing operation. The advantages of separation can well protect the personal safety of firefighters. The UAV has the characteristics of novel structure, stable and reliable performance, flexible operation, convenient maintenance, long water spray distance and large flow rate. The drone can be loaded on the fire truck and can be quickly launched. It is connected to the fire truck water tank through a special high-pressure hose. The efficient foam/water-based fire extinguishing agent inside the fire truck water tank is delivered to the drone platform. The spout is sprayed out horizontally to achieve the effect of extinguishing the fire.

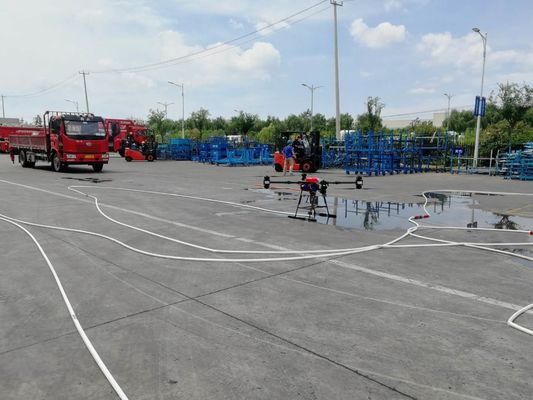

Four Axis Eight Rotor Fire Fighting Equipment Drones In The Fire Service 0



Four Axis Eight Rotor Fire Fighting Equipment Drones In The Fire Service 1



Overall performance parameters

UAV platform

1 UAV type: four-axis eight-rotor

2 Body wheelbase: 1850mm

3 Overall dimensions: 1850mmx1850mmx800mm (arm extended, blade extended)

650mmx650mmx800mm (arm folded)

4 Flight speed: 0-16m/s

5 Maximum relative flying height: 1200m

6 Maximum wind speed: 8m/s

7 Signal effective distance: 3-5 km (open without obstruction, without electromagnetic interference)

8 Body weight (including battery): 50kg

9 Maximum takeoff weight: 120kg

10 ★ Maximum payload: 60kg

11 No-load flight time: 30-40 min,

12 Cargo flight time: 12-15 min

13 Battery capacity: 12S*4@46000mah

14 Hovering accuracy: horizontal ±0.5m, vertical ±0.5m

15 ★Safety function: one-key automatic return to home, out of control return home, low voltage alarm

16 ★Flight mode: attitude/GPS full height setting (attitude mode height setting function: in the case of weak or missing GPS signal, the height setting function can still be realized, which is convenient for working between urban buildings with weak GPS signal)

4,Handheld ground station

1★Portable ground station, weight less than 1.5kg

2 ★ Life time: ≥1.5h

3★Control distance: ≥5km

4 Support all aircraft operations and powder fire extinguishing functions

5 Mobile terminal display, convenient and fast

Reconnaissance function

1 Front-facing 2 million pixel camera, convenient operation and fire detection

2 The headlamp can be turned on remotely: the headlamp can be turned on remotely, which is convenient for night lighting operation
