Broken Window Function Firefighting Drone Uav Hose Mooring Type

Product Description

Broken Window Function Firefighting Drone Uav Hose Mooring Type

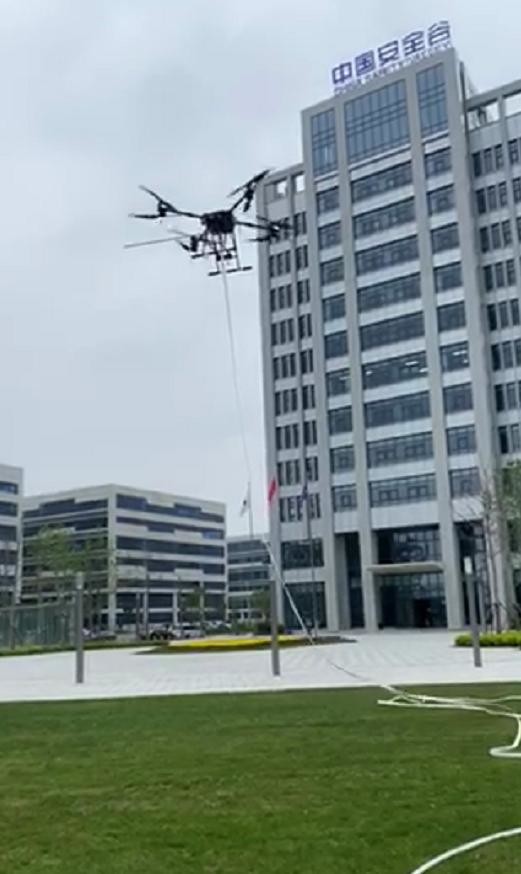

Electric Power Rescue Function Broken Window Function Hose Mooring Type Firefighting Drone Uav The Drone Is Mounted On A Fire Truck And Can Be Quickly Launched Into The Air. Firefighting Drone Connected To The Water Tank Of The Fire Truck Through A High-strength Flexible Pipeline. The High-efficiency Foam/water-based Fire Extinguishing Agent Inside The Fire Truck Is Delivered To The Drone Platform, And Then Through The Airborne Water Gun It Sprays Out Horizontally And Reaches The Fire Source To Achieve The Purpose Of Extinguishing Fire.

Rotor layout : Ten rotor

Power system: electric

Wheelbase: 2250mm

Expand: 2200mm X 2200mm X 1000mm

Collapse: 1050mm X 1050mm X 1000mm

Wind resistance level:Not less than level 6

Maximum take-off weight:90kg

Self-weight:25kg (without battery), 45kg (with battery)

Maximum flying altitude:500m

Maximum flight speed:8m/ s

Climb speed:5m/s

Decline speed:4m/s

Horizontal hover accuracy:±1.5m

Vertical hover accuracy:±1.5m

Waterproof performance:10L/S

Operating temperature:-10〜55°C

Obstacle avoidance performance:Load obstacle avoidance components, the X axis direction, the obstacle avoidance distance should not be less than 10m.

Navigation light brightness:The brightness of the navigation light of the system should not be less than 300cd/m2

Return accuracy:In the case of one-key return, the difference between the actual landing point and the take-off point is ±1m

Anti-static performance:Meet the requirements of test level 3 in GB/T 17626.2.

Resistance to radio frequency electromagnetic field interference:Meet the requirements of test level 3 in GB/T 17626.3

Vibration performance:X, Y, Z direction, resistance to 5-55HZ vibration

Reliability: Hovering in the air for 4 hours continuous flight, 100 consecutive takeoffs and landings without failure.

Power system safety: With power system redundancy function, the aircraft can land safely after one rotor system fails.

Flight control protection function: It has protection functions such as low voltage state alarm and automatic return to home.

Black box function: equipped with flight recorder: record the flight attitude, trajectory, altitude, power, GPS status, sensor interference and other information of the flight vehicle

Fire detection performance

Reconnaissance pod: visible light/infrared thermal imaging/laser ranging

Three-in-one compound pod

Basic functions: laser ranging, obstacle avoidance radar, flight control

Other information is superimposed on the video screen and transmitted back to the ground control station/remote control display.

Screen switching: can switch between infrared and visible light screens

Visible light performance: 4 million pixels, 60fds refresh rate, 10 times zoom.

Infrared thermal imaging performance: Wavelength: 8 Jie m ~ 14 Jie m

Resolution: 384X288 (columns X rows)

Detector pixel size: 17 umX17 u m

Focal length f: 20 mm

Laser ranging performance: laser measurement distance: 200m

Measurement accuracy: not more than o. 5m

Fire extinguishing performance

Fire extinguishing height: 100m

UAV deployment time: 1 minute 30 seconds

Jet flow: 78L/min

Shooting distance: 15 meters

The single jet dose is about 1.5 tons

Fire extinguishing agent: S-6 efficient water-based fire extinguishing agent

Extinguishing fire type: applicable to four types of fires: A, B, C, and D

Extinguishing area: not less than 100 square meters of Class 4 fire
