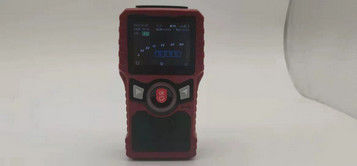

Infrared Laser Nh3 Portable Gas Detector 30m

Minimum Order Quantity : 1 set Price : USD6000-USD7000
Delivery Time : 10 working days Payment Terms : T/T
Supply Ability : 200 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: RALD-20

Detail Information

Name: Infrared Laser Nh3 30m Portable Gas Detector Measuring Range: 0-10% Vol (0 To 99,999 Ppm-m)
Detection Distance: Up To 30m Response Time: 0.1s
Alarm: Digital Flashing Alarm Sensor Type: Infrared Laser
High Light:

30m portable gas detector


nh3 portable gas detector


infrared laser portable nh3 detector

Product Description




Hand-held laser remote ammonia  gas leak detector (RALD-20)




1.Intrinsically safe products;

2. The gas (ammonia) is selective, free from other gases, water vapor, dust interference;

3. Detection distance: detection of ammonia and ammonia-containing gas leakage at a distance of 20 meters;

4. Small size, light weight, easy to carry;

5. Low power consumption, can work for a long time;

7. Superior shockproof, waterproof and dustproof performance;

8. Fast response, large measuring range and high measuring accuracy;

9. It can realize data recording and Bluetooth transmission function.

Technical Parameters

Detection method :harmonic laser spectrum theory

Detection of gas :NH3

Sensor type :infrared laser

Measuring range: 0-10000 ppm-m

Detection distance: up to 20m

Sensitivity detection distance: 0-15m, 5ppm-m

Measurement accuracy: ± 10% @ 100 ppm-m (2m)

Response time :0.1 s (1s such as ranging)

Alarm: digital flashing alarm

Display mode: LCD

Charging mode: charging seat, 110-240VAC, 50 / 60Hz

Power Supply: Rechargeable Lithium Battery (Replaceable Rechargeable Battery)

Working hours: work 10 hours if fully charged

Working temperature: -20 ℃ ~ 50 ℃

Relative humidity: ≤99%

Pressure: 80kPa-116kPa

External dimension: 132mm × 74mm × 36.5mm

Machine weight: 360g

Material :ABS + PC

Self-test function comes with self-test and calibration functions, without the need for daily calibration

Laser protection class: Class IIIR

Certification:Exia II CT6
Protection class: IP65

Optional Accessory:ergonomic strap
