Ackerman Wheeled Robot Chassis Ip65 120kg Max Load

Minimum Order Quantity : 1 set Price : USD10000-USD20000
Packaging Details : Export package Delivery Time : 30 days
Payment Terms : T/T, Western Union Supply Ability : 20 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: TIGER-02

Detail Information

Name: IP65 Protection Level 120kg Max. Load Ackerman Wheeled Robot Chassis Protection Level: IP65
Power: Electric, Lithium Battery Size: ≤Length 1015mm×Width 740mm×Height 445mm
Ground Clearance: 115mm Weight: ≤73kg
High Light:

120kg max load wheeled robot chassis

,

120kg load 4 wheel robot chassis

,

ackerman wheeled robot chassis ip65

Product Description

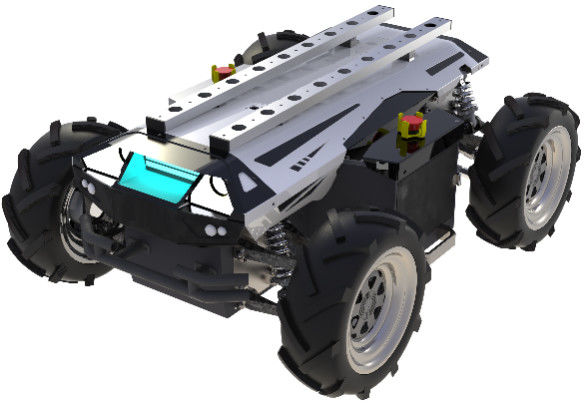

Ackerman wheeled robot chassis (TIGER-02)





1.The Ackerman wheeled robot chassis uses lithium battery power as the chassis power source, uses wireless remote control to remotely control the chassis, and can customize complex operation modes. The whole machine adopts Ackerman steering and front and rear double wishbone independent suspension structure, with IP65 dustproof and waterproof capability, and can operate in a variety of complex environments. At the same time, the whole machine adopts modular design, four independent suspensions, left and right electric control boxes and batteries can be quickly disassembled for maintenance and replacement. It can be equipped with a variety of equipment to replace people to perform high-efficiency operations.

2. Main technical parameters



2.1 Basic parameters of the chassis:

1. Name: Ackerman Wheeled Robot Chassis

2. Model: TIGER-02

3. ★Protection level: the protection level of the whole chassis is IP65

4. Power: electric, lithium battery

5.★Size: ≤Length 1015mm×Width 740mm×Height 445mm

6. Ground clearance: 115mm

7. Weight: ≤73kg

8.★Maximum load: 120kg

9. Motor power: 400W*1, 200W*1

10. Motor selection: 48V high-precision DC servo motor

11. Rotation method: Ackerman steering

12.★Maximum traveling speed: 2.0m/s (infinitely variable speed)

13. Maximum obstacle crossing height: 120mm

14. Maximum barrier width: 20mm

15.★Maximum climbing angle: 35° (cross-country tires)

16. Main body material: aluminum alloy/carbon steel

17. Surface treatment: oxidation/baking paint of the whole machine

18. Chassis tires: off-road tires (road tires, grass tires can be replaced)

19. Shock absorption system: four-wheel independent suspension

20.★Wade depth: ≥220mm

Ackerman Wheeled Robot Chassis Ip65 120kg Max Load 0
