20kg Load Ip68 Tracked Robot Chassis Small Size

Product Description

IP68 protection level light weight Small Tracked Robot Chassis

Overview

Small crawler robot chassis is suitable for car body bottom, shelf bottom and other narrow and low space. Chassis adopts crawler + front double swing arm structure, the whole machine is completely waterproof technology, can adapt to all kinds of terrain rapid combat deployment. Multi-function extension interface can be loaded with different mount modules. Chassis double swing arms can be freely disassembled, can be applied to more scenarios.

Technical parameters:

I-Basic chassis parameters:

1. Name: Small crawler robot chassis

2. Model: DRAGON-01

3.★Protection level: the chassis body is waterproof IP68

4. Power: electric, ternary lithium battery

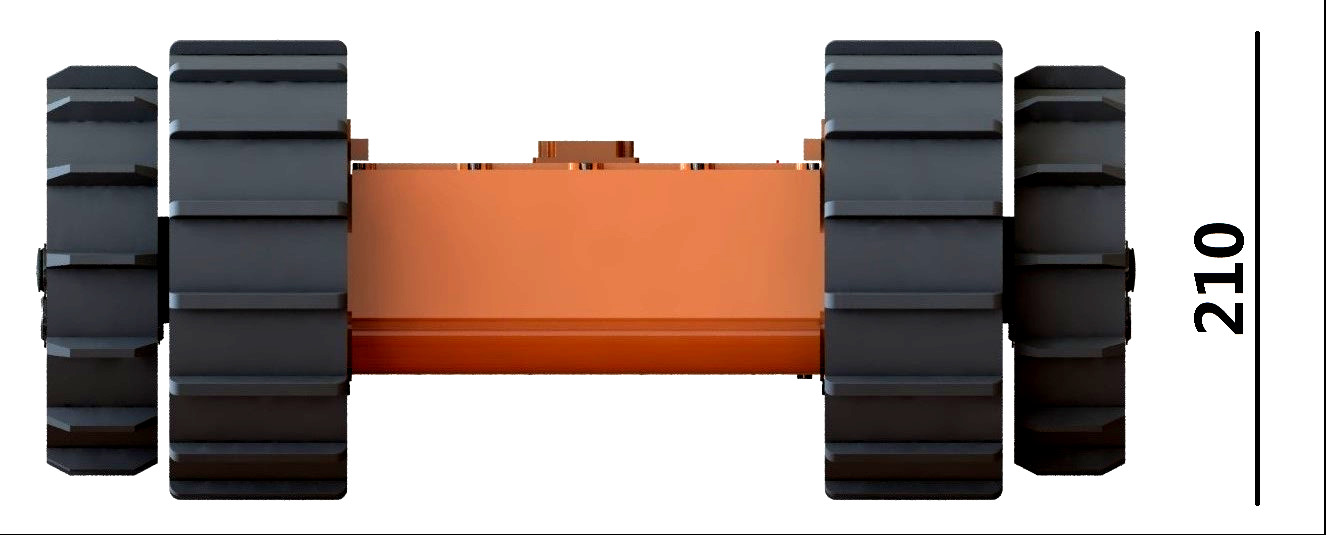

5. Chassis size: length 610mm × width 490mm × height 210mm

6. The cabin size≤length 255mm×width 200mm×height 85mm

7. Ground clearance: 55mm

8. Weight: 23kg

9. Maximum load: 20kg

10. Motor power: 180W×2

11. Motor selection: 24V high-precision DC servo motor

12. Steering mode: differential steering in place

13.★Maximum traveling speed: 2.7m/s

14.★Maximum obstacle height: 280mm

15.★Maximum barrier width: ≤410mm

16.★Maximum climbing angle: 45°

17.★Maximum climbing angle: 45°

18. Surface treatment: whole machine paint

19. Main body material: aluminum alloy

20. ★Chassis crawler: The crawler shall be made of flame-retardant, anti-static and high-temperature resistant rubber with built-in Kevlar fiber. With track derailment protection design;
