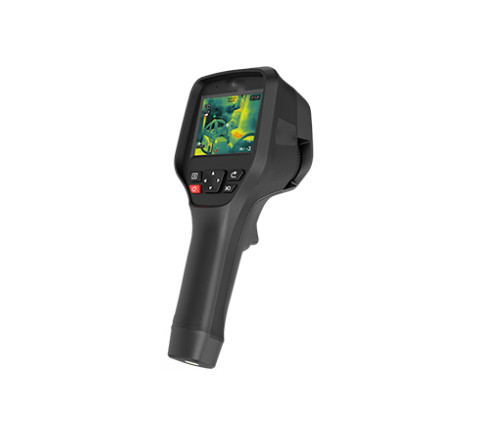

High Resolution Portable Gas Detector Uncooled Thermal

Minimum Order Quantity : 1 set Price : USD28000-32000
Packaging Details : Export package Delivery Time : 10 working days
Payment Terms : T/T Supply Ability : 20 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: LT-600C

Detail Information

Detector Type:: Uncooled Vanadium Oxide Detector Resolution: 640×512
Infrared Response Band: 7.0-8.5μm Detectable Gases:: Sulfur Hexafluoride, Ammonia, Ethylene, Vinyl Ether, Vinyl Chloride, Trichloroethylene, Methyl Vinyl Ketone, Propylene, Acrolein, Acrylonitrile, Ethyl Cyanoacrylate, Allyl Fluoride, Allyl Chloride, Allyl Bromide, Furan
Pixel Size:: 12μm Thermal Sensitivity:: 23mk@7-14um
Frame Rate:: 25Hz Focal Length:: 19mm
Field Of View Angle:: 23°x18°
High Light:

High Resolution Portable Gas Detector


Uncooled Thermal Portable Gas Detector

Product Description



With the development of modern industry, the chemical industry continues to increase, but the things emitted from the chemical industry production are not visible to the naked eye, which has been a difficult inspection problem, time-consuming and laborious. For gas leakage refrigerant (Freon), ammonia (NH3), sulfur hexafluoride (SF6) and other gases, the infrared thermal imaging can be used in a non-contact way to help you quickly locate the location of trace gas leakage.




  1. high definition with red external detector, gas detection is clearer, with custom band-pass filter detector and approximate cooling detector thermal sensitivity.
  2. can detect sulfur hexafluoride, ethylene, ammonia, freon and other gases.
  3. Versatile, easy to complete multiple tasks, ultra clear body with 3.5-inch touch screen, Irui Cloud services and support for complete analysis and other functions.


3.Main specification

1. Detector type: uncooled vanadium oxide

2. Detector resolution 640×512

3. Infrared response band: center wavelength 10.55μm

4. Detectable gases: sulfur hexafluoride, ammonia, ethylene, vinyl chloride, trichloroethylene, methyl vinyl ketone, propylene, acrolein, acrylonitrile, ethyl cyanoacrylate, allyl fluoride, allyl chloride, allyl bromide, furan

5. Pixel size: 12μm

6. Thermal sensitivity: 23mk@7-14um

7. Frame rate: 25Hz

8. Focal length: 19mm

9. Field of view Angle: 23°x18°

10. Focus mode: Manual focus

11. Temperature measurement range: '-20 ℃ -120 ℃

12. Temperature measurement accuracy: ±2% or ±2℃

13. Temperature resolution: 0.1°C

14. Temperature measurement mode: central point/cold hot spot tracking and temperature display

15. Custom point, line, area temperature measurement: movable point/line/area temperature measurement; Supports a maximum of 10 points, 10 areas, and 10 lines

16. Temperature measurement unit: Celsius, Fahrenheit, Kelvin

17. Emissivity setting: 0.01-1.00, step size 0.01

18. The ambient temperature is set to -10~50℃, and the step length is 1℃

19. Distance setting: 1-20m, step length 1m

20. Image mode: infrared, visible light, dual light fusion, picture in picture, detail enhancement

21. Temperature alarm: Yes

22. Temperature wide stretching: manual/automatic temperature range

23. Laser pointer: Yes

24. Visible phase: 500w pixels

25. Video and photo storage: XX-IR.jpg (infrared pictures with temperature data) and XX-DC.jpg (pure visible light pictures); Video without data

26. Display size: 3.5-inch touch screen (480x640)

27. Image naming: automatic/manual input naming, scan QR code naming

28. Memory card: Standard 32GB MicroSD card, maximum 512GB storage

29. Battery type: Rechargeable lithium battery, removable

30. Power interface: USB TypeC

31. Connection mode: USB, SD card, WiFi (AP mode or networking mode)

32. Charging time: about 3h

33. Working hours: about 3h

34. Cloud function: It can transmit shooting data to the cloud disk for multi-client sharing and secondary analysis; Supports automatic time synchronization

35. Power management: Automatic shutdown: 5 minutes, 10 minutes, 20 minutes, no automatic shutdown

36. Analysis software: PC&APP

37. Tripod support: Yes

38. Operating temperature: -10 to +50°C

39. Storage temperature: -20 to +60°C

40. Relative humidity: 10% to 95%, non-condensing

41. Dimensions (H x W x D) : 256.4 x 105.1 x 105.3mm

42. Weight: About 670g

4.Packing list
5V3A power adapter, USB cable, SD card, battery x2, battery charger.
