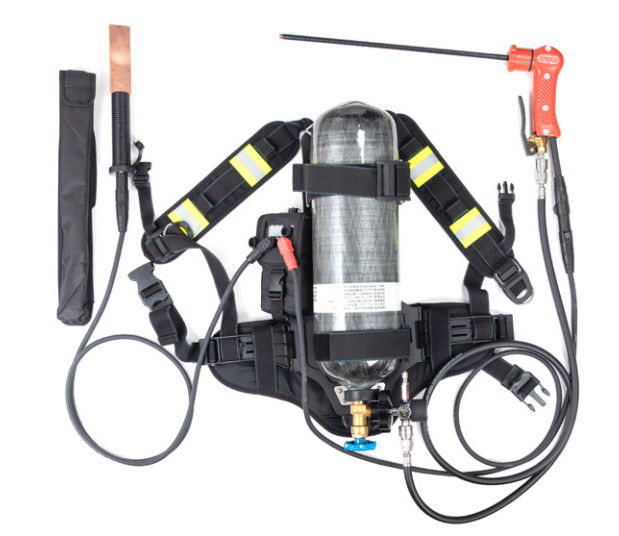

Under Water Rescue Cutting Tool Shoulder Back Metal Arc Amphibious Cutting Machine

1. 1, can be used for both water and land
2. 2, high flame temperature, fast cutting speed
3. 3, the cutting material thickness range is large
4. 4, low pressure alarm waterproof oxygen reducing valve
5. 5, waterproof lithium battery
6. 6. A new generation of quick-plug waterproof plug and socket
7. The whole set of equipment loading and unloading without tools design

1, appearance size: 620*400*220mm

2. Structure: knapsack type

3, temperature range: above -50℃ ~ below 60℃

4, carbon fiber oxygen cylinder volume: net volume 9 liters

5, oxygen cylinder pressure: 20MPA

6, lithium battery: working voltage 12V, current 165A. Can be ignited more than 50 times on the surface of the ignition material. Adopt the whole deep water waterproof sealing treatment, with power indicator light and power display switch button.

7, waterproof pressure reducing valve: low pressure alarm function design, double pressure gauge configuration, display the oxygen pressure and working pressure in the bottle, can be waterproof 100 meters

8, cutting thickness: 1-100 mm

9, standard cutting strip size: diameter: 9.5mm, length: 450mm,

10, standard oxygen pipe length: 1.8 meters; Extended oxygen pipe length: 3 meters

11, standard cable length: 1.8 meters; Extension cable length: 3 meters

12. Machine weight: 14kg
