Multi Purpose Long Range Detection Drone LT-Z15

Minimum Order Quantity : 1 set Price : USD35000-40000
Packaging Details : Export package Delivery Time : 15 working days
Payment Terms : T/T Supply Ability : 50 Sets/Month
Place of Origin: China Brand Name: TOPSKY
Model Number: LT-Z15

Detail Information

Maximum Take-off Weight:: ≥ 60kg Maximum Payload:: ≥ 30kg
Flight Duration:: 50 Minutes Dimensions:: ≤ 1880*1860*710mm
Maximum Ascent Speed:: ≥ 5m/s Maximum Descent Speed:: ≥ 3m/s
Highlight:

Long-range detection Drone

,

Multi-purpose detection Drone

Product Description

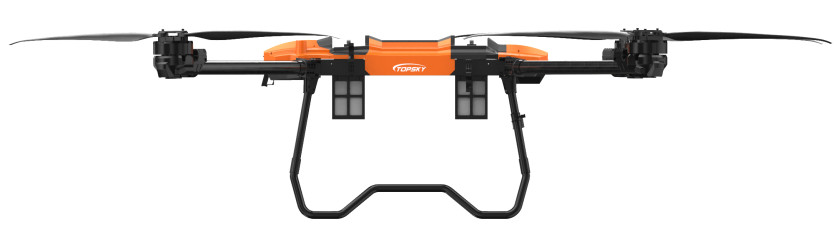

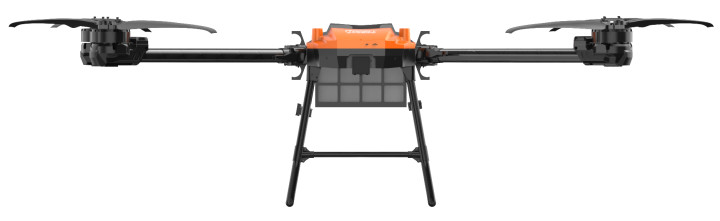

Multi Purpose Long Range Detection Drone  LT-Z15 0

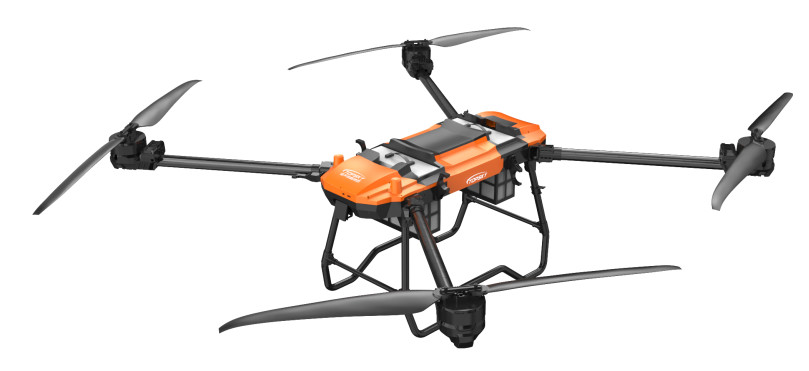

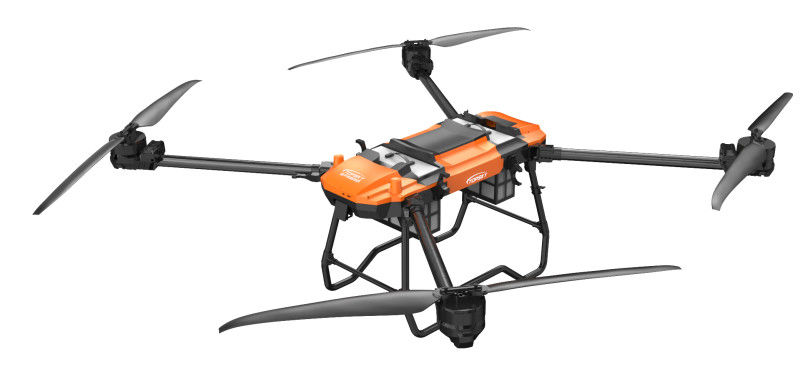

Multi Purpose Long Range Detection Drone  LT-Z15 1

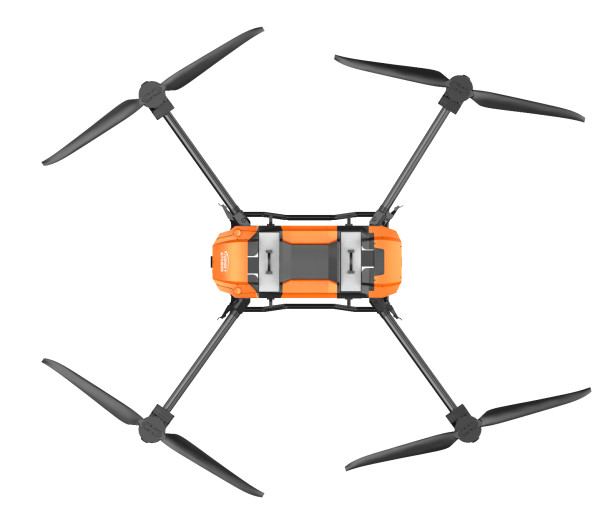

Multi Purpose Long Range Detection Drone  LT-Z15 2







1.Overview
This unmanned aerial vehicle is a multi-purpose detection and inspection drone developed by Beijing Lingtian Intelligent Equipment Group. It features a four-rotor fuselage design, with a large payload capacity, long endurance, and standardized load interface for folding the body, integrated avionics system, and also supports optional radar obstacle avoidance system. It can meet the industry applications in various scenarios such as fire fighting and extinguishing, emergency rescue, material transportation, and environmental monitoring.
2.Application
  • Forest firefighting
  • Emergency rescue
  • Material transportation
  • Environmental Testing









3.Feature



  • Heavy Load

Large payload, capable of carrying out large-scale firefighting operations.

  • Long battery life

Long endurance for fully loaded and effective flight operations

  • Multiple extension features

Multiple function systems and radar obstacle avoidance support are available as options.

  • Widely used

Can be applied to forest fire fighting, emergency rescue, and material transportation.





1.Main specification

4.1 Overall performance parameters

1. Maximum take-off weight:≥ 60kg

2. Maximum payload:≥ 30kg

3. Flight duration: 50 minutes

4. Mounting applications: Four optical cameras (30x zoom, wide-angle camera, infrared thermal imaging, ranging)

5. Gas detection: Has gas detection function

6. Intercom: Has intercom function

7. Positioning: Meets the relevant requirements of Beidou navigation positioning

8. Dimensions: ≤ 1880*1860*710mm

9. Wheelbase: ≤ 2420mm

10. Maximum ascent speed: ≥ 5m/s

11. Maximum descent speed: ≥ 3m/s

12. Radar detection range: ≥ 10m

13. Maximum wind resistance: ≥ 5 levels

14. Operating temperature: -20℃ ~ 45℃

15. Technical function requirements and main indicators should meet the relevant requirements of the Ministry of Emergency Management's "General Technical Requirements for Audio and Video Collection and Transmission at Disaster Accident Sites"
