Integrated Robot For Drainage And Demolitiont

Product Description

                                                               Integrated Robot For Drainage And Demolitiont

I. Product Overview

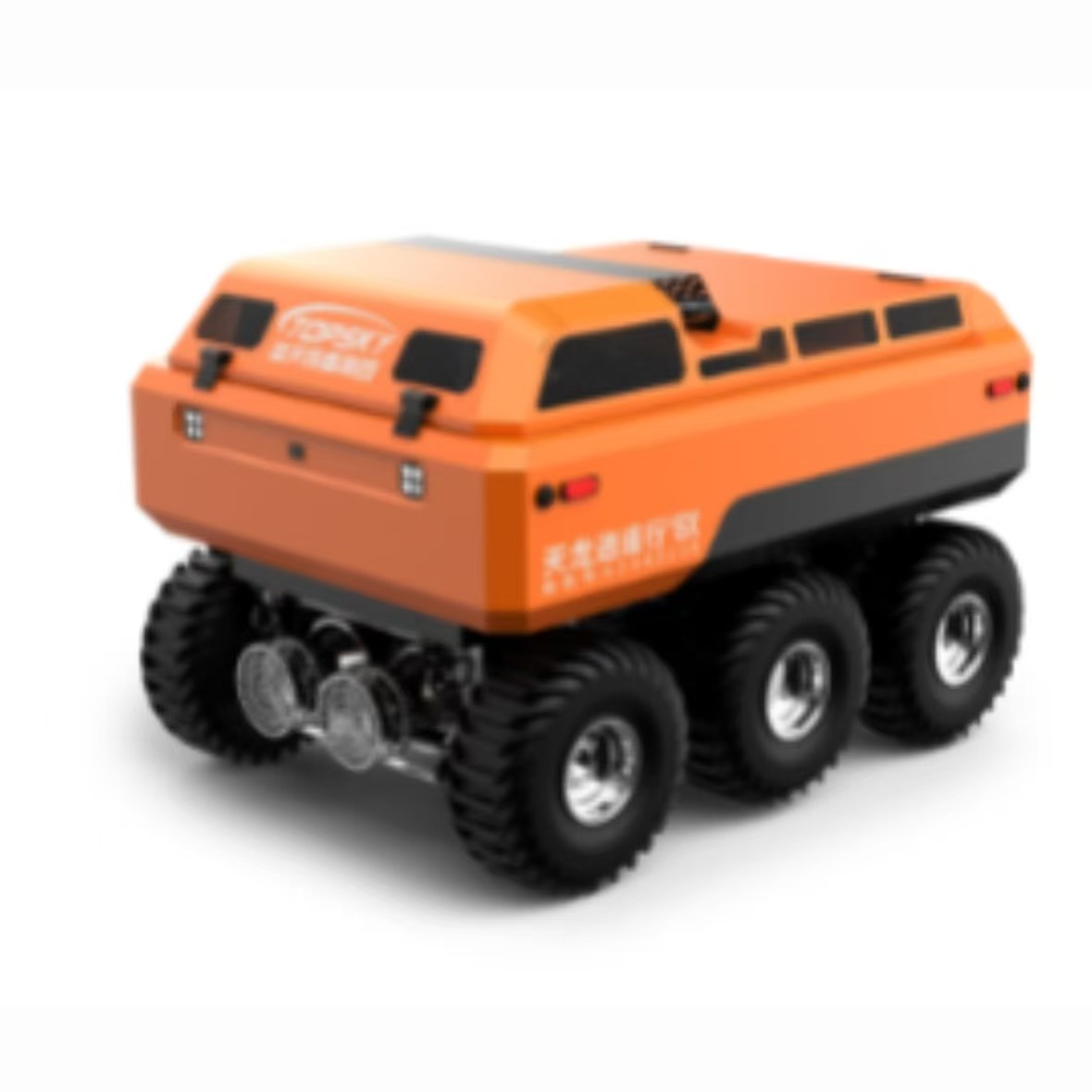

The RXR-Q200L drainage and demolition integrated robot is powered by a gasoline engine and driven by a hydraulic system. It can be controlled remotely via wireless remote control, wired remote control or vehicle body control. The drainage and demolition integrated robot can be used for drainage rescue in urban garages, subway stations, tunnels, culverts, and narrow urban roads. When a city suffers from a flood disaster and the underground garages, subways, tunnels, etc. accumulate excessive water, the drainage and demolition integrated robot can achieve rapid flood drainage rescue. This product has functions such as drainage, audio and video reconnaissance, underwater leakage detection, and disaster area environment reconnaissance. The water hose vehicle that comes with this product can simultaneously roll up 2 rolls of DN200 large-diameter water hoses. The robot is equipped with a water pump with large-diameter ports for sewage discharge, water release, and maintenance.

II. Scope of Application

Urban garage flood drainage rescue
Metro station flood drainage rescue
Flood drainage rescue in tunnel and culvert terrain
Drainage of narrow urban roads
Rescuing of reservoirs
As a water intake module for remote water supply

III. Product Features

1. Remote control start:
Without being obstructed by other objects, the remote control button can adjust the power reasonably, freely control the flow rate, and meet the actual needs on site.
2. Amphibious chassis:
It adopts a 6×6 wheeled chassis, driven by hydraulic power, equipped with vacuum tires, and also comes with an underwater propeller, which increases the efficiency of water travel. It is amphibious and can travel on all terrains.
3.  Diverse functions and wide application scenarios:
① Water supply: It can supply water to fire trucks, or serve as a remote water supply water collection module, without the need for a water collection platform, and can enter the water by itself; the flow rate is large and the water supply speed is fast;
② Drainage: The drainage flow rate is large (720T/H), the distance is far, it is easy to operate, and can be quickly deployed in place;
③ Strong adaptability: It has low requirements for water quality, can drain sewage and mud, and can pass through particles of 25mm.
4. Integrated electric large-diameter water hose reel vehicle:
The water supply and drainage robot is equipped with a large-diameter water hose reel vehicle, which adopts an electric rapid laying system. It is simple to operate and highly practical, solving the inconvenience of manual laying of water hoses and increasing the rescue time.
5. Remote relay:
If the water supply distance is too long, a water supply and drainage robot can provide additional support in the middle.

IV. Main Technical Specifications

1. Reserved hydraulic output interface
2. Driving form adopts hydraulic drive
3. Utilize amphibious vacuum tires
4. Can be remotely controlled, the remote controller has fuel tank level alarm indication
5. Remote control for lifting and water intake ports, can be used for low water level drainage
6. Maximum drainage volume: ≥ 207.3L/s
7. Overall dimensions: ≤ Length 2150 * Width 1430 * Height 1330mm
8. Total machine weight: ≤ 795.9kg
9.  Traction force: ≥ 4900N
10.  Load capacity: ≥ 350kg
11. Driving speed: ≥ 5km/h
12.  Chassis form: 6 X 6 drive mode, hydraulic vacuum tire chassis
13. Engine power: ≥ 40hp
14. Minimum ground clearance: ≥ 155mm
15. Obstacle clearance height: ≥ 307mm
16.  Crossing ditch width: ≥ 653mm
17. Driving speed: 0-5Km/h, stepless speed change;
18. Slope climbing angle: ≥ 35°
19. Side inclination angle: ≥ 32°
20.  Turning radius: 1200mm
21.  Remote control distance: ≥ 1031m
22. Headrise: ≥ 7m
23. Water intake depth: ≤ 157mm
24.  Continuous working time of the robot with full fuel tank: ≥ 8h
