Fire rescue reconnaissance robot

Product Description

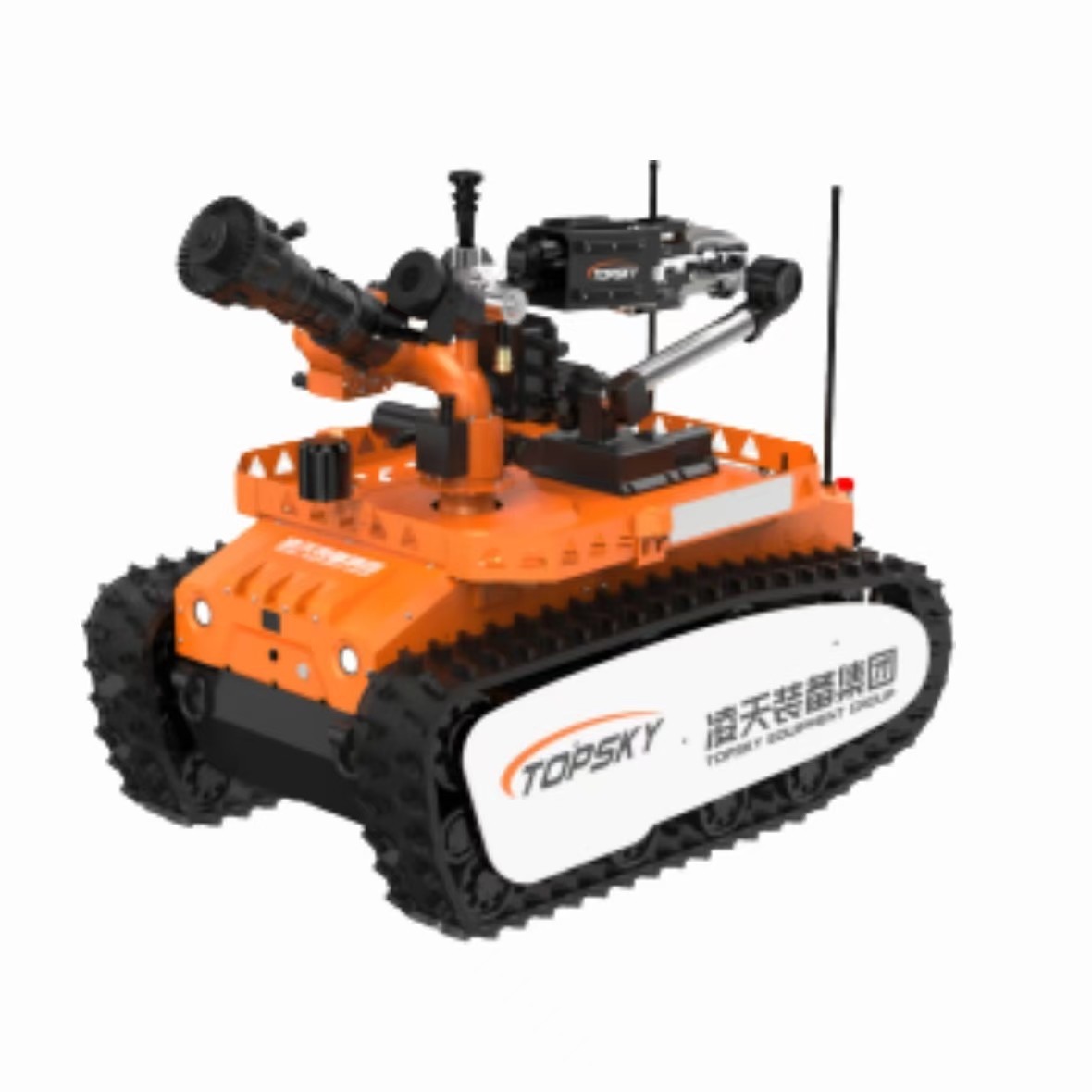

                                                                          Fire rescue reconnaissance robot

1. Product overview.

1.Main functions: The tracked explosion-proof robot chassis uses lithium battery power as its energy source and is operated remotely via wireless control. Equipped with a 6-degree-of-freedom bomb disposal manipulator, it can rotate at different angles and lift objects weighing up to 50 kg. Horizontally, it can handle objects weighing up to 10 kg. The robotic arm is also equipped with an explosive disposal device for on-site destruction of explosives. The track and single pendulum arm structure allows for rapid deployment in various terrains. Additionally, the robot is equipped with a radar life detection device, which uses electromagnetic waves to penetrate certain thicknesses of obstacles and detect vital signs of human survivors, such as breathing and heartbeat, in order to locate them.

2. Scope of application

Rescue operations for large-scale fires in petroleum and chemical enterprises:

Places prone to collapse, such as tunnels and subways, require entry for firefighting and rescue.

Rescue operations in environments with potential explosive gas or liquid leaks.

Rescue operations in environments with thick smoke or toxic gases.

Firefighting and rescue operations in close proximity, where personnel are at risk of injury.

Firefighting and rescue in hazardous situations.

3.Product features.

High explosion protection level

Overall rating: Ex d ibIIB+H2T6 Gb

Battery explosion protection level: Exd[ib] II CT6Gb

2. High protection level

Overall protection level: IP67

Chassis protection level: IP68

3. Fast travel speed

Reaches 6.51 km/h, which is 3 times higher than industry standards.

4.Versatile functionality

Equipped for firefighting, reconnaissance, transportation, and especially for transporting rescue equipment and supplies (such as hoses, gas masks, positive pressure air respirators, firefighting suits, and breaking tools).

5. Laser obstacle avoidance

Detects up to 50 meters; operates at half speed within a 5-meter range, stops within 2 meters.

6.Mechanical arm preset positions and reset function

3 quick preset positions

1 single-button reset function

7. Multiple degrees of freedom for the mechanical arm (6 in total)

4.Main technical indicators.

1. Power: Electric, ternary lithium battery

2.  Dimensions: ≤ Length 1305mm × Width 800mm × Height 1065mm

3.  Turning Diameter: ≤ 1425mm

4.  Weight: ≤ 490kg

5.  Traction Force: ≥ 3800N

6. Dragging Distance: ≥ 80m (dragging two DN80 full water hoses)

7.  Water/Foam Flow Rate: ≥ 81.4L/s water, ≥ 81.6L/s foam

8.  Maximum Straight Line Speed: ≥ 1.81m/s, remote control with stepless speed change

9.  Straight Travel Deviation: ≤ 0.30%

10. Braking Distance: ≤ 0.16m

11.  Climbing Ability: ≥ 83.9% (or 40°)

12. Obstacle Crossing Height: ≥ 240mm

13. Mechanical Arm Load Capacity: Rated to lift 25KG, maximum 50KG

14. Side Tilt Stability Angle: ≥ 40 degrees

15.  Water Wading Depth: ≥ 500mm

16. Continuous Travel Time: 2h

17. Reliability Working Time: Passed 16-hour continuous stability and reliability test

18. Remote Control Distance: 1110m

19. Video Transmission Distance: 1110m

20.  Load Capacity: Equipped with a cargo box, capable of transporting rescue supplies to disaster sites

21.  Panoramic Monitoring Function: Can remotely display 360-degree images of the robot body

22.  Posture Display Function: Real-time detection of the robot's pitch and roll angles, allowing operators to accurately grasp the robot's status and transmit it to the remote control terminal for correct command operations
