YSR-3D 3D Radar Life Detector

Minimum Order Quantity :	2	Price :	USD28000/PCS
Delivery Time :	5-8 WEEK DAYS	Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	TOPSKY

Product Description

Product Description

Overview:

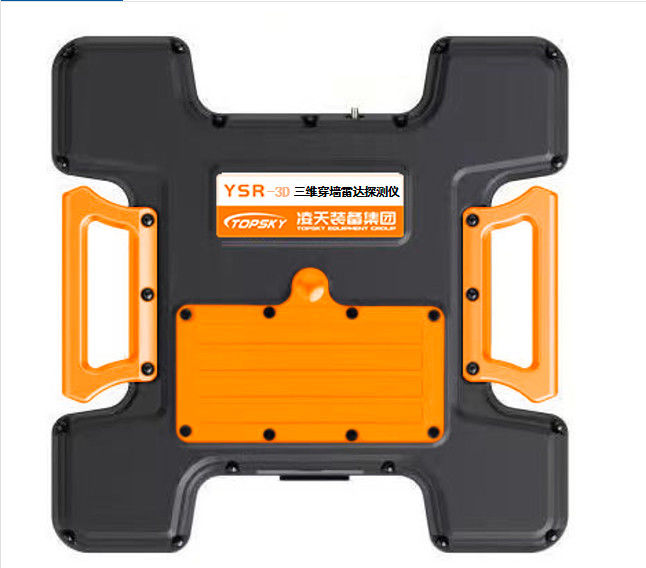

The three-dimensional radar life detector is composed of a three-dimensional radar detector, an operation terminal (tablet), a tripod, spare batteries, etc.

The 3D radar life detector is a portable high-performance through-wall imaging system used to obtain timely and accurate information about hidden personnel targets behind walls. The uniqueness of the detector lies in its ability to provide real 3D images of the targets behind the walls. These 3D images are of high resolution and high clarity, enabling rapid location of hidden personnel behind obstacles such as walls, tracking their movement patterns, and distinguishing hostages from terrorists. Therefore, it offers unparalleled situational awareness of the unseen environment behind walls and is highly suitable for intelligence, surveillance, and reconnaissance missions.

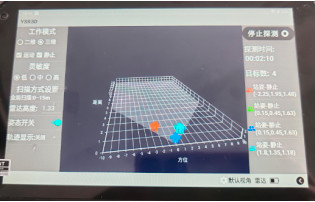

The three-dimensional radar life detector features two-dimensional positioning and three-dimensional imaging. The operation terminal can receive and process radar information, and display the data on a tablet. It is simple to operate, has a friendly interface and is extremely easy to use.

Features:

Fire rescue and firefighting

Chemical accident rescue
Earthquake and landslide rescue
Emergency rescue
Water rescue
Security inspection, customs and border control detection

Specification:

High penetration capability: Can penetrate through concrete, brick walls and other standard building materials, as well as soil, rocks, wood and other non-metallic objects with low moisture content. It can penetrate a 50cm brick-concrete wall, two 30cm brick-concrete walls, and can reach a stationary living organism at a distance of 20m and a moving living organism at a distance of 30m.
2. Intelligent Detection: Can simultaneously detect 5 living beings. Different colors are used to distinguish the targets, and intelligent alerts are given for moving and stationary living beings.
3. Multiple working modes: Supports two-dimensional positioning, three-dimensional imaging, full-area scanning, step-by-step precise scanning, trajectory detection and other various working modes.
4. Long communication range: The radar control panel can be remotely operated wirelessly over a long distance. In open areas, the communication range is not less than 100 meters.
5. High Precision: High positioning accuracy and high sensitivity
