Product Description
Overview:
The C7 silent electric drill, also known as a low-noise electric drill, is used to detect activities in the adjacent room. It is mainly applied in special security operations, etc. It can drill holes on the wall using the silent electric drill in complete silence, and then observe the inside of the room through a mirror. It is a special equipment used for various reconnaissance operations in dangerous environments.

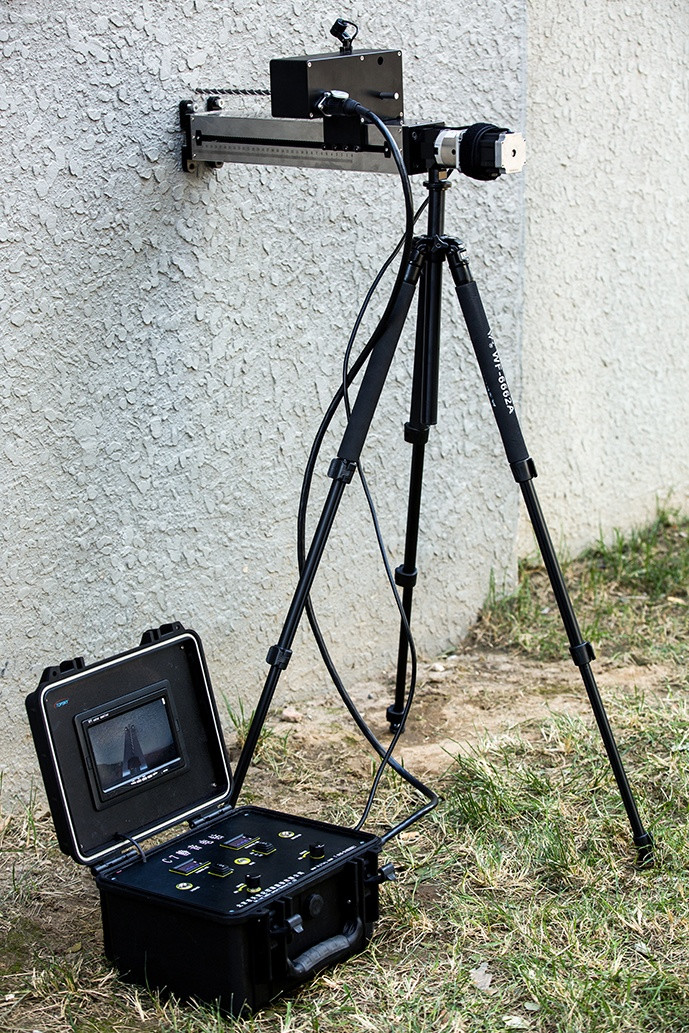

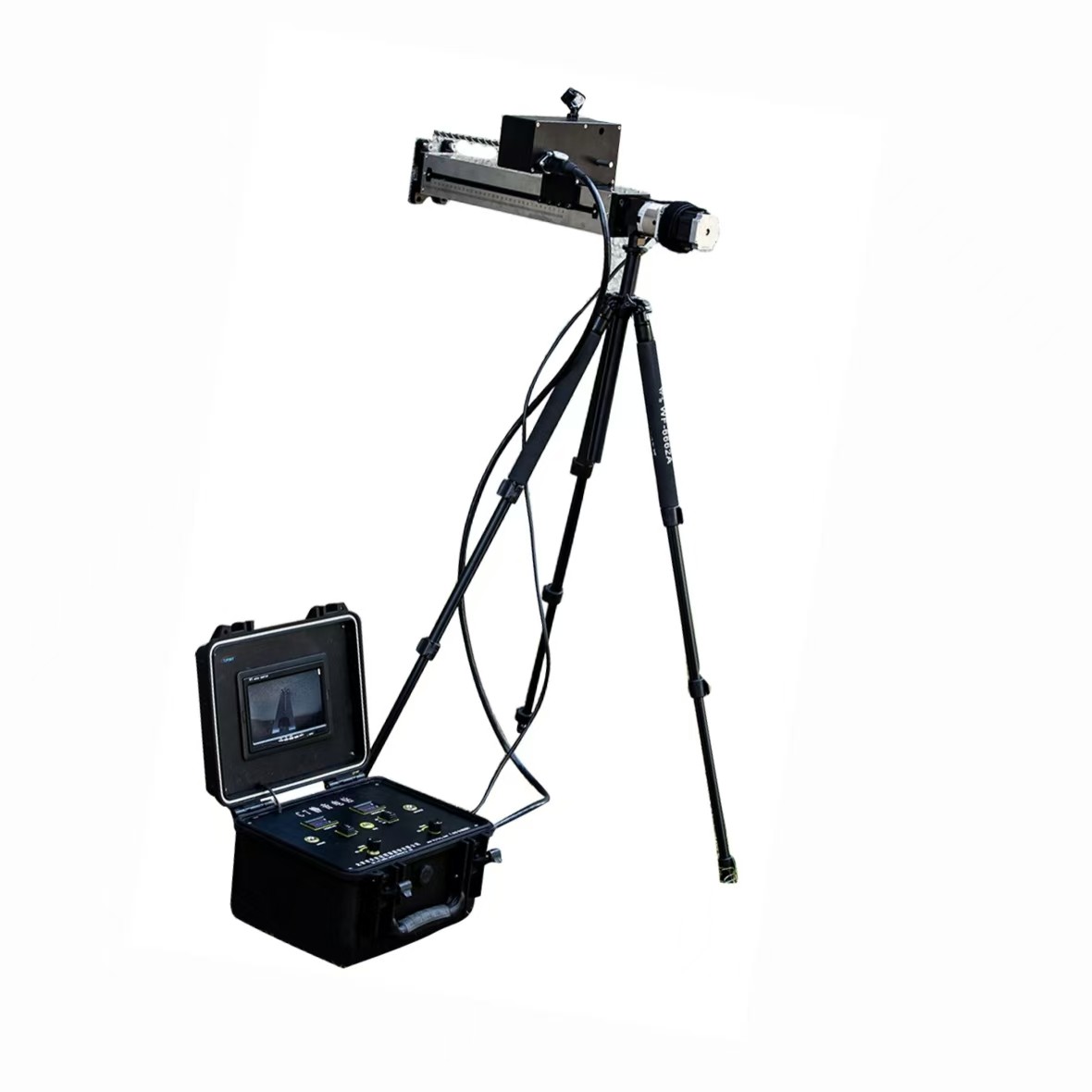

The entire complete system is packed in a carrying case and can be quickly installed and set up. The operation is simple. In counter-terrorism operations, understanding the internal situation of the room is of vital importance. The silent electric drill can drill holes in the wall without being noticed by the criminals, and then insert the snake-eye probe to observe the internal condition of the room.
The product is easy to operate and has multiple modes including automatic guide rail and manual advancement. It features high torque, low noise, and is safe and reliable. It can drill holes on structural surfaces or specific positions made of materials such as concrete, red bricks, tiles, glass, and various metals.
The equipment is equipped with its own voltage display, which can show the current, adjust the propulsion speed, and detect the remaining power; it is also equipped with a fixed depth scale, which can monitor the drilling depth and thickness.
Features:
Extremely low noise, with a no-load level of less than 35 decibels;
Equipped with a built-in guide rail propulsion system, it can adopt both automatic and manual propulsion modes.
It has two types of automatic drilling functions: one is to stop working when the set depth reaches the target value; the other is to return automatically and stop when the set depth reaches the target value.
Equipped with a high-precision control system, it can automatically move forward or backward according to the load capacity.
Dual power and current display, allowing for a clear understanding of the battery reserve time;
The control system is equipped with a dual power supply (AC and DC) energy-saving system, and is also equipped with an independent large-capacity replaceable lithium battery.
Adjustable light source LED lighting system. By simply rotating your finger, you can achieve different lighting effects.
The sliding rail structure design has reduced the operational difficulty factor.
The sliding rail and the deceleration motor are designed in a side-by-side manner, which increases the depth of a single drilling operation and shortens the overall length of the machine body.
The automatic propulsion design allows you to free up your hands to do other things.
The quick disassembly structure design enables the seamless switching of the drilling advancement mode with ease.
The fixed-depth pointer design enables precise positioning and allows for controlled target depth.
Speed: 0 - 120 RPM
2. Basic functions: Adjustable speed, variable forward and reverse rotation, equipped with LED lighting, and voltage display.
3. Drill holder size: 4mm, 5mm, 6mm, 8mm, 10mm. A variety of sizes are available, suitable for multiple types of endoscopes.
Using the jacket installation method, the drill bit is held more firmly. The maximum working size is ≥ 600MM and it can be adjusted arbitrarily.
4. Torque: ≥ 50 Nm
5. System volume: ≤ 30 decibels
6. Power Supply: Built-in maintenance-free lithium battery, no need for external power supply.
7. Charging: It can be charged quickly using 220VAC power supply. An external portable multi-function power supply can be connected for charging. Charging time: ≤ 4 hours
8. System: Intelligent integrated system. The device body is equipped with voltage and current display functions, allowing for direct monitoring of current magnitude to determine the load force within the wall and the remaining battery capacity. The working time exceeds 10 hours.
9. Lighting: The device is equipped with an LED aperture, enabling it to operate in dark or other challenging conditions.
10. The entire machine and its accessories are integrated into one box, making it convenient to carry.
11. ★ Tested by the Ministry of Public Security's Quality Inspection Center for Security and Electronic Products, original copies are kept for reference.
★ Possesses intellectual property rights.
★ The product is equipped with a silent electric drill control system software, and the computer software copyright registration certificate is provided, with the original copies kept for reference.
Product Configuration:
1. Detachable mounting plate 1 set
2. External guide rod 140mm (with depth dimension)
3. External guide rod 200mm (with depth dimension)
4. External guide rod 300mm (with depth dimension)
5. Alloy steel drill bit 1 piece
6. Multi-functional drill bit 5 pieces
7. Glass drill bit 1 piece
8. Ceramic tile drill bit 4 pieces
9. Hexagonal socket wrench 1 set
10. Wrench 1 piece
11. 6-inch fish tong 1 piece
12. M6 wall internal explosion bolts 20 pieces
13. M6 hexagonal bolts 20 pieces
14. Optional pinhole endoscope
