Wall-penetrating radar YSR-120

Minimum Order Quantity :	2	Price :	USD38000/PCS
Delivery Time :	5-8 WEEK DAYS	Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	TOPSKY

Product Description

Product Description

Overview:

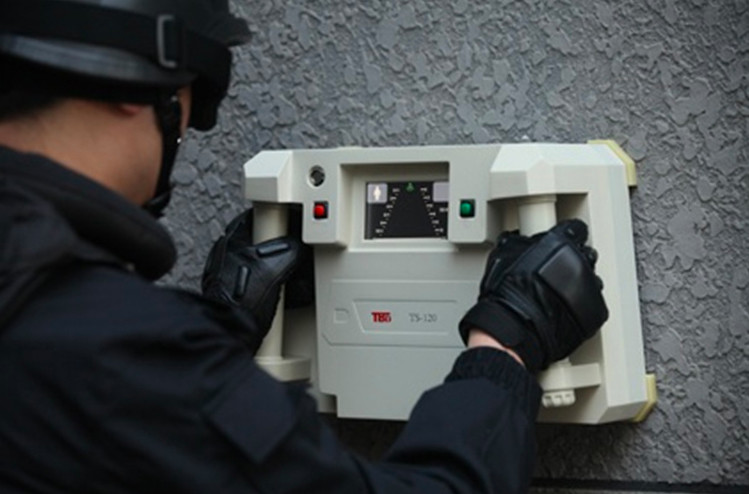

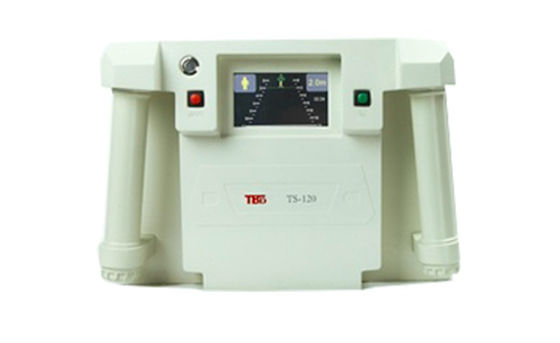

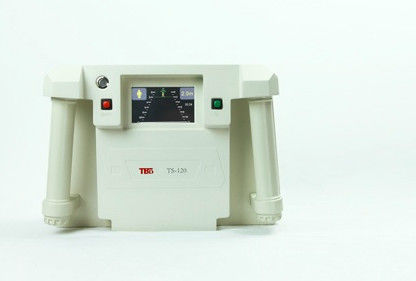

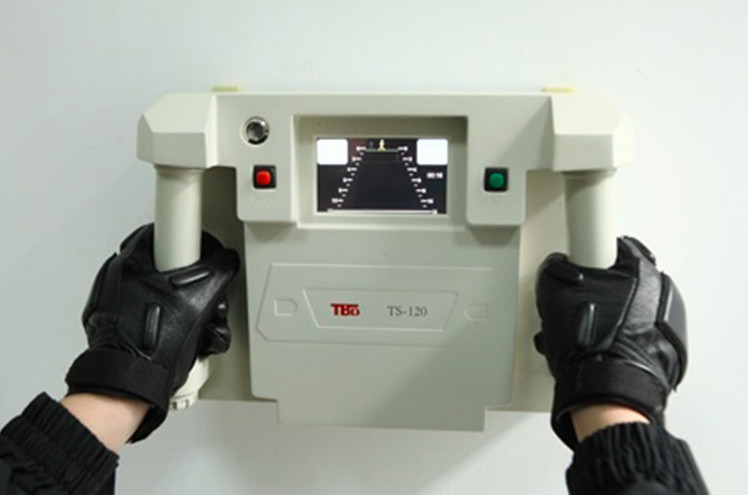

The YSR-120 type through-wall radar is a portable handheld through-wall life detection device. This product is small in size and can be held in hand. It can detect and locate the human body based on the tiny movements of life activities.
This product is specifically designed for special security protection and emergency service industries. When professionals cannot obtain relevant information through other methods, the radar can penetrate doors, brick walls, stone slabs and concrete walls, providing a comprehensive coverage of the interior space, quickly assessing the conditions inside the room and obtaining the location information of hidden unidentified human bodies and moving objects. It can be used in tactical assaults, security protection, hostage rescue, search and rescue of injured persons, breaking through to enter (finding an effective and safe entry point), etc.

Features:

The YSR-120 wall-penetrating radar is developed based on ultra-wideband impulse pulse radar technology. It emits electromagnetic pulses through an ultra-wideband antenna. When the antenna is in front of a human body, such as when the person is walking, standing still, or moving their arms, it will reflect electromagnetic waves carrying human life characteristic signals. After processing these signals, the radar can restore the features of the human target, such as distance and movement trend, and display the detection results on the screen, thereby achieving the function of "life detection".

Specification:

Detection range: Detection range is 12 meters;
Field of view: Horizontal angle of 120°, vertical elevation angle of 120°;
Target response time: < 2 seconds;
Materials for penetrating the wall: cement, gypsum, red bricks, concrete, reinforced concrete, earth bricks, plastered bricks, and other standard building materials;
Frequency range: 600 MHz to 1800 MHz;
Dimensions: 380x254x140;
Weight: 1.4kg;
Working temperature: -10ºC to +50ºC;
Continuous working time: ≥ 4 hours.
Optional for multiple targets: up to 4 people.
