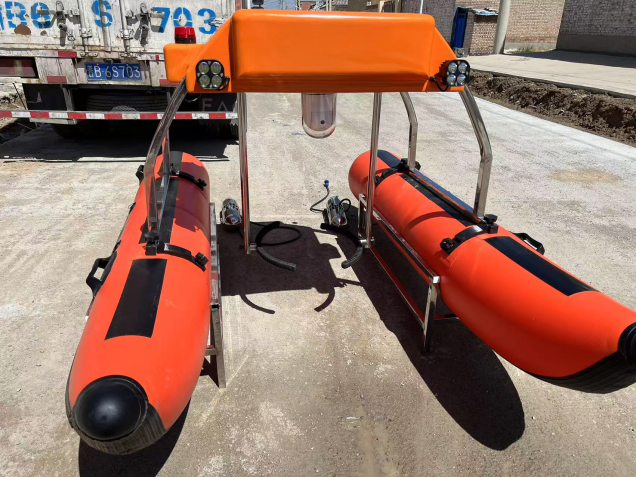

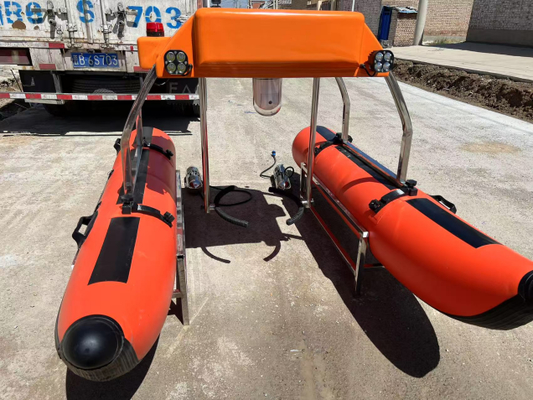

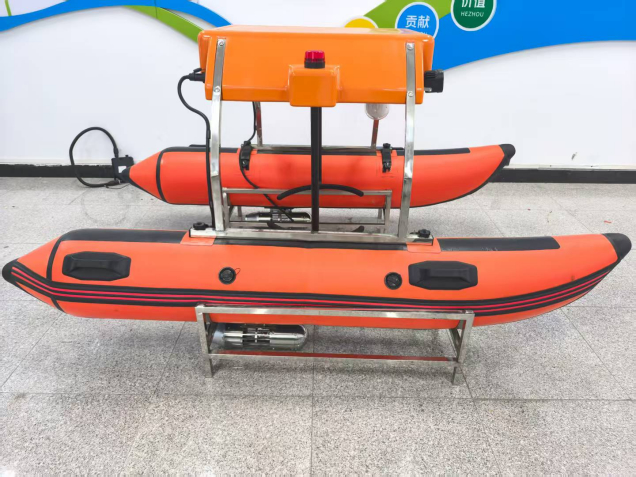

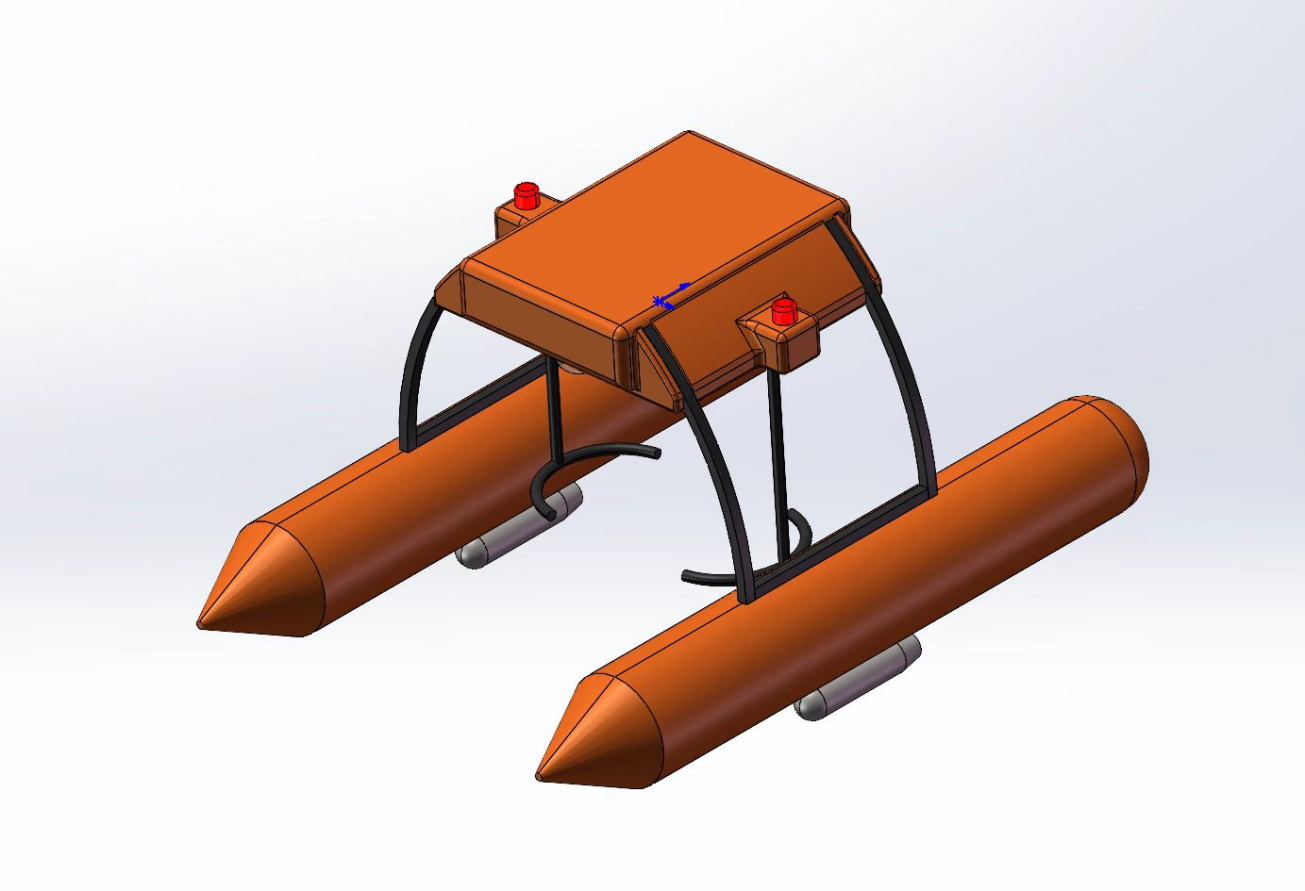

Remote control High-definition real-time monitoring water rescue robot

As an advanced rescue device, the water rescue robot integrates a highly intelligent design, which has brought revolutionary changes to water rescue operations. This cutting-edge equipment is not only equipped with a high-definition real-time monitoring system to ensure that the rescue site is clear at a glance, but also cleverly integrates the flexible robotic arm operation function, which can accurately perform complex rescue tasks, such as grabbing trapped people and transferring heavy objects.

Suitable for a wide range of water environments, including turbulent seas, deep reservoirs, turbulent rivers and tranquil lakes, the water rescue robot has become a powerful assistant in various water rescue scenarios with its excellent adaptability and stability. Through remote precision control, rescuers can safely be located on shore or in a safe area to perform rapid life-saving operations, emergency material transportation and complex rope traction tasks, thereby greatly reducing the risk of rescuers directly wading in water and significantly improving the efficiency and overall safety of rescue operations.

(i) Remote intelligent control

The water rescue robot is equipped with an advanced wireless remote control with a range of more than 1,000 meters, which enables accurate and correct control of the robot's direction and speed. This remote control technology not only ensures that the robot can respond to commands quickly, cross complex water environments, and reach the rescue site directly, but also greatly improves the timeliness and flexibility of rescue operations.

(ii) High-definition real-time monitoring

The integrated high-definition camera and cutting-edge image processing system complement each other, providing rescuers with clear and smooth real-time video images on the water. This function allows the rescue team to grasp the situation on the scene in real time and make more accurate and efficient decisions, laying a solid foundation for the successful implementation of the rescue operation.

(iii) Efficient rescue robotic arms

The robot is equipped with two exquisitely designed and flexible robotic arms that can perform accurate grasping and moving operations on the water surface. Whether it is rescuing trapped people or carrying important materials, these two robotic arms can demonstrate extraordinary efficiency, greatly expanding the robot's rescue capabilities.

1. Robot size: length 2400mm*width 1500mm*height 1200mm;

2. The buoyancy of the robot float is 2.02KN, equivalent to 200kg;

3. Robot weight 80±10kg

4. The number of grippers of the robot arm is 2;

5. Specifications of the gripper: it can move horizontally left and right, and the gripper can adjust the angle by 180°;

6. The opening and closing time of the gripper is less than 10s;

7. The gripper controls the load weight of 150kg;

8. The total power of the motor is 5KW;

9. The forward thrust of the robot on water is 1000N, which is equivalent to 100kg in unit conversion;

10. The dragging force of the robot on water 1500N;

11. Maximum speed without load is 16 km/h, and the speed with load of 75 kg is 10 km/h;

12. Battery specifications and battery life: DC voltage 48V capacity 2000Wh, charging current 15A, charging time less than 3h;

13. Battery life mileage: uniform speed battery life 80min, battery life mileage 20km;

14. Remote control distance 800m;

15. The front end of the robot is integrated with a 360° all-round rotating monitoring system, which can wirelessly transmit panoramic high-definition images (1080p) of the working area to the control terminal;

16. It has path planning, one-key return, and loss of connection return functions.
