Double Swing Arm Tracked Robot Chassis 4.9M Extend Length 1.9m/s Speed

Contact Now

Double Swing Arm Tracked Robot Chassis 4.9M Extend Length 1.9m/s Speed

Place of Origin:	china	Brand Name:	topsky

Detail Information
Extend Length:	4.9M	Break Locks:	8
Pressure:	８０mpa	Color:	Black
Height Open:	1.46M	Angle:	120degree
Detect Distance:	More Than 2.5km	Use Angle:	0 ° -360 °
False Alarm Rate:	1%	Shelf Life:	Eight Years
Insert:	Du-Pont Kevlar Multi Layer	Supporting:	Adjustable Tripod With Wheel
Peak Power:	≥ 4W	Launcher:	500mm
Video Resolution:	19201080 1280720 640*360
Highlight:	Double swing arm robot chassis , Tracked robot chassis 4.9m extend , Counter terrorism robot 1.9m/s speed

Product Description

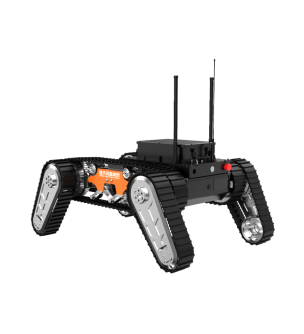

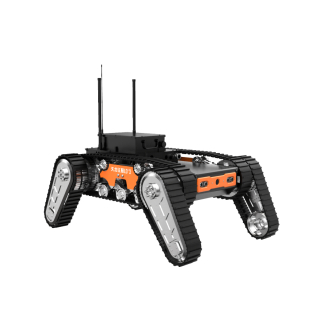

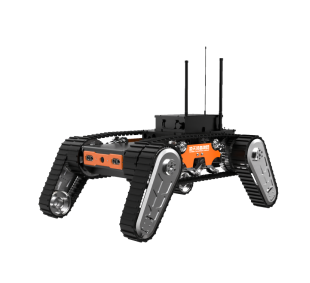

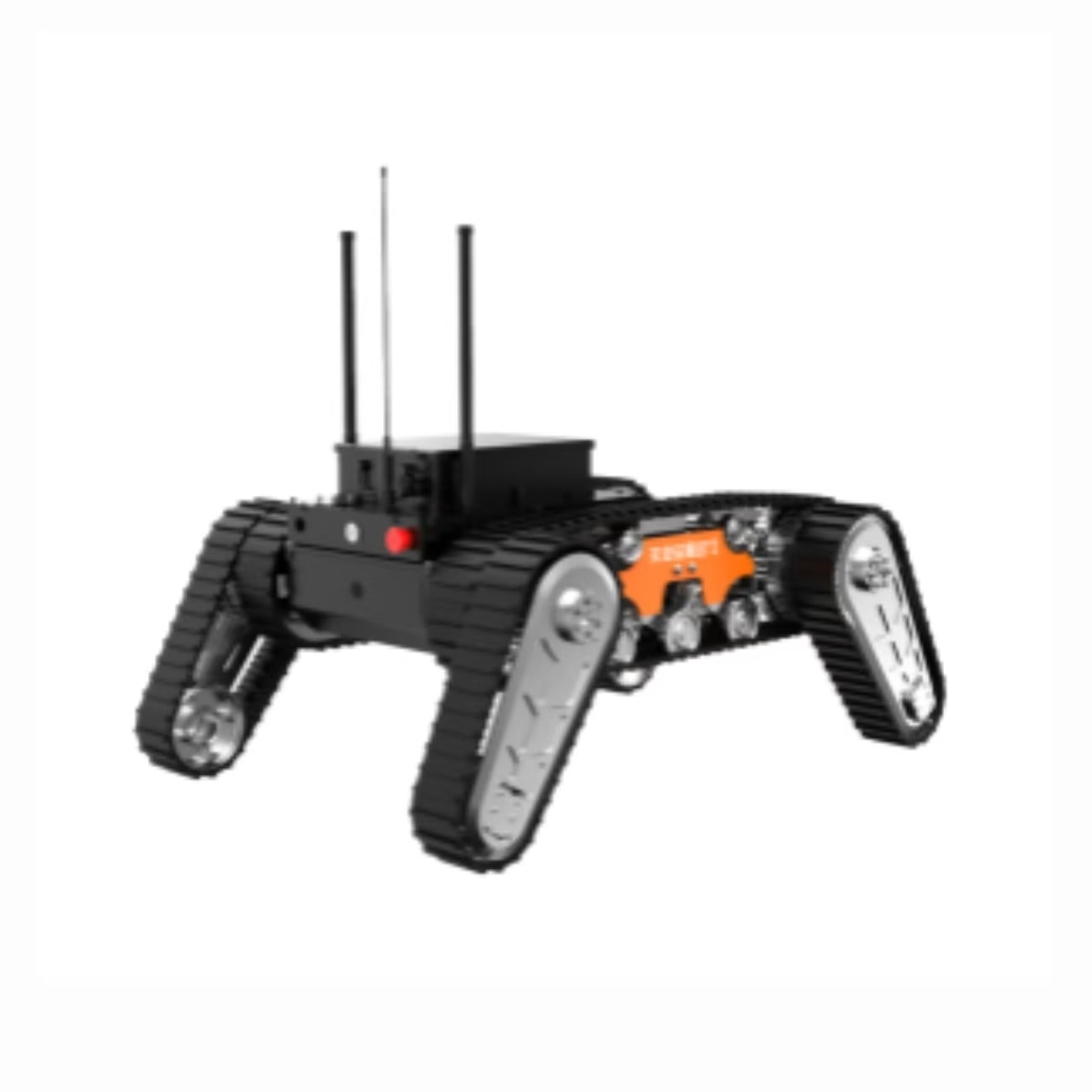

Medium Sized Double Swing Arm Tracked Robot Chassis

Overview

This double arm tracked chassis utilizes lithium battery power as the robot's energy source. Designed for high performance in challenging environments, it features:

Exceptional passability with speeds up to 1.9m/s
IP67 protection rating for operation in various complex terrains
Modular design with quick-disconnect battery for easy maintenance
Multi-module compatibility for diverse operational requirements

Key Features

Advanced communication system for law enforcement coordination
Group call capability without public network (range ≥ 3km)
Extended operation time ≥ 12 hours
Minimum IP54 protection rating
Optional explosion-proof certification for hazardous environments

Technical Specifications

Model	DRAGON-03
Primary Functions	Explosive ordnance disposal, video reconnaissance
Power System	Electric, ternary lithium battery
Dimensions	≤ 973mm (L) × 700mm (W) × 621mm (H)
Weight	≤ 75kg
Performance	Maximum speed: ≥ 1.9m/s with remote variable transmission Turning capability: Rotates in place Straight running deviation: ≤ 5% Braking distance: ≤ 0.3m
Terrain Capability	Climbing ability: ≥ 35° slope Trench crossing: ≥ 500mm Obstacle clearance: ≥ 320mm Water wading: ≥ 185mm
Operational Duration	≥ 3 hours continuous operation
Track System	Flame-retardant, anti-static, high-temperature resistant rubber Kevlar fiber cable reinforcement Track derailment protection design

All specifications subject to verification under standard testing conditions.
