Intrinsically Safe Digital Camera 24.8MP for Hazardous Areas

Contact Now

Intrinsically Safe Digital Camera 24.8MP for Hazardous Areas

Place of Origin:	china	Brand Name:	topsky

Detail Information
Alarm Type:	Light Sound And Vibration	Flow:	0.5l/min
Foot Protector:	450m/s	Magnify:	16times
Beacher Size:	731650cm	Use:	2.1 Times / Blasting Head
Chest:	824.8m/s	Flght Distance:	More Than 3000m
Traction Force:	≥6400N	Frequency Range:	500 ~ 5000Hz
Frequency:	X Band	Level:	STANAG 2920
Operating Mode:	Pulse Doppler	False Alarm Rate:	≤1%
Product Weight:	250g
Highlight:	intrinsically safe digital camera 24.8MP , hazardous area digital camera , explosion-proof camera with warranty

Product Description

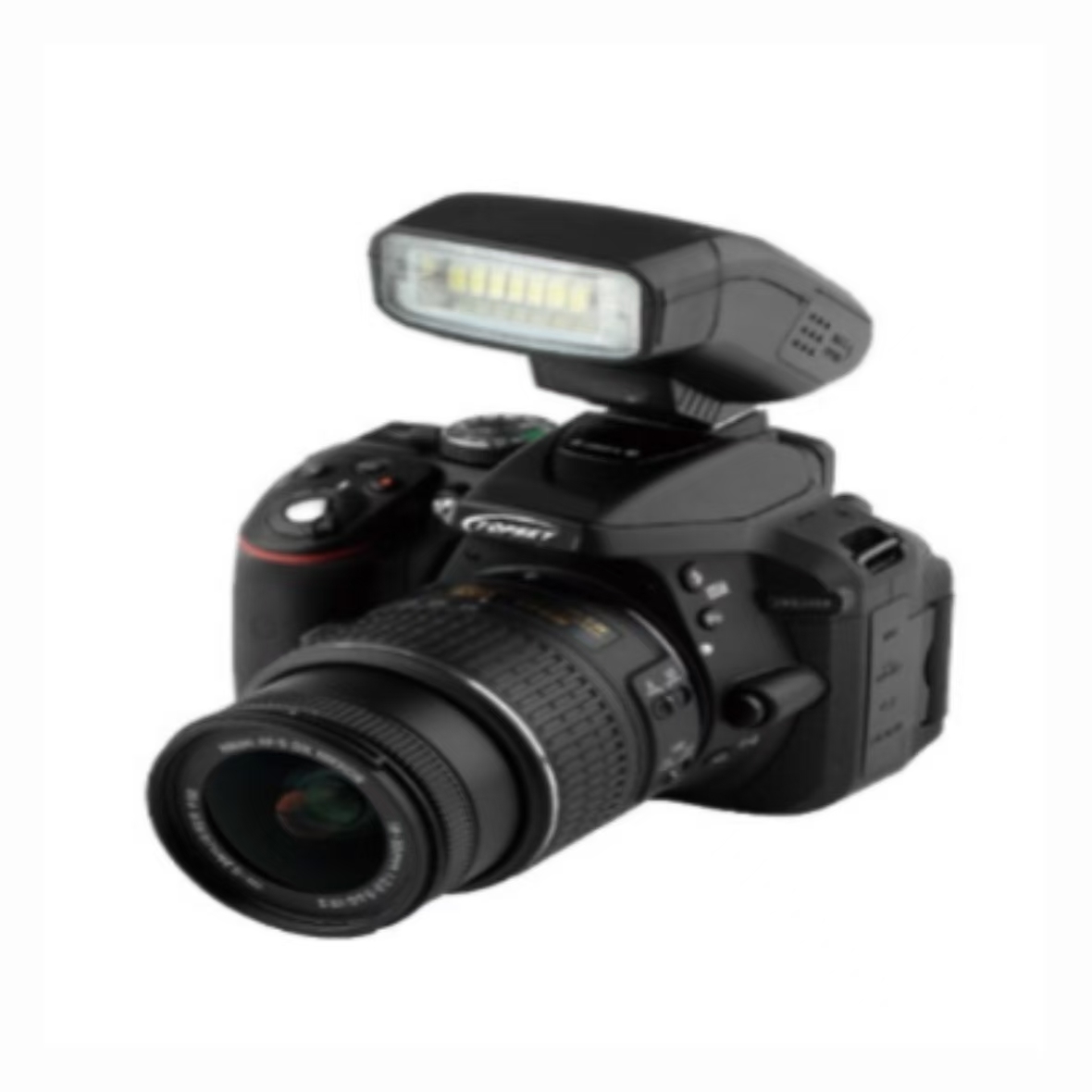

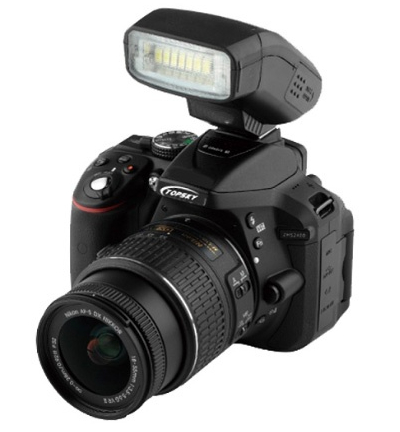

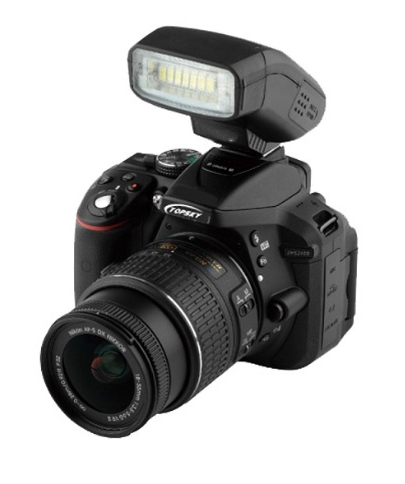

Mine-use Intrinsically Safe Digital Camera

Overview

The ZHS2478 intrinsically safe digital camera utilizes advanced intrinsically safe explosion-proof technology. Designed for hazardous environments, this camera is ideal for safety supervision, law enforcement, and industrial applications including petroleum, petrochemical, gas, chemical, pharmaceutical, textile, and other explosion-prone areas with limited space.

Featuring a compact, lightweight integrated design with intrinsically safe explosion-proof lithium batteries, this camera can be easily mounted on the body for convenient operation. The integrated mini flash lamp synchronizes with the camera's hot shoe interface, providing complete lighting solutions for documentation and evidence collection.

Key Features

Multiple safety certifications: MA, ExibIMb (mining), ExibIIC T6Gb (chemical), ExibD21T115℃ (dust)
Compliant with GB12476.1 and GB12476.4 dust explosion-proof standards
Four-level safety certifications: chemical IIC explosion-proof, coal mine explosion-proof, dust explosion-proof, and MA marking
Integrated design with built-in intrinsically safe lithium battery

Technical Specifications

Image Sensor	Single-lens reflex high-sensitivity CMOS sensor
Resolution	Approximately 24.8 megapixels
Display	TFT LCD with 170° viewing angle, 100% picture coverage, adjustable brightness
Lens	Standard AF-S DX Nikon 18-55mm VR II lens
Storage	16GB standard (supports expansion up to 128GB)

Accessories

Intrinsically Safe LED Flashlight: Synchronizes with camera's hot shoe interface (100g weight, high-brightness cold light bulbs, MA/ExibIMb/ExibIICT6Gb certified)

External Power Box: Large-capacity intrinsically safe power supply (MA/ExibIMb/ExibIICT5Gb certified) extends battery life for critical operations

Applications

Ideal for operations, evidence collection, investigations, and environmental data collection in hazardous areas, ensuring both work efficiency and operational safety.
