YQ7 Multi-parameter Detection Alarm Instrument with 7 Parameters Detection Audible and Visual Alarm and Replaceable Lithium Battery

Place of Origin:	china	Brand Name:	topsky

Detail Information
Working Pressure:	25MPa	Height Fold:	0.9m
Data System:	NTSC	Remote Weight:	1.4kg
Foot Cover:	450 M/s	Shrapnel Weight:	2.3kg
Angle:	120degree	Cruising Speed:	20m/s
Battery Type:	Replaceable Lithium Battery, Standby 4 H	Penetrate Ability:	Wood 70mm；steel Plate 3mm
Weigh:	15.5kg	Certifications:	NIJ, ISO
Detect Mode:	Automatically	Stanard Duration:	320min
Turning Diameter:	≤2568mm
Highlight:	7 Parameters Detection Gas Detector , Audible and Visual Alarm Safety Monitoring Device , Replaceable Lithium Battery Multi-parameter Detection Alarm Instrument

Product Description

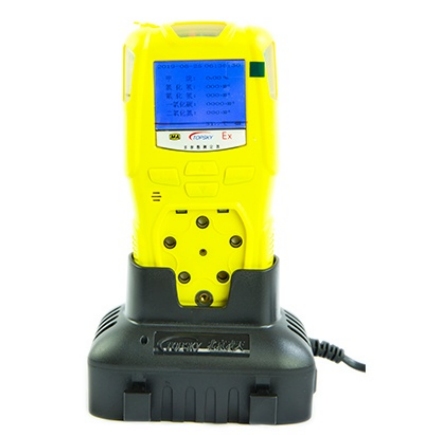

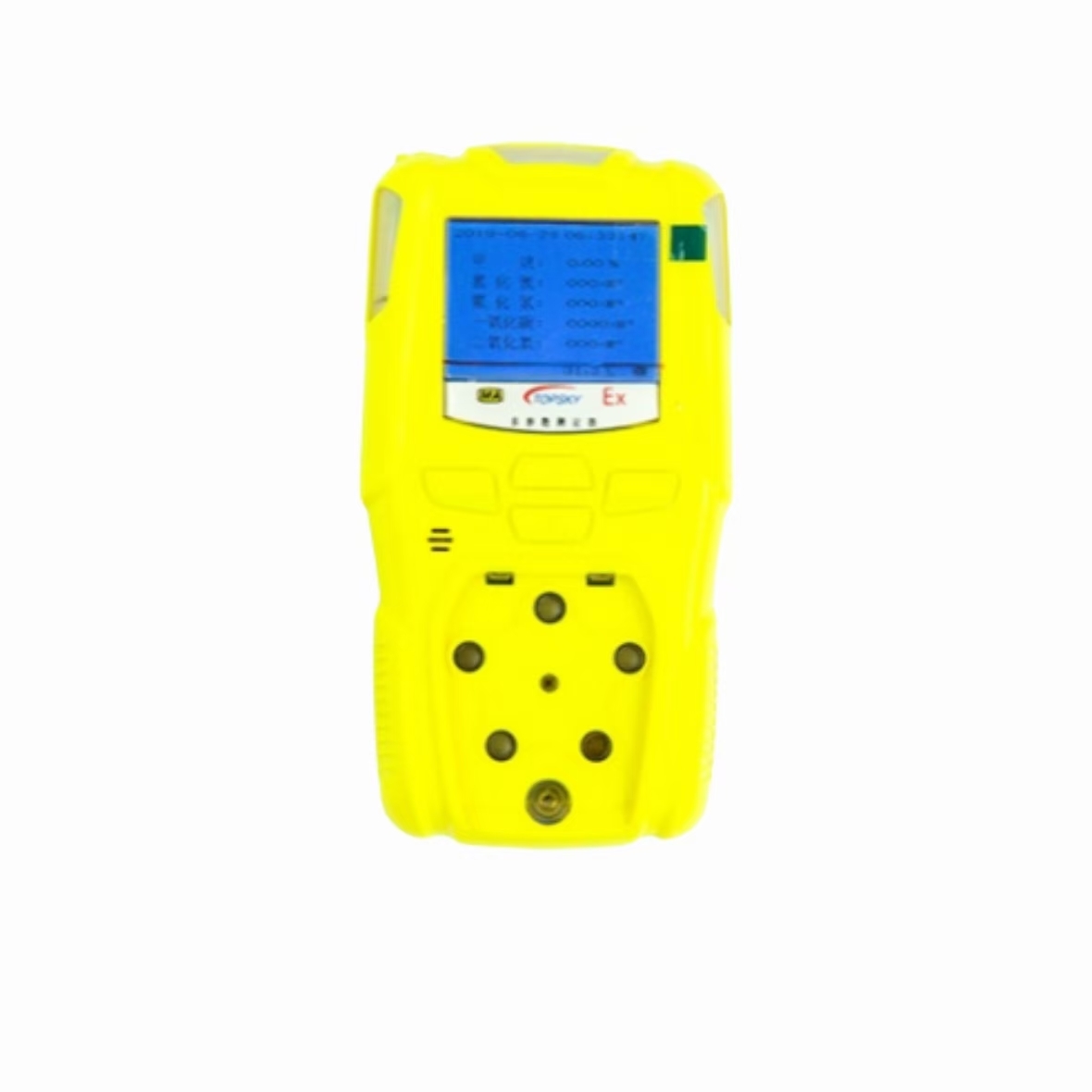

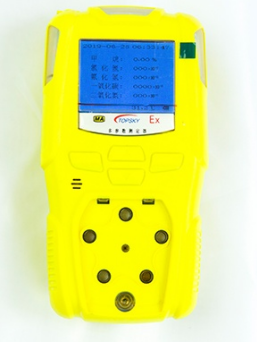

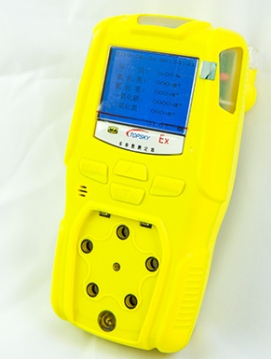

YQ7 Multi-parameter Detection Alarm Instrument

The YQ7 multi-parameter detection alarm instrument simultaneously and continuously monitors 7 critical parameters including CH4, O2, CO, CO2, H2S, temperature (°C), and wind speed (m/s). This advanced detector triggers immediate audible and visual alarms when parameter levels exceed or fall below preset safety thresholds, enabling timely safety measures to protect life and property.

Utilizing an 8-bit microcontroller and high-precision detection components, the YQ7 delivers exceptional sensitivity and rapid response times. The 3-inch color LCD provides clear, reliable data display. Certified by national authorities, this instrument is suitable for all personnel including technicians, operators, and management in industrial environments.

Key Features

Simultaneous detection of 7 parameters: CH4, O2, CO, CO2, H2S, °C, and m/s
User-configurable alarm points for customized safety thresholds
Secondary sound and light alarm functionality
Replaceable modular sensors for easy maintenance
Comprehensive monitoring for mine gas and environmental parameters
One-click zero calibration and charging zero calibration

Technical Specifications

Measurement Ranges

Parameter	Range	Resolution
Methane (CH4)	0 - 100% (VOL)	0.01%
Oxygen (O2)	0 - 30% (VOL)	0.1%
Carbon Monoxide (CO)	0 - 1000 ppm	1 ppm
Hydrogen Sulfide (H2S)	0 - 100 ppm	1 ppm
Temperature	-20.0 - 60.0 °C	0.1 °C
Wind Speed	0.4 - 30.0 m/s	0.1 m/s

Additional Specifications

Display: LCD with real-time data, system status, vibration, sound and light alarms
Alarm Sound Level: ≥75 dB(A) at 1 meter distance
Light Signal Visibility: ≥20 meters in darkness
Power Supply: 1600 mAH lithium manganese oxide battery with overcurrent protection
Battery Specifications: Maximum open-circuit voltage 4.3V, maximum short-circuit current 1.0A
Operating Time: 10 hours (non-alarm state)
Housing: ABS engineering plastic
Protection Rating: IP54
Weight: 1 kg
Dimensions: 160mm × 85mm × 43mm
Glove-friendly operation with simple button interface
