JJB30 Mine-use Laser Methane Remote Measuring Instrument with 30m Effective Telemetry Range, 6400 ppm*m Measurement Range, and Explosion-proof Certification Exib IMb

Place of Origin:	china	Brand Name:	topssky

Detail Information
Rope Sling:	3/4/5mm Dia*2m	Type:	PE Bulletproof Helmet
Control Way:	Battery Powered	Thickness:	Approx 15mm
Distance Accuracy:	≤ 10m	Battery Time:	6hrs
View Angle:	≥170 Degrees	Ccd Pixel:	2048×64
Foot Cover:	450 M/s	Designed For:	Police, Military, Special Forces
Weigh:	15.5kg	Memory:	8G SD
Image Format:	Jpeg Or Bmp	Image System:	360°panorama Image System
Straight Deviation Amount:	≤0.7%
Highlight:	30m Effective Telemetry Range Laser Methane Remote Measuring Instrument , 6400 ppm*m Measurement Range Methane Detector , Explosion-proof Certification Exib IMb Gas Detection Device

Product Description

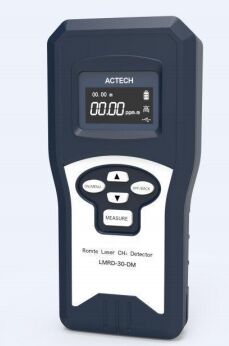

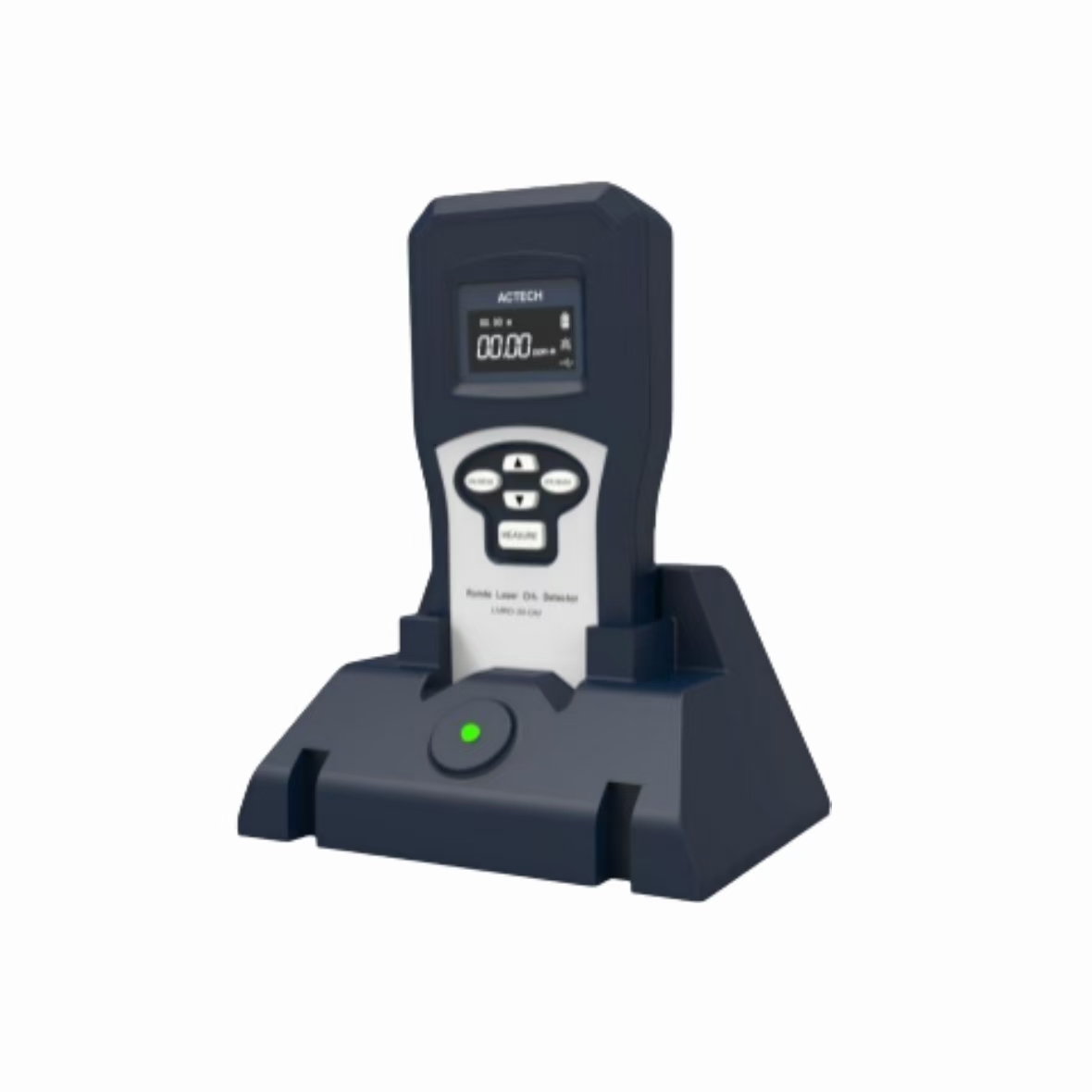

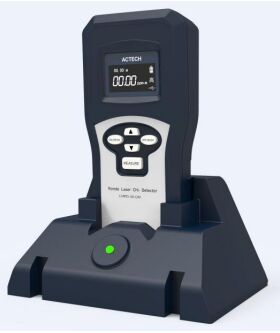

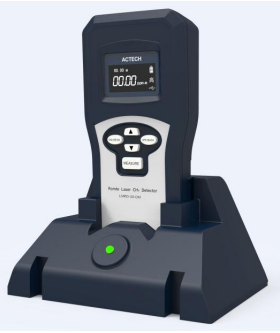

JJB30 Mine-use Laser Methane Remote Measuring Instrument

The JJB30 mine-used laser methane remote measuring instrument leverages advanced optoelectronic technology to detect methane concentrations from a distance. Utilizing the principle that methane gas absorbs specific laser wavelengths (following Lambert-Beer law), this handheld device provides accurate remote measurement of methane and methane-containing gases including natural gas.

Measurement Technology

This instrument directs a laser beam toward detection points such as coal mine corners, gas pipelines, ceilings, walls, and floors. By analyzing the reflected laser signal from the target, it measures methane gas concentration distributed along the laser path between the device and target point, covering distances up to 30 meters.

Key Features

Remote methane concentration measurement capability
Over-limit alarm function for safety monitoring
Five-digit digital display with 1 ppm*m resolution

Technical Specifications

Parameter	Specification
Effective Telemetry Range	0m - 30m
Measurement Range	(0 - 6400) ppm*m Equivalent to (0 - 4)% CH4 concentration over 0.16m path length
Basic Error	(0 - 6400) ppm*m, ±10% of true value
Alarm Point Setting	Configurable between (100 - 6400) ppm*m with audible alarm
Display Type	Liquid crystal display
Display Resolution	Methane concentration: 1 ppm*m, Distance: 0.01m
Data Refresh Time	≤ 1 second
Enclosure Protection	IP54 rated
Battery Life	≥ 8 hours standby operation
Explosion-proof Certification	Exib IMb certified for hazardous environments

Industrial Application

Specifically designed for mining operations and industrial gas monitoring, the JJB30 provides safe, non-contact methane detection in potentially explosive environments, ensuring worker safety and facility protection.
