PSR-5000X Emergency Ultra-Portable Slope Monitoring Radar with 360° All-Round Coverage and 0.1mm Deformation Accuracy

Place of Origin:	china	Brand Name:	topsky

Detail Information
Protection Level:	From NIJ IIA To NIJ IIIA	Application:	Counter Terrorism
Humidity:	0-100%	Ex Certification:	Exib I Mb
Battery Time:	6hrs	Work System:	Phased Array System (azimuth Phase Scan)
Height Fold:	0.9m	Suspension:	Four-point Type
Total Weight:	8kg	Launcher Length:	500mm
Working Frequency:	C Band	Manipulator Rotation:	360° Continuous Rotation
Vertical Force:	2t	Disperse Window:	155mm×330mm
Distance Accuracy:	≤ 10m
Highlight:	360° All-Round Coverage Slope Monitoring Radar , 8kg Ultra-Portable Panoramic Slope Radar , 0.1mm Deformation Accuracy Emergency Slope Radar

Product Description

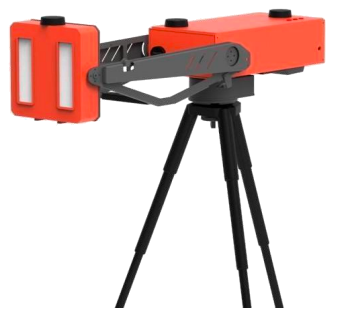

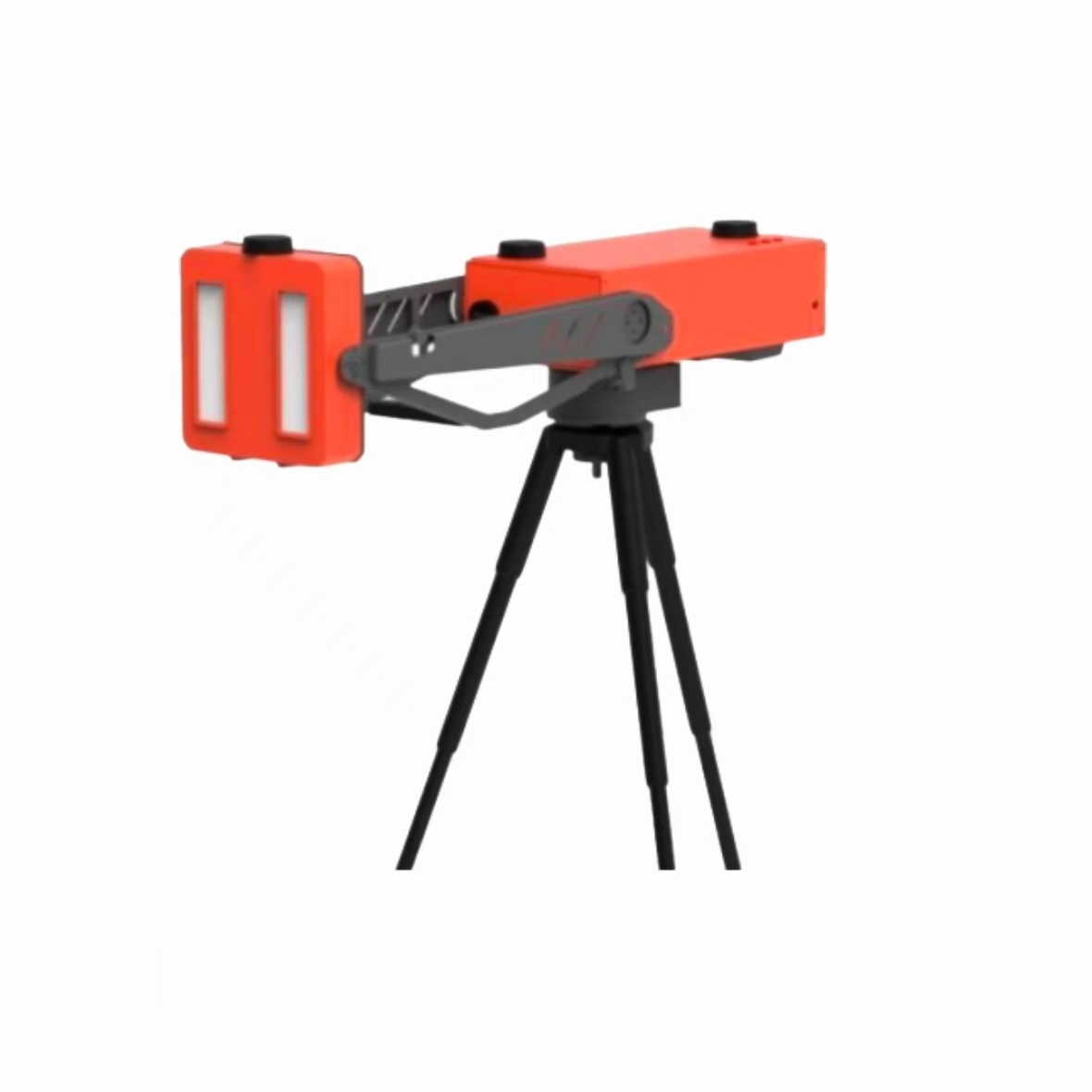

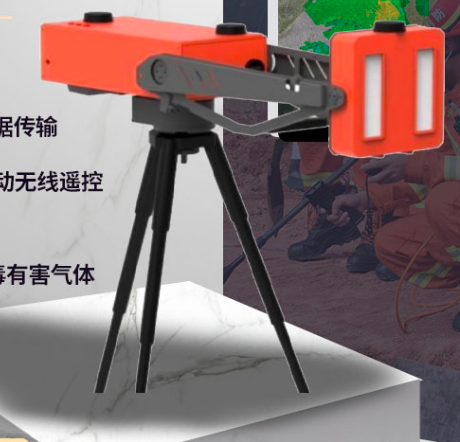

PSR-5000X Emergency Ultra-Portable Slope Monitoring Radar

The PSR-5000X emergency ultra-portable slope monitoring radar utilizes circular synthetic aperture radar technology with wideband frequency modulated continuous wave signals and phase difference interferometry. This advanced system provides 360° panoramic coverage, precise deformation measurement, and operates effectively in all weather conditions and times of day.

Specifically designed for emergency rescue operations, this radar system emphasizes lightweight construction, portability, and low power consumption while maintaining industry-leading performance standards for size, weight, and operational efficiency.

Key Features

Deformation measurement accuracy of 0.1mm with data update rates up to 30 seconds
Microwave penetration capability for all-weather operation, unaffected by rain, snow, fog, smoke, or dust
360° arc imaging with continuous wave radar system for comprehensive coverage without blind spots
Edge computing architecture with integrated information processing, positioning, and wireless communication

Operational Capabilities

Remote control for electric pitch angle adjustment (optional) for flexible monitoring in challenging terrain
Ultra-lightweight design at only 8kg for single-person deployment and transport
Compact folded dimensions: 0.5×0.3×0.25m, suitable for 24-inch storage cases and civil aviation transport
B/S architecture software supporting LAN/WiFi on-site monitoring and 4G/5G remote monitoring
Advanced adaptive atmospheric disturbance compensation with less than 2mm daily error
Configurable monitoring points and areas with 4-level alarm system (audio, SMS, email)
Fast 3D terrain matching and rendering with sub-meter accuracy and low computer requirements

Technical Specifications

Weight: 8kg
Folded Size: 0.5×0.3×0.25m
Measurement Accuracy: 0.1mm
Update Rate: Up to 30 seconds
Coverage: 360° panoramic
Atmospheric Compensation: <2mm daily error
Terrain Matching Accuracy: Sub-meter level
