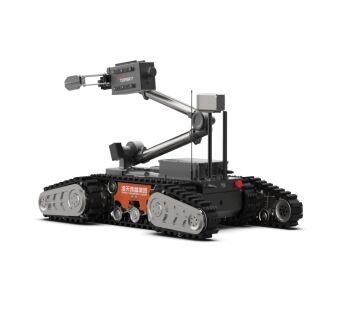

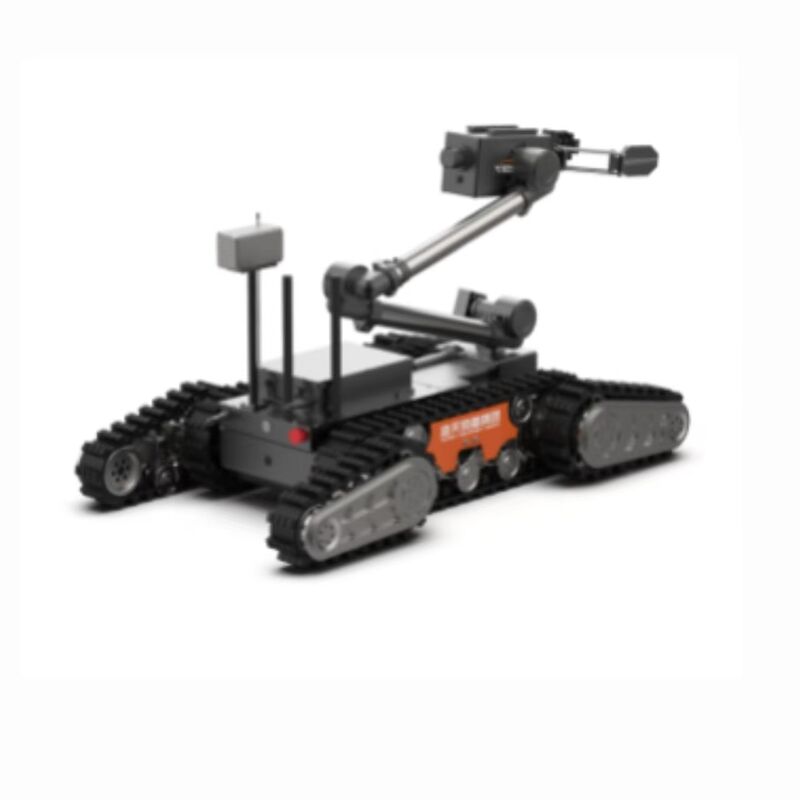

Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations
Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations
Contact Now

Medium Sized Bomb Disposal Robot with 600KGS Load Capacity and 6-Degree-of-Freedom Robotic Arm for Multi-Functional EOD Operations

Place of Origin: CHINA Brand Name: TOPSKY

Detail Information
Designed For: Police, Military, Special Forces Lens Focal Length: F = 4.8mm ~ 94mm
Collapsed Height: 0.758m Power: 220VAC 12-24V DC Battery(optional)
Control Way: Battery Powered Feature: Non Contact
Scanning Mode: Phase Scanning Cd Screen: 2.0 Inch TFT Screen
Durability: High Resistance To Impact, Heat, And Corrosion Functionality: Multi-functional
Straight Deviation Amount: ≤0.7% Load Capacity: 600KGS
Detectable Rate: ≥99% Bearing Accuracy: ≤ 1.0°
Resolution: 12cm-1
Highlight:

600KGS Load Capacity Bomb Disposal Robot

,

6-Degree-of-Freedom Robotic Arm EOD Robot

,

Multi-Functional Explosive Ordnance Disposal Robot

Product Description

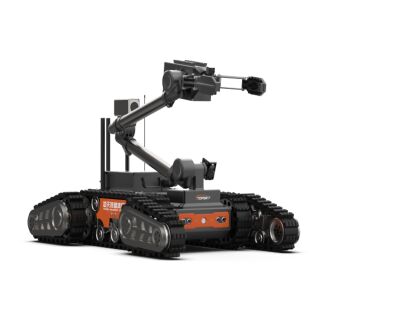

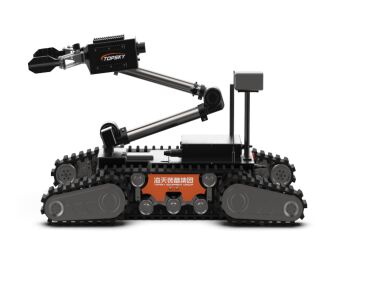

Medium Sized Bomb Disposal Robot
Explosive ordnance disposal robots are designed for handling explosive-related operations and conducting reconnaissance in terrain inaccessible to humans. Featuring a 6-degree-of-freedom robotic arm capable of lifting up to 55KG, this robot can destroy explosives on-site using its integrated explosive destruction device.
Key Features
Robotic Arm Capabilities
  • Multiple posture preset functions with one-click reset capability
  • 6 degrees of freedom for multi-posture operations
  • Maximum gripping capacity of 55KG
Mobility & Terrain Performance
  • Climbs 35° slopes and 30° stairs
  • Clears 32cm vertical obstacles
  • Spans 50cm wide trenches
  • Track + double swing arm chassis for versatile terrain adaptation
Advanced Systems
  • Multi-channel high-definition camera system for simultaneous multi-perspective observation
  • Modular design for quick disassembly and assembly of components
  • Wired control capability for operation during network interference
Technical Specifications
Robot System
Primary Functions Bomb disposal, video reconnaissance
Compliance Standard GAT 1776-2021 Police Robots Systems
Protection Level IP67
Power Supply Electric, ternary lithium battery
Dimensions ≤ 973mm (L) × 700mm (W) × 621mm (H)
Weight ≤ 91.5kg
Maximum Speed ≥ 1.9m/s with stepless speed control
Climbing Ability ≥ 35°
Stair Climbing ≥ 30°
Trench Crossing ≥ 500mm
Obstacle Clearance ≥ 320mm
Operating Time ≥ 3 hours
Wireless Control Range 800m (open area)
Robotic Arm Specifications
Degrees of Freedom Six
Claw Opening 281mm
Claw Rotation 360°
Wrist Rotation 270° forward/backward
Small Arm Pitch 150°
Large Arm Pitch 155°
Waist Rotation ±90°
Rated Grip Weight 25KG
Maximum Grip Weight 55KG
Horizontal Reach ≥ 1385mm
This explosive ordnance disposal robot is designed for rapid combat deployment and can be integrated with accessories such as destroyers and remote detonation control systems for enhanced operational capabilities.
