Explosion-proof infrared camera with real-time detection capability dual-light fusion and high-sensitivity infrared detector for precise temperature measurement

Place of Origin:	CHIAN	Brand Name:	TOPSKY

Detail Information
Product Size:	365(L )110(W)65mm (H)	Feature:	Non Contact
Beacher Size:	731650cm	Battery Life:	2 Hours
Measurement Time:	≤2 Seconds	Rated Output Pressure:	63Mpa
Pump Weight:	10kg	Work System:	Phased Array System (azimuth Phase Scan)
Wave Length:	447nm;415nm	Use Of Distance:	≤2m
Trainingrequired:	Specialized Training For Effective Use	Speed:	2s
High Pressure Flow:	0.5L/MIN	Arms:	567.7m/s
Detection Response Time:	≤2s With Real-time Detection Capability
Highlight:	Real-time detection infrared camera , Dual-light fusion thermal imager , High-sensitivity infrared handheld device

Product Description

Explosion-Proof Infrared Camera

The explosion-proof infrared thermal imager is a cutting-edge handheld temperature measurement device that combines visible light imaging with infrared thermal imaging technology. Featuring advanced image processing capabilities including dual-light fusion, picture-in-picture display, and multiple pseudo-color modes, this device enables precise identification of image details and accurate temperature analysis.

Key Features

Continuous digital zoom from 1.0x to 4.0x
Video recording and capture capabilities
Real-time viewing and secondary analysis via mobile app and computer software
Wide temperature measurement range: -20°C to 550°C
Macro lens expansion support
Fusion display of thermal imaging and visible light images
Multiple pseudo-color display modes
Real-time scene temperature measurement
Video capture, screenshot, and media file storage
Wi-Fi and hotspot connectivity

Technical Specifications

Temperature Measurement Range	-20°C to 550°C
Temperature Measurement Accuracy	±2°C or ±2% (whichever is greater)
Digital Zoom	1X - 4X, minimum change 0.1X
Thermal Imaging Resolution	256 × 192 pixels
Spectral Response Band	8 - 14μm
Pixel Size	12μm
Output Frame Rate	≤ 25Hz
Thermal Sensitivity	≤ 50mK @ f/1, 300K, 30Hz
Operating Temperature Range	-10°C to 50°C
Extended Detection Distance	0.5m - 1.2m
Additional Features	High/low temperature alarm, Wi-Fi, Bluetooth
Display Size	3.5 inches
Display Resolution	640 × 480
Visible Light Resolution	8 megapixels
Storage Capacity	16GB
LED Lighting	White LED
Battery Life	4 hours
Waterproof Rating	IP54

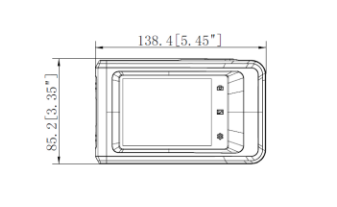

Dimensions	138.5 mm × 85.2 mm × 23.6 mm
Weight	218g
