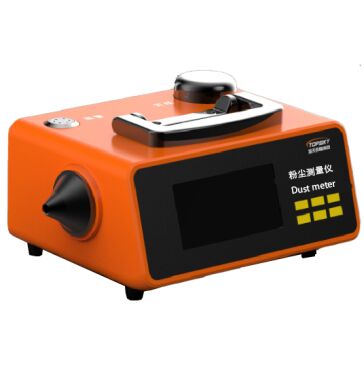

Portable Dust Measurement Instrument with 4G Transmission Infrared Laser and 0.001mg/m3 Resolution for Direct Reading Dust Concentration

The CCZ500 dust measurement instrument is a simple-to-operate, lightweight and portable device that directly reads dust concentration. Designed using the light scattering method, this continuous dust concentration measuring instrument integrates advanced domestic and international dust measurement technologies.

Utilizing infrared laser and imported photomultiplier tubes, it converts scattered light intensity from suspended dust into electrical signals. With preset K values, it directly calculates mass concentration for environmental monitoring and measurement control systems.

Key capabilities include fast and accurate measurement, high sensitivity, stable performance, strong load capacity, and low susceptibility to optical path dust accumulation. The instrument features configurable alarm thresholds with audible and visual alerts when concentration limits are exceeded.

Compliant with MT163-1997, JJG846-2015, GB 20964-2007, and GB3836.4-2010 standards, including ExibI Mb level mine safety intrinsically safe explosion-proof design. Features 4G real-time data transmission, timed sampling, continuous detection, data processing, and over-limit alarm functions.

• Lightweight: Compact and portable design for convenient measurement
• Efficient: Direct reading with one-button operation, results in 1 minute
• High Precision: Resolution: 0.001mg/m³
• Automatic Alarm: Customizable settings with automatic over-limit alerts
• Data Processing: Scheduled sampling with automatic TWA calculation
• Networking: 4G transmission with visual data display on backend
• Maintenance-Free: Sensor module requires no cleaning or maintenance
• Integrated: Attractive, durable, and reliable integrated design
