Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

Contact Now

Intrinsically Safe Infrared Thermal Imager for Mine Safety with Real-time Detection and Multi-point Temperature Measurement

Place of Origin:	china	Brand Name:	topsky

Detail Information
Light Source Type:	Blue Laser Light; Purple Laser Light	Other Name:	Coverall Type Medical Isolation Gowns
Maximum Detection:	≥2.5km（vehicle）	Helmets:	709.4m/s
Rotate:	0-120RPM	Water Tank Capacity:	16L
Detection Response Time:	≤2s With Real-time Detection Capability	Drill Size:	4/5/6/8mm
Main Engine Weight:	28kg	Helmet Shell:	≥720m/s
Lcd Display:	2.0-inch Full HD Display	Availability:	Available For Purchase Worldwide
Power:	24v	Braking Distance:	≤0.11m
Control Way:	Battery Powered
Highlight:	Intrinsically Safe Infrared Thermal Imager , Real-time Detection Thermal Imaging Device , Multi-point Temperature Measurement Mine Safety Equipment

Product Description

Mine-used Intrinsically Safe Infrared Thermal Imager

Product Overview

The YRH800 mine-used intrinsically safe infrared thermal imager is designed for thermal imaging and temperature measurement in coal mine environments. It employs a non-cooled focal plane infrared detector to present infrared thermal spectrum data in high-definition, high-sensitivity pseudo-color image format with multi-point temperature measurement capability.

Images, videos, and voice recordings can be stored on a Micro SD card for in-depth computer analysis and statistical processing. Suitable for all personnel including technicians, operators, and managers in explosive hazard environments.

Key Applications

Detection of high-temperature areas and real-time temperature difference imaging
Identification of coal seam spontaneous combustion areas in ventilation work areas
Search and rescue operations for locating trapped personnel in dark conditions

Technical Specifications

Display & Resolution	Digital display with resolution ≥0.1°C, capable of indicating positive/negative values
Operating Modes	Photo mode and temperature measurement mode with photo/video recording capability
Data Management	Storage, recall, deletion, and playback functions
Temperature Measurement	Maximum, minimum, and average temperature measurement for points, lines, and surfaces
Display Options	Multiple pseudo-color and color scale display options
Alarm Functions	High-temperature alarm, low-temperature alarm, preset temperature alarm with adjustable alarm points and emissivity settings
Focusing System	Manual and automatic focusing functions
Interface Features	Background light switch, brightness adjustment, °C/°F conversion, trigger lock
Operation Interface	Physical keyboard with Chinese menu operation interface

Performance Characteristics

Repeatability: ≤0.5°C
Alarm accuracy: Alarm display value within ±1.0°C of set value
Audible alarm function when temperature exceeds preset points

Power & Safety Specifications

Battery Module	Model PL123450, rechargeable, two 1600mAh manganese oxide lithium batteries
Electrical Parameters	Maximum open-circuit voltage: 8.4V DC; Maximum short-circuit current: 1.6A
Explosion-proof Certification	Mine intrinsically safe type, explosion-proof mark: Ex ibⅠMb
Construction	ABS + silicone shell
Weight	1.0kg
Dimensions	283×103×160mm
Protection Rating	IP54

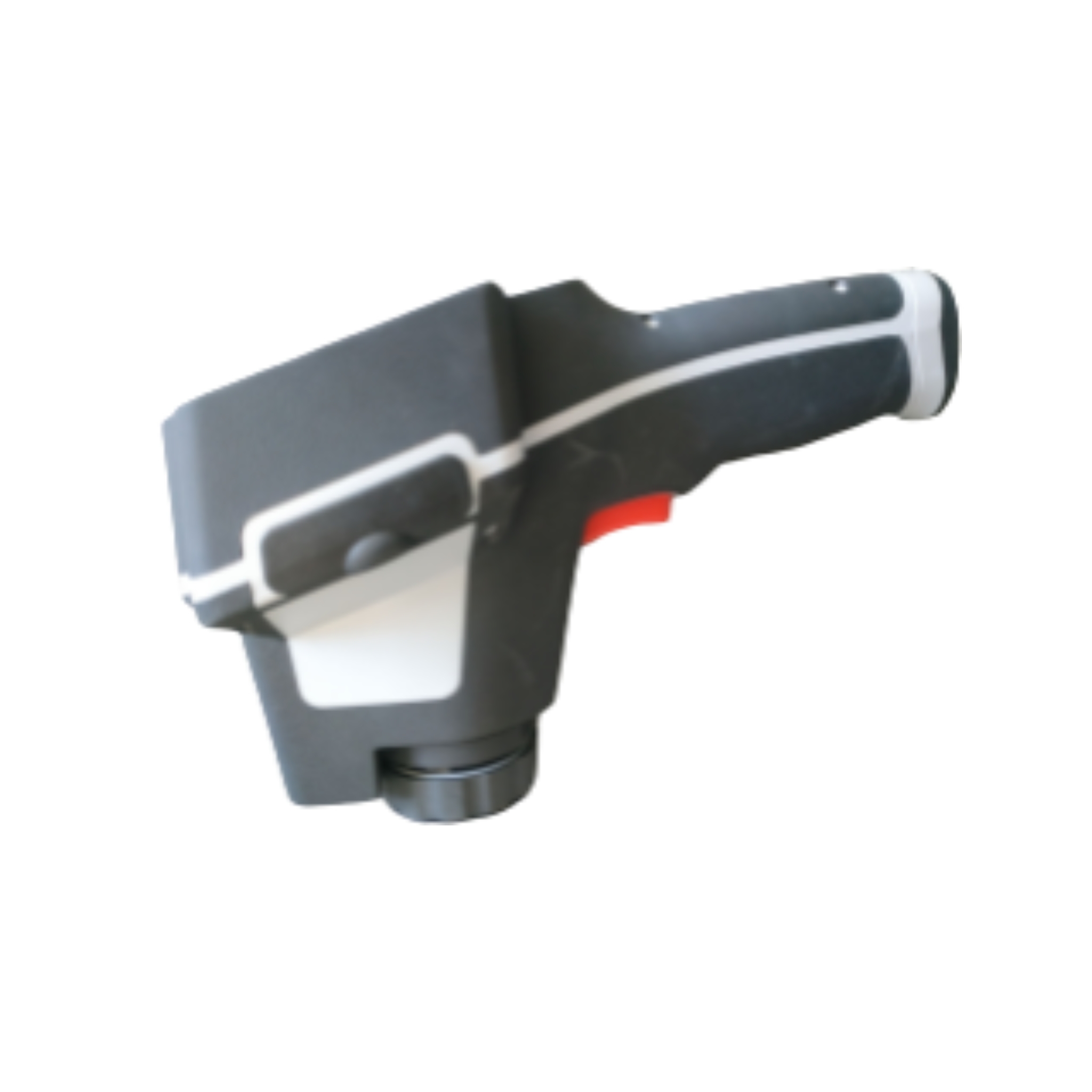

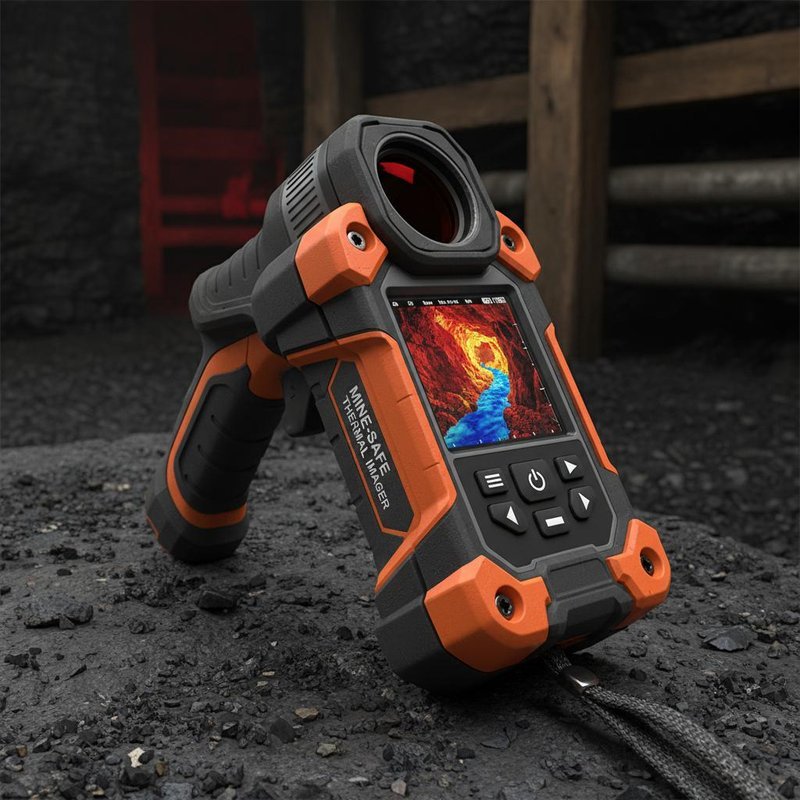

Product Images
