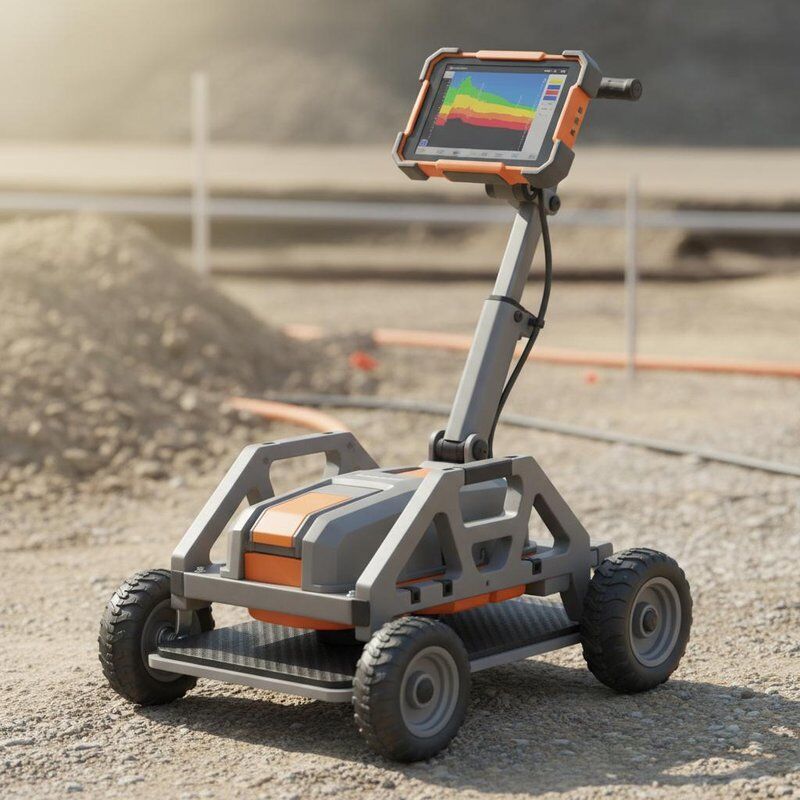

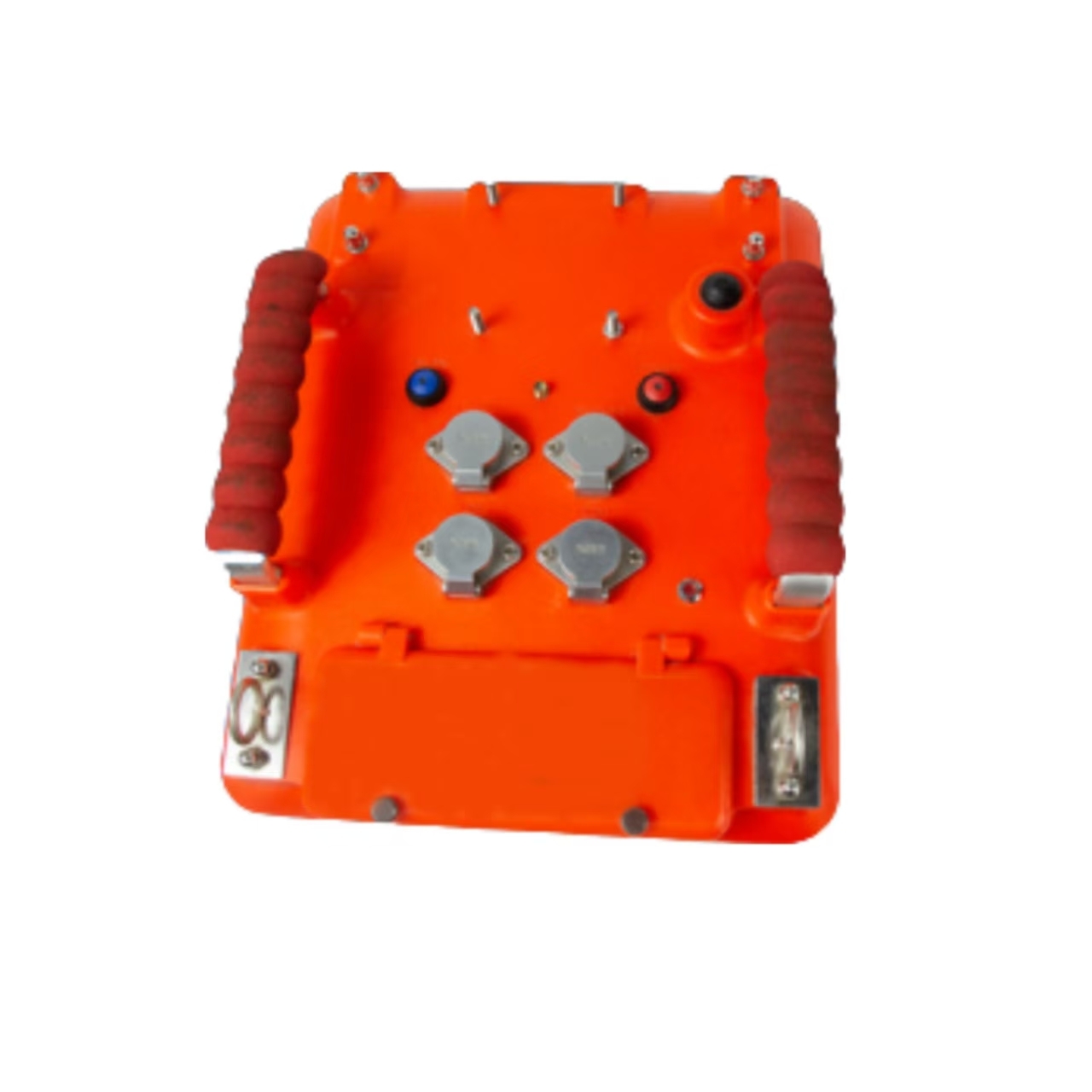

Name: Integrated Portable 3D Ground-Penetrating Radar with Wireless Data Transmission and High-Low Frequency Antenna
Brand: Beijing Topsky Century Holding Co.,Ltd
Price: 33,002.00 USD
Availability: InStock

Contact Person : Yang

Phone Number : +8618010030825

WhatsAPP : +8613436381865

Integrated Portable 3D Ground-Penetrating Radar with Wireless Data Transmission and High-Low Frequency Antenna

Contact Now

Detail Information

Highlight:

integrated portable ground-penetrating radar

wireless data transmission GPR

high-low frequency combined antenna 3D ground-penetrating radar

Product Description

Ground-Penetrating Radar System

This advanced three-dimensional ground-penetrating radar system features innovative data processing methods and devices. During detection operations in preset areas, the system acquires reference positions in real-time and calculates target positions for each detection point. By storing target positions and corresponding detection results in standardized formats, this solution enables universal application of 3D GPR data across different instruments and software platforms.

Key Features

Integrated portable design with main unit and antenna combined
Wireless data transmission between radar and laptop for single-person operation
Automatic antenna model recognition with simplified setup procedures
GPS data interface for real-time positioning of pipeline ground-penetrating radar
High and low frequency combined antenna for rapid, efficient measurements

Technical Specifications

Parameter	Specification
Antenna Frequency	Built-in 200MHz, 400MHz, 600MHz, 900MHz; any dual-frequency combination; high dynamic range technology supporting simultaneous dual-frequency operation at over 150MHz + 1600MHz
Customization	Available according to customer requirements
Number of Channels	2 channels (host supports up to 16 channels)
Sampling Points	512, 1024, 2048, 4096, 8192 adjustable
Detection Depth	Maximum detection depth ≥ 5 meters (media dependent)
Acquisition Software	Real-time filtering, background elimination, automatic gain, automatic tracking
Scanning Rate	1 - 860 scans per second, selectable
A/D Bit Number	16/32 bit selectable
