Product Description

1,Overview

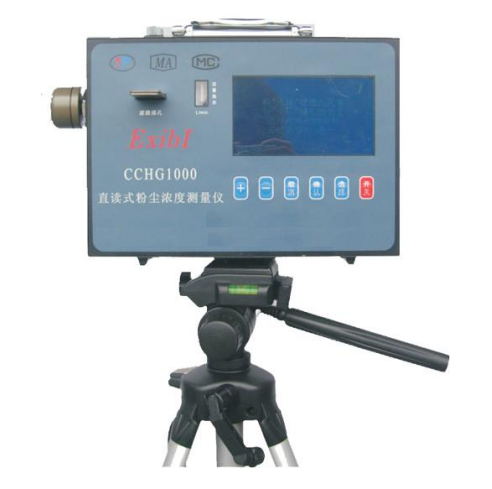

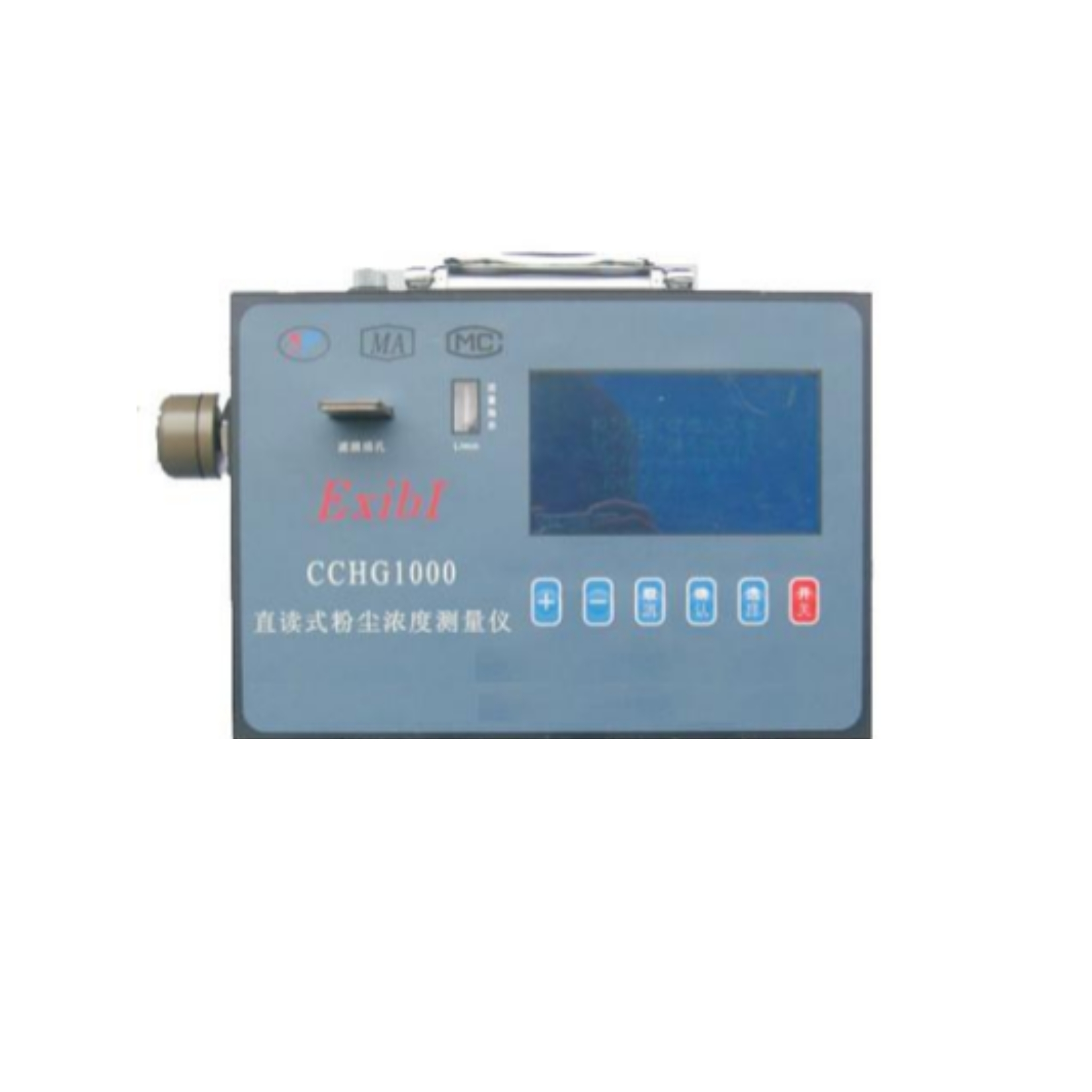

The CCZ1000 direct reading dust concentration measuring instrument (hereinafter referred to as the "measuring instrument") is based on the principle of infrared light absorption, and is an instrument used for measuring the concentration of suspended dust in the ambient air. This instrument is a measuring instrument designed in accordance with the Ex ib I Mb explosion-proof level (mine-specific intrinsically safe type) as per the standards of MT/T 163-2019 "General Technical Conditions for Direct Reading Dust Concentration Measuring Instruments", JJG846-2015 "Dust Concentration Measuring Instruments", and GB/T 3836.4-2021. The separation efficiency of the breathing separation device of this instrument fully complies with the internationally recognized "BMRC" curve requirements, and can accurately and promptly reflect the quality of respirable dust inhaled by workers and the pollution status of dust in different dust operation sites, providing reliable data for accurately evaluating the hygiene conditions of the workplace. This instrument is applicable to underground coal mines.
The instrument has a compact structure, simple operation, large load capacity, negative pressure capacity, automatic timed sampling, stable flow, full Chinese LCD display, and portability features.
2,Features

a. High performance: Fast response
b. Large range
c. High precision
d. High sampling efficiency
e. Explosion-proof: Ex ib I Mb
f. Safety mark number: MFA180034

3,Functions
a. Dust concentration measurement range: 0.1mg/m³ to 1000mg/m³
b. Relative error of dust concentration measurement: ±15%
c. Relative error of stability: ±2.5%
d. Sampling flow rate: 2.0L/min
e. Sampling flow rate error: ≤2.5%
f. Sampling flow rate stability: ≤±5%
g. Sampling efficiency: Complies with the "BMRC" sampling efficiency curve
h. Working voltage: 6.0V to 8.4V DC (Explosion-proof)
i. Working current: ≤100mA
j. Explosion-proof type: Intrinsically safe type
k. Explosion-proof type: Intrinsically safe type (Explosion-proof mark: Exib I Mb)
l. Dimensions: 218×160×80 (mm)
m. Weight ≤ 2.50Kg
