|Name:||Low Noise Silent Drill With Dual Motor C8||No-load Noise:||≤ 35dB|
|Rated Power:||90W, Double Motor Structure.||Drilled Material:||Wall, Metal Plate Wall, Glass Curtain Wall, Ceramic Curtain Wall.|
|Control Unit Size:||Not More Than 263x206x156mm||Total Weight Of The Control Unit (inside The Box):||≤3.5 Kg.|
|Silent Drill Body + Wall Fixed Unit Weight (bare Metal):||≤4.5 Kg|
counter surveillance equipment,
anti surveillance equipment
Counter Terrorism Equipment/ military equipment low noise Silent Drill with dual motor C8
C8 dual motor silent drill is an advanced low noise drilling equipment.In the course of carrying out the task, the police personnel can drill holes in the wall with a quiet electric drill without being investigated by criminals and then use professional equipment (snake, etc. ) To explore the situation in the house, mainly through the wall to detect the activities of the room staff.It is conducive to the police quickly and accurately access to the enemy, is used in a variety of dangerous environment for the investigation of special equipment.
The machine and accessories are packed in a box container, easy to carry. The equipment is light in weight, easy to operate, and can be quickly installed. Anti-terrorism operations, to understand and monitor the indoor situation on the work of the guidance, implementation and other aspects play a vital role in the rapid expansion of drilling work which will help quietly carry out indoor reconnaissance and monitoring.
Equipment comes with lighting to adapt to the night working environment, intelligent integration through the monitoring of current to determine the wall load capacity, speed adjustment to meet the needs of different use. Drill with dual motor mechanism, drill installation for the guide sleeve way, can be adjusted by 0-400 mm, can be forward, reverse, 24V DC power supply torque Large drilling speed, manual and automatic propulsion way two options.
2. Main parameters (★ for the key parameters)
1) double motor common drive;
2) ★ speed: adjustable; drilling speed, torque.
3) steering: positive / reverse variable, easy to promote and retreat.
4) ★ lighting: the host comes with LED lighting, dark lights can be in the harsh conditions of operation.
5) ★ Power supply: external independent control unit built-in battery can work 10 hours outside - 24V DC power supply.
6) Charging: fast charge through 24V power adapter, charging time ≤ 5h.
7) ★ drill folder size: 4mm, 5mm, 6mm, 8mm, 10mm variety of sizes optional, to adapt to a variety of endoscopes. The use of clamp installation, drill bit firmly, 0-400mm can be adjusted.
8) ★ drilling wall time: standard 2/4 wall: not more than 30min, standard 3/7 wall: not more than 60min.
9) ★ intelligent monitoring: intelligent integrated system
The control unit comes with a voltage display to detect the remaining charge.
The control unit has a current display, monitors the wall load force, and adjusts the propulsion speed.
10) ★ no-load noise: ≤ 35dB.
11) Rated power: 90W, double motor structure.
12) Drilling types: wall, metal plate wall, glass curtain wall, ceramic curtain wall.
13) Control unit size: not more than 263x206x156mm.
14) Total weight of the control unit (inside the box): ≤3.5 kg.
15) Silent drill body + wall fixed unit size (length X width X height): 360X270X116mm
16) Silent drill body + wall fixed unit Weight (bare metal): ≤4.5 kg.

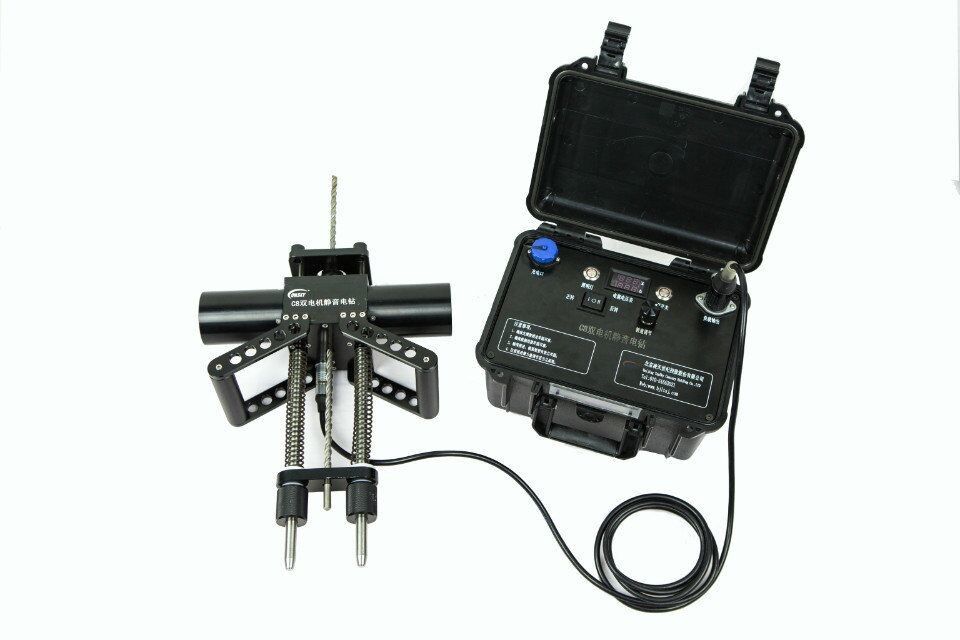

3. System composition
1) Silent drill body assembly
2) fixed unit of the wall (with a guide and automatic feeding effect)
3) the control unit with built-in power lithium battery
4) the system power supply cable
5) the control unit charger
6) drill set
