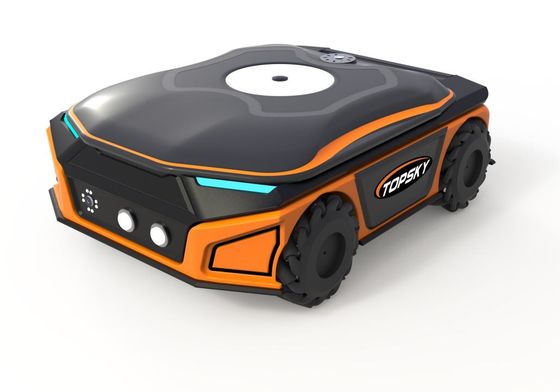

Omnidirectional Mobile Scouting Robot (with Gas)
Omnidirectional Mobile Scouting Robot (with Gas) Omnidirectional Mobile Scouting Robot (with Gas) Omnidirectional Mobile Scouting Robot (with Gas) Omnidirectional Mobile Scouting Robot (with Gas) Omnidirectional Mobile Scouting Robot (with Gas)
Contact Now

Omnidirectional Mobile Scouting Robot (with Gas)

Minimum Order Quantity : 1set Price : USD10000
Packaging Details : Aluminium case Delivery Time : 60days
Payment Terms : T/T Supply Ability : 10sets/month
Place of Origin: China Brand Name: Topsky
Model Number: RXR-C360D-3

Detail Information
Size: 346*255*125mm Weight: 3.8kg
Working Time: 4h Working Voltage: 12v
Maximum Motion Speed: 0.7m/s Maximum Climbing Angle: 45Km/h
Maximum Obstacle Height: 20mm

Product Description

Omnidirectional Mobile Scouting Robot (with Gas)



I. Product Overview

The RXR-C360D-3 omnidirectional robot is a small inspection robot with a compact size and a flat shape. It is mainly used for inspection operations in narrow and low spaces, and can also be expanded to load various sensor modules for detecting the target area.



The driving wheels of the robot adopt the Mecanum wheel structure design, which endows it with the ability to move horizontally at any direction and angle. It is flexible in movement and convenient to operate. The robot is equipped with a dual-channel video system for driving and inspection, and has the function of real-time image transmission. At the same time, the forward obstacle avoidance radar can prevent the robot from hitting obstacles, improving the safety of use.



The body of the robot is equipped with a gas sensing module, which can analyze methane (CH4), carbon dioxide (CO2), carbon monoxide (CO), and hydrogen sulfide (H2S) gases at one time.



The controller is small, lightweight, and highly integrated, with functions of robot control and image acquisition. It is a rare full-featured professional inspection robot for narrow and low spaces in the current market.



II. Scope of Application

  • Inspection of vehicle chassis
  • Inspection of the bottoms of large containers, shelves, and shipping containers
  • Inspection of the bottoms of tables and chairs in conference venues
  • Inspection of various other narrow spaces
  • Inspection of hazardous areas



III. Product Features

  1. Multi-gas Detection
    • The omnidirectional robot is equipped with high-sensitive gas sensors, which can detect the concentrations of 4 kinds of gases and monitor the on-site gas environment in real time.
  2. Multi-channel Video Detection
    • There are two cameras, which are convenient for movement and observation.
    • The front camera can observe the front scene, and the top camera can observe the upper scene.
  3. Multi-channel Lighting System
    • There are 2 lighting lamps at the front of the vehicle body, and a circular lighting composed of 8 LED lamps on the top, which can be used for lighting and fill light.
  4. Intelligent Obstacle Avoidance Radar
    • The front is equipped with an obstacle avoidance radar, which can be turned on or off. The obstacle avoidance function is triggered at a distance of 0.5m to effectively prevent collisions.
  5. Long Communication Distance
    • The control distance is more than 60m.
  6. Lightweight and Portable
    • The weight is ≤3.8kg, and a handle is reserved at the tail, which can be easily carried by hand.

IV. Main Technical Indicators



  1. Vehicle Body Parameters:

    1. Operating voltage: 12V;
    2. Maximum movement speed: ≥0.7m/s;
    3. Operating time: ≥4h;
    4. Control distance: ≥60m;
    5. Maximum climbing angle: ≥15°;
    6. Maximum obstacle crossing height: ≥20mm;
    7. Gas detection: The omnidirectional robot is equipped with high-sensitive gas sensors, which can monitor the on-site gas environment in real time and detect CH4, CO2, CO, and H2S gases.
    8. Video detection: There are two cameras, which are convenient for movement and observation. The front camera can observe the front scene, and the top camera can observe the upper scene.
    9. Lighting system: There are 2 lighting lamps at the front of the vehicle body, and a circular lighting composed of 8 LED lamps on the top, which can be used for lighting and fill light.
    10. Obstacle avoidance radar: The front is equipped with an obstacle avoidance radar, which can be turned on or off. The obstacle avoidance function is triggered at a distance of 0.5m to effectively prevent collisions.
    11. Vehicle body protection: Anti-collision devices are equipped at the front and rear to protect the omnidirectional robot from impacts.
    12. Communication distance: The control distance is more than 60m.
    13. Traveling mechanism: The omnidirectional robot adopts Mecanum wheels, which can move omnidirectionally, turn flexibly, and are convenient to operate.
    14. Portability: A handle is reserved at the tail, which can be easily carried by hand.
    15. Battery replaceable: Yes;
    16. Dimensions: 346255125mm;
    17. Weight: 3.8kg;

    4.2 Remote Controller Parameters:

    1. Display screen: 5.5-inch high-definition and high-brightness display screen;
    2. Operating handle: Dual joystick operation;
    3. Battery life: ≥4h;
    4. Wireless remote control distance: ≥60m;

    4.3 Gas Detection

    1. Types of gases detected: CH4, CO2, CO, H2S;
    2. Measurement range and basic error:
      Measurement Category Measurement Range Precision
      CH4 0~100%CH4 0.1%
      CO2 0~5% CO2 0.01%
      CO 0~1000×10-6CO 1ppm
      H2S 0~100×10-6 H2S 0.1ppm
