Fire Fighting Smoke Extraction And Fire Extinguishing Demolition Robot

Product Description

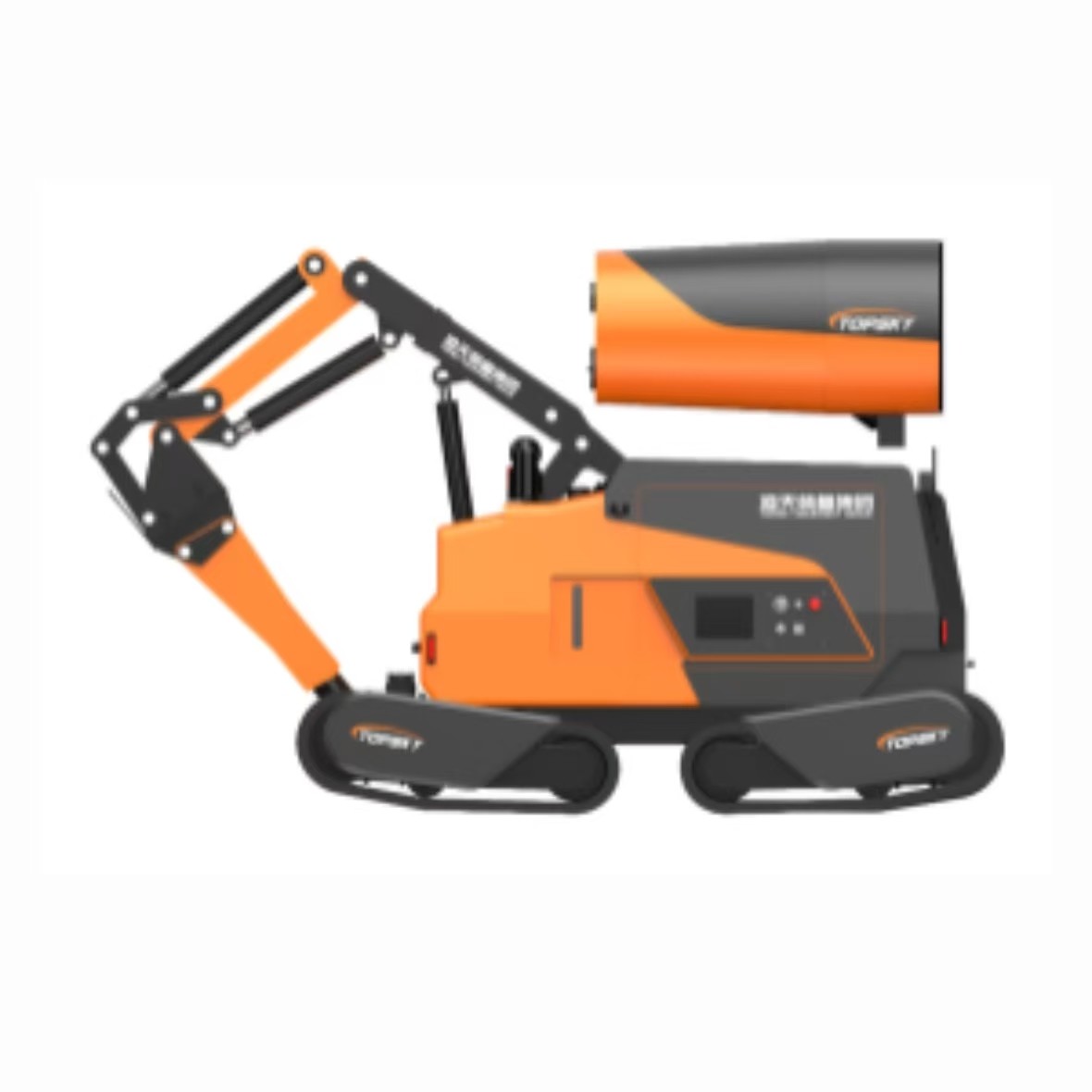

                                                     Fire-fighting smoke extraction and fire extinguishing demolition robot

I. Product Overview

RXR-YM60000GD fire-fighting smoke-exhausting and fire-extinguishing demolition robot uses diesel engine as power source, and uses hydraulic transmission system to drive hydraulic motor to walk, which can replace people in rescue places with special dangers such as toxic (pollution), collapse and strong radiation, and can also remotely control robots to carry out building demolition, concrete drilling and cutting, tunnel excavation, emergency rescue, slag breaking and lining removal of metallurgical furnaces, maintenance of rotary kilns and decommissioning of nuclear facilities, so as to avoid casualties. This product has remote control, panoramic display and other functions, and has super high off-road performance; Integrated hydraulic brake device can effectively park and brake and prevent the whole machine from slipping.

II. Scope of Application

Fire rescue of large petroleum and chemical enterprises

Tunnels, subways and other places that are prone to collapse and need to enter the rescue and fire fighting.

Rescue in an environment with combustible gas and liquid leakage and great explosion possibility.

Rescue in the presence of heavy smoke, toxic and harmful gases, etc.

Rescue in an environment where fire needs to be put out at close range and casualties are likely to occur after people get close.

III. Product Features

1. ★ Remote remote control start:

The remote control button can be adjusted remotely, and the driving speed and water cannon can be controlled freely to meet the actual needs of the site.

2. ★ Four-wheel drive crawler chassis:

Four-wheel-drive crawler chassis is adopted, and the crawler traveling mechanism is movably connected with the chassis frame, and equipped with damping and tensioning devices. The traveling mechanism is driven by four groups of hydraulic motors respectively, which can travel in all terrain, be flexible, turn in situ and have strong off-road ability;

3. ★ Demolition:

The end of the mechanical arm is provided with a joint that can be quickly replaced with other hydraulic breaking tool heads to realize multifunctional operation. Include shovel, hydraulic hammer, hydraulic grab, bucket, disc saw and other corresponding demolition tools.

4. Put out a fire:

It is equipped with imported 80 electrically controlled fire monitor heads, with water flow of 80L/s and two DN80 water supply quick interfaces;

At the same time, it is equipped with a self-spray head, which can effectively cool the car body.

5. ★ Headlights:

Driving lights: driving lights, white lights are installed at the front and rear of the car body, with a voltage of 12V;

Water cannon synchronous lamp: a white light lamp fixed with the gun body is added;

Warning light: the vehicle is equipped with a red flashing light;

Profile lights: 2 in front and 2 in back, showing the outline size of the robot and warning the robot.

6. ★ Control panel:

There is a control panel on one side of the car body, which can monitor the working state and fault diagnosis of the engine. Real-time monitoring of the temperature inside the car, the ambient temperature outside the car, pitch angle, roll and other information.
