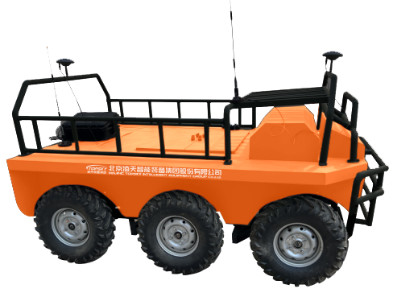

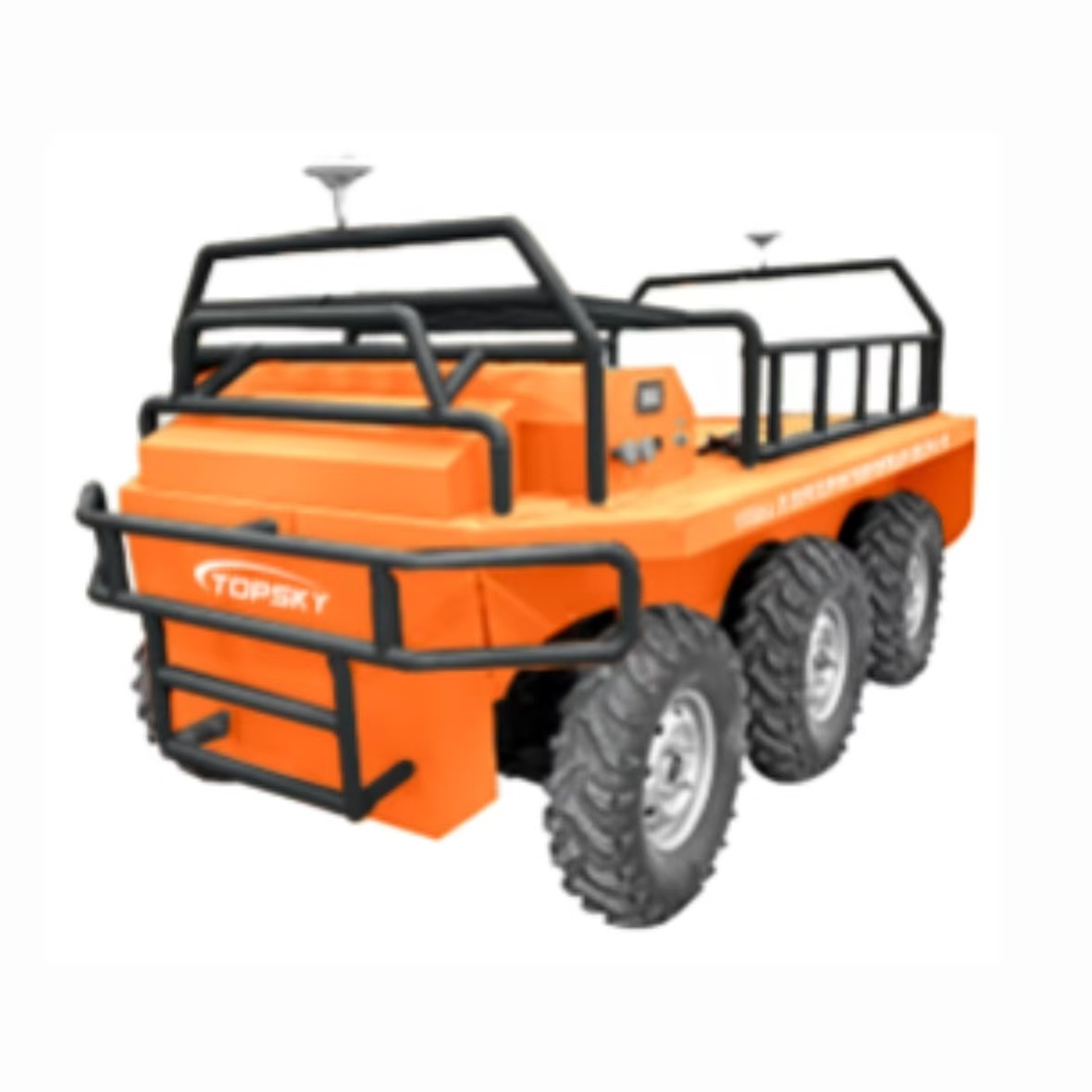

Medium-sized Follower Transport Robot

Product Description

                                                                 Medium-sized Follower Transport Robot

Overview:

Following transport robots are a type of electrically powered loading machinery. They are autonomous mobile robots equipped with various sensors, capable of autonomous obstacle avoidance. They are commonly used in factories, warehouses, hospitals, and other settings, as well as in complex environments such as construction sites, to save labor and improve efficiency. These transport robots can follow a person at low speeds through a handheld device, while sensing their surroundings and avoiding collisions with people or other obstacles.

Features:

1. Name: Medium-sized follow-up transport robot
2. Model: LT-GSYS800
3. Basic function: It is mainly used in indoor and outdoor handling scenarios that require human-machine collaboration, replacing the original trolley function.
4. Protection level: IP65
5. Power: electric, ternary lithium battery
6. Size: 2300x1500x1370mm
7. Max load: 800kg
8 wheelbase: 850mm / 700mm

10. Maximum linear speed: ≥45 km/h (adjustable speed)
11. Maximum full-load climbing: 30%
12. Range: 40 kilometers
13. Front suspension: MacPherson independent suspension
14. Rear suspension: Shock-absorbing leaf spring
15. Control mode: Standard remote controller with long-distance capability; reserved control interface, supports Level 4 autonomous driving or virtual cockpit control
16. Power battery: Lithium-ion battery (110AH, 60V)
17. Starting battery: Lead-acid battery (32Ah, 12V)
Remote control terminal configuration parameters.:
1. Dimensions: mm
2. Weight: kg
3. Working hours: h
4. Basic function: control the movement of the robot forward, backward, steering, etc. One-click switch between follow and remote control modes.
5. Walking control function: through one three-axis industrial rocker, the robot can be operated flexibly to move forward, backward, left and right
