Crawler type mobile drainage device for mine

Product Description

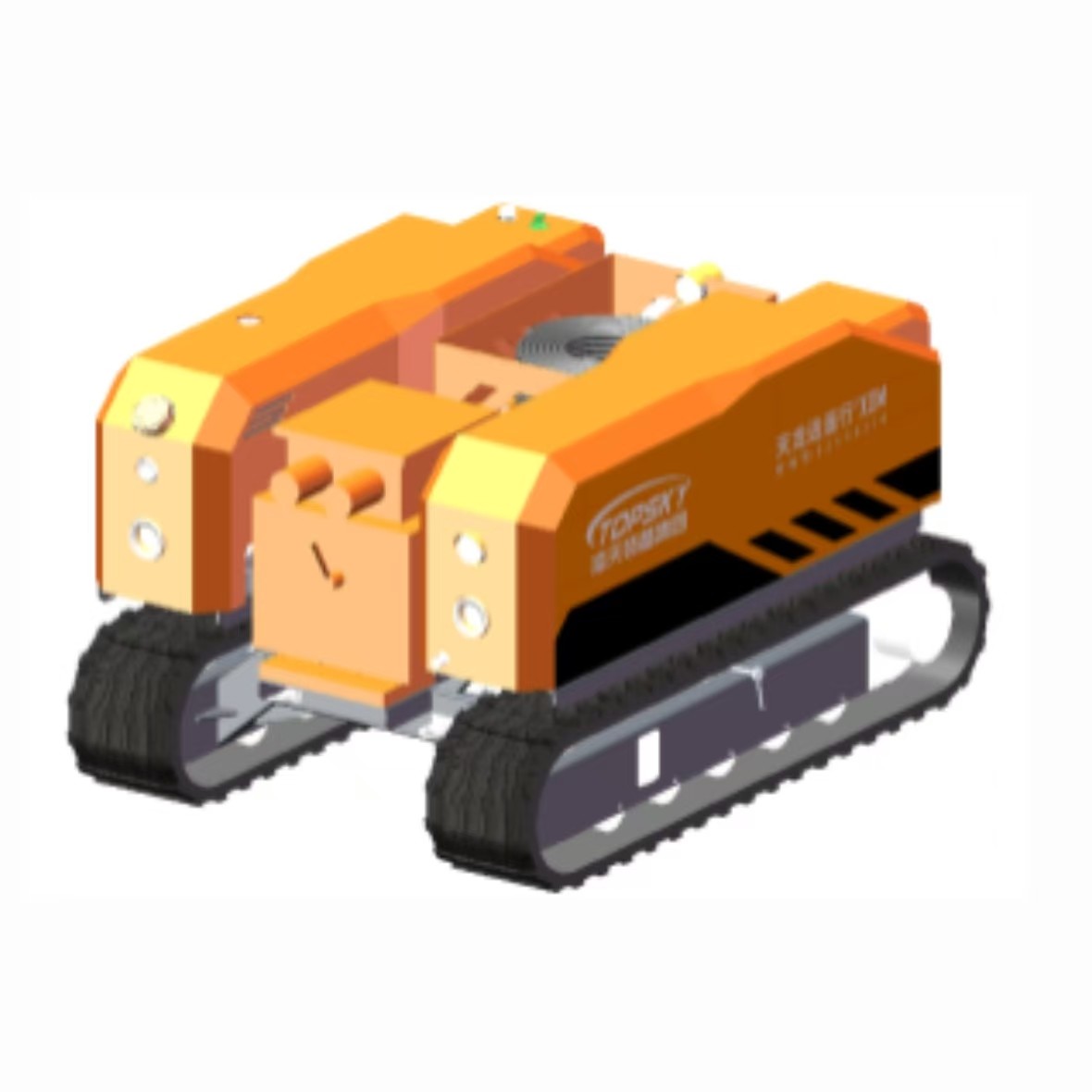

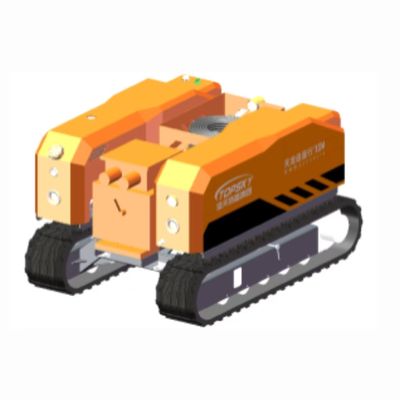

                                                        Crawler type mobile drainage device for mine

Overview:
ZYPS-192 mining crawler mobile drainage device uses lithium battery + mining DC motor as hydraulic system power, except for drainage all actions are driven by hydraulic system; The drainage pump is powered by an external power supply. Use of remote wireless control/body control. Submersible mine drainage device is mainly used for mine flood rescue, mine and other places with explosion-proof requirements of water emergency treatment. Using this product can achieve rapid flood relief. This product has the characteristics of rapid deployment, easy operation, large displacement, high head and long continuous operation time. Own walking power, waterproof and explosion-proof, diving operations, the main pump using external power supply can achieve long-term uninterrupted drainage operations.


Features:

Meet the safety requirements of coal mine, can work in a class explosion-proof area; Diving operation, remote control operation is simple; Large drainage flow and high lift; Long continuous working time, can be quickly deployed in place, saving a lot of manpower and material resources. It can also adapt to a variety of environments and complex terrain operations, greatly improving the safety factor of rescue personnel and reducing the labor intensity of rescue personnel.

Flow rate: 400m³/h, head 150m;

Tractive force ≥35KN.
5,Self-walking ability:
No external power supply is required for walking, and it can walk more than 2000 meters continuously using its own power supply. Travel speed: 0-2Km/ h, climbing Angle 25°;

Reserve a pair of hydraulic output interfaces, output flow 30L/min; Pressure 14Mpa.
