All terrain ground penetrating radar robot

Minimum Order Quantity :	2	Price :	USD98000/PCS
Delivery Time :	5-8 WEEK DAYS	Payment Terms :	T/T

Place of Origin:	CHINA	Brand Name:	TOPSKY

Product Description

Product Description

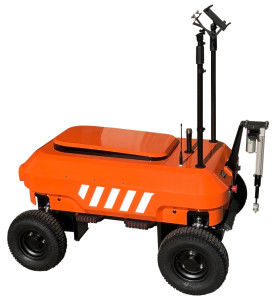

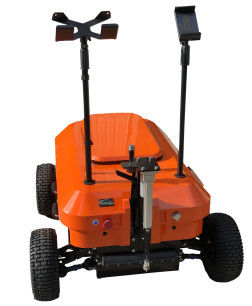

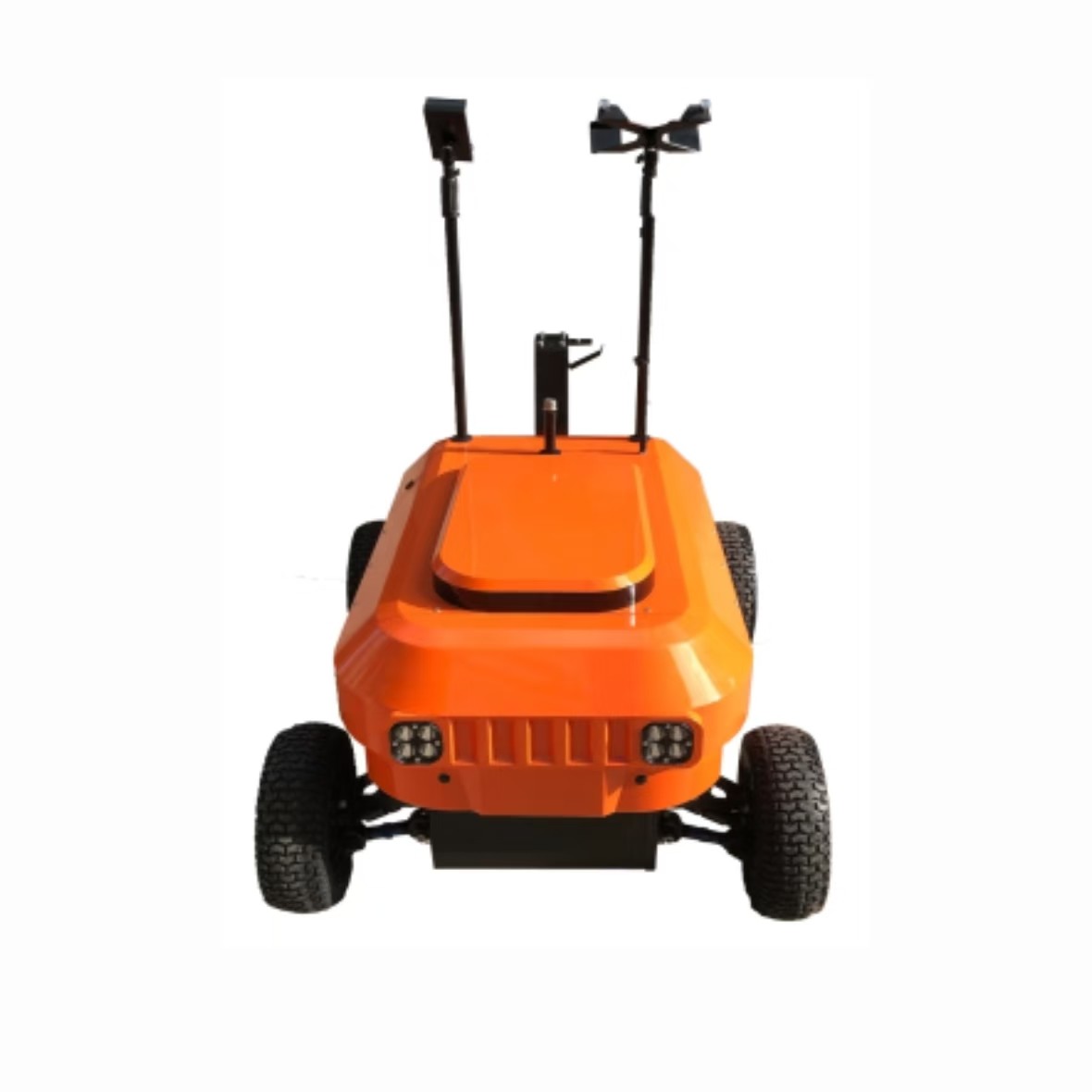

All terrain ground penetrating radar robot

Overview:
The RXR-C11 all terrain ground penetrating radar robot uses lithium battery power as the robot's power source, and remotely controls the robot and its equipment through wireless remote control. The whole machine adopts four-wheel independent drive, four-wheel differential steering, and front and rear double wishbone independent suspension, with IP65 dust and water resistance. It can operate in various complex environments and is equipped with ground penetrating radar and distance measuring wheel equipment. It can be used for geological, quality, defect, and disease detection in complex underground engineering surveys, municipal pipelines, roads, bridges, tunnels, etc., thus replacing humans for efficient operations.

Features:

1,Strong passability in complex road conditions
2,Suitable for variable climate environments
3,Can climb a 35 degree slope
Can climb 30 degree stairs
4,Up to 30 meters away
5,Support multiple antenna hosts for quick switch

Specification:

1. Protection level: Robot machine protection level IP65
2. Power: electric, lithium battery
3. Supply voltage (DC): 48V
4. Size: ≤ 1150mm in length, 930mm in width, and 650mm in height
5. Walking mechanism: wheeled
6. Tire size: 13 * 5-6
7. Tire style: Road tires (replaceable off-road tires, grass tires)
8. Turning diameter: Rotate in place
9. Weight: ≤ 115kg
10. Maximum speed in a straight line: ≥ 1.4m/s, remotely controlled continuously variable transmission
11. Straight running deviation: ≤ 5%
12. Braking distance: ≤ 0.3m
13. Chassis height: 125mm
14. Climbing ability: ≥ 70% (or 35 °) (off-road tires)
15. Vertical obstacle crossing height: ≥ 120mm
16. Water wading depth: ≥ 250mm
17. Continuous walking time: ≥ 3h
18. Wireless remote control distance: ≥ 500m (open space)
19. Load capacity: Maximum load capacity of 30kg heavy object
