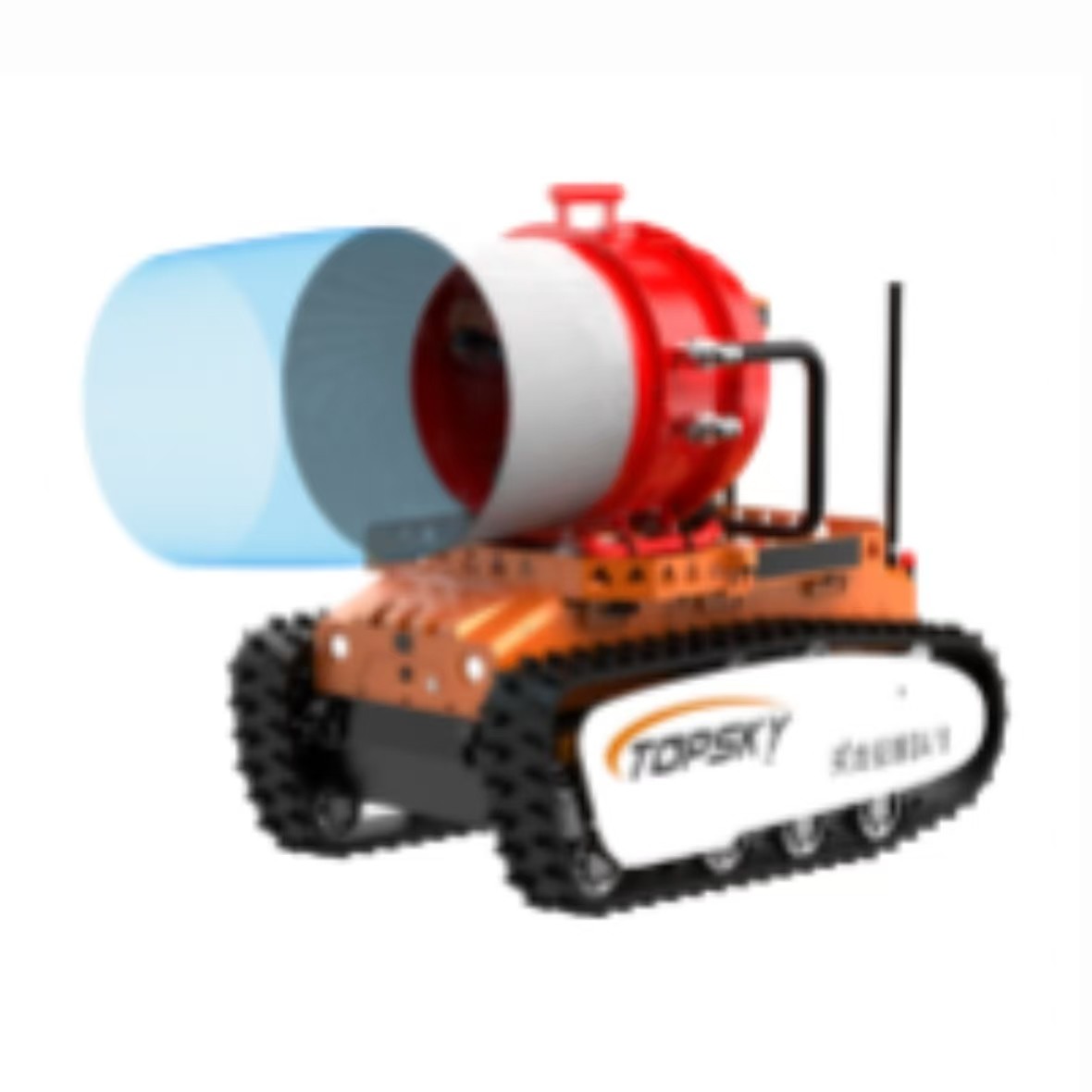

Explosion Proof Fire Fighting Reconnaissance Robot With High-expansion Foam Fire Extinguishing Function

Product Description

Explosion-proof Fire-fighting Reconnaissance Robot with High-expansion Foam Fire Extinguishing Function

1,Product Mix

1. Main functions: The crawler-type explosion-proof robot chassis uses a lithium battery power supply as the power source. It can be remotely controlled by wireless remote control. It has a variety of payload-carrying options, and the in-situ rotation design enables it to operate more flexibly.

Usage scenarios: The explosion-proof design of the whole machine allows it to be used in various large-scale petrochemical enterprises, as well as in places prone to disasters such as oil and gas leakage, toxic gas leakage and explosion, tunnel and subway collapses, including tunnels and subways

2,Scope of Application

Fire rescue in large-scale petroleum and chemical enterprises.

Places such as tunnels and subways that are prone to collapse and require entry for rescue and fire extinguishing.

Rescue in environments where there is a high possibility of explosion due to the leakage of combustible gases and liquids.

Rescue in environments with thick smoke, toxic and harmful gases, etc.

Rescue in environments where close-range fire extinguishing is required and where casualties are likely to occur when personnel approach.

3, Product Features

• Name: Explosion-proof Fire Reconnaissance Robot
• Model: RXR-C12BD
• Basic Functions: Audio-video reconnaissance, toxic and harmful gas reconnaissance, and disaster area environment reconnaissance functions.
• Compliance with Fire Industry Standards: Comply with "GA 892.1-2010 Fire-fighting Robots - Part 1: General Technical Conditions".
• Compliance with Explosion-proof Standards: Comply with GB3836.1 2010 "Explosive Atmospheres - Part 1: Equipment - General Requirements", and meet the national standards of GB3836.1-2010 "Explosive Atmospheres - Part 2: Equipment Protected by a Flameproof Enclosure" and GB3836.4 2010 "Explosive Atmospheres - Part 4: Equipment Protected by Intrinsic Safety".
• ★ Explosion-proof Type: The whole robot is Exd [ib] Ⅱ B T6 Gb (this parameter is consistent with the test report of the National Coal Mine Explosion-proof Safety Product Quality Supervision and Inspection Center), and the lithium battery power device is Ex d IIC T6 Gb (tested by the Testing Center of China Coal Research Institute Co., Ltd.).
• Power Source: Electric, ternary lithium battery.
• ★ Dimensions: ≤1320mm×850mm×1130mm
• ★ Turning Diameter: ≤1425mm
• ★ Weight: ≤480Kg
• ★ Traction Force: ≥3800N
• ★ Maximum Linear Speed: ≥1.81m/s, stepless speed regulation for remote control
• ★ Deviation of Straight-line Running: ≤0.30%
• Braking Distance: ≤0.3m
• ★ Climbing Ability: ≥83.91% (or 40°)
• Obstacle-crossing Height: ≥240mm
• Side Inclination Stability Angle: Stable at 35 degrees
• ★ Wading Depth: ≥500mm
• Continuous Walking Time: 2h
• Reliable Working Time: Pass the 16-hour continuous stability and reliability test.
• Remote Control Distance: 1100m
• Video Transmission Distance: 1100m
